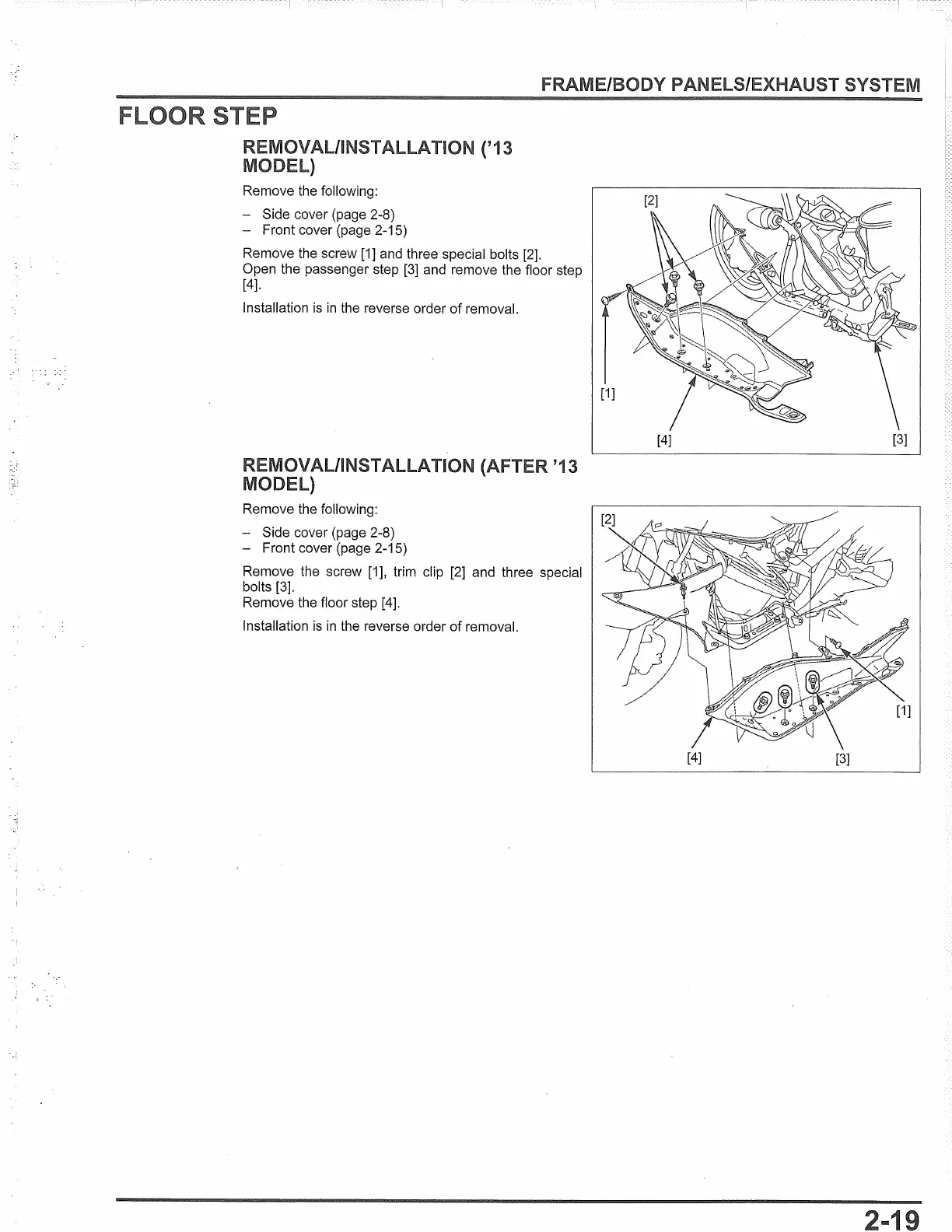

FRAME/BODY PANELS/EXHAUST SYSTEM
REMOVAL/INSTALLATION ('13
MODEL)
Remove the following:
- Side cover (page 2-8)
- Front cover (page 2-15)
Remove the screw [1] and three special bolts [2].
Open the passenger step [3] and remove the floor step
[4].
Installation
is
in
the reverse order
of
removal.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the following:
- Side cover (page 2-8)
- Front cover (page 2-15)
Remove the screw [1], trim clip [2] and three special
bolts [3].
Remove the floor step [4].
Installation
is
in
the reverse order
of
removal.
[4]
[3]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
