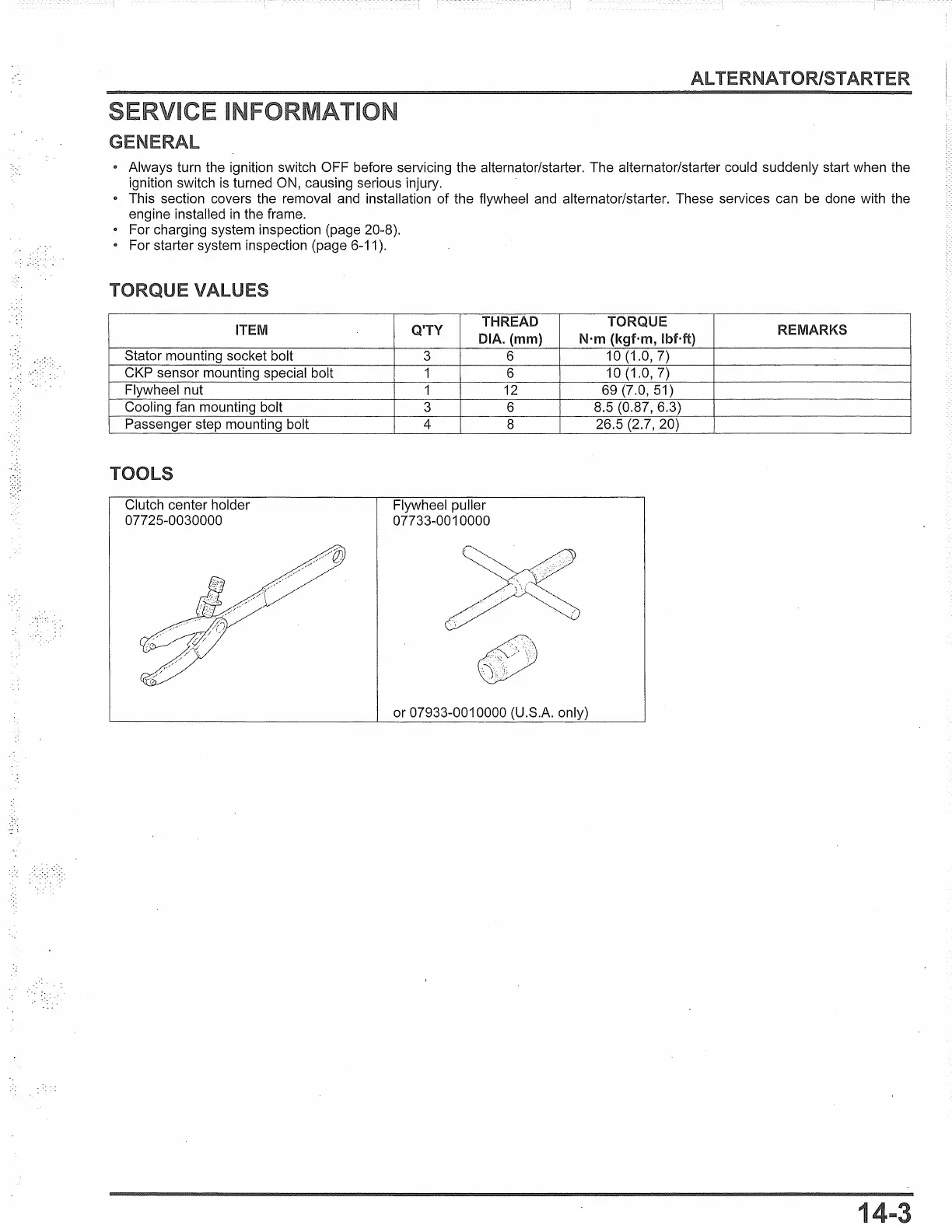

ALTERNATOR/STARTER
GENERAL
• Always turn the ignition switch OFF before servicing the alternator/starter. The alternator/starter could suddenly start when the
ignition switch is turned ON, causing serious injury.
• This section covers the removal and installation of the flywheel and alternator/starter. These services can be done with the
engine installed
in the frame.
• For charging system inspection (page 20-8).
• For starter system inspection (page 6-11 ).
TORQUE VALLI
ITEM
Stator mounting socket bolt
CKP sensor mounting special bolt
Flywheel nut
Cooling fan mounting bolt
Passenger step mounting bolt
TOOLS
Clutch center holder
07725-0030000
/1}
"'#/
.
......- /-,\
,//,/
Q'TY
THREAD
DIA. (mm)
3 6
1 6
1
12
3
6
4 8
Flywheel puller
07733-0010000
TORQUE
N·m (kgf·m, lbMt)
10(1.0,7)
10(1.0,7)
69 (7.0, 51)
8.5 (0.87, 6.3)
26.5 (2.7, 20)
or 07933-0010000 (U.S.A. only)
REMARKS
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
