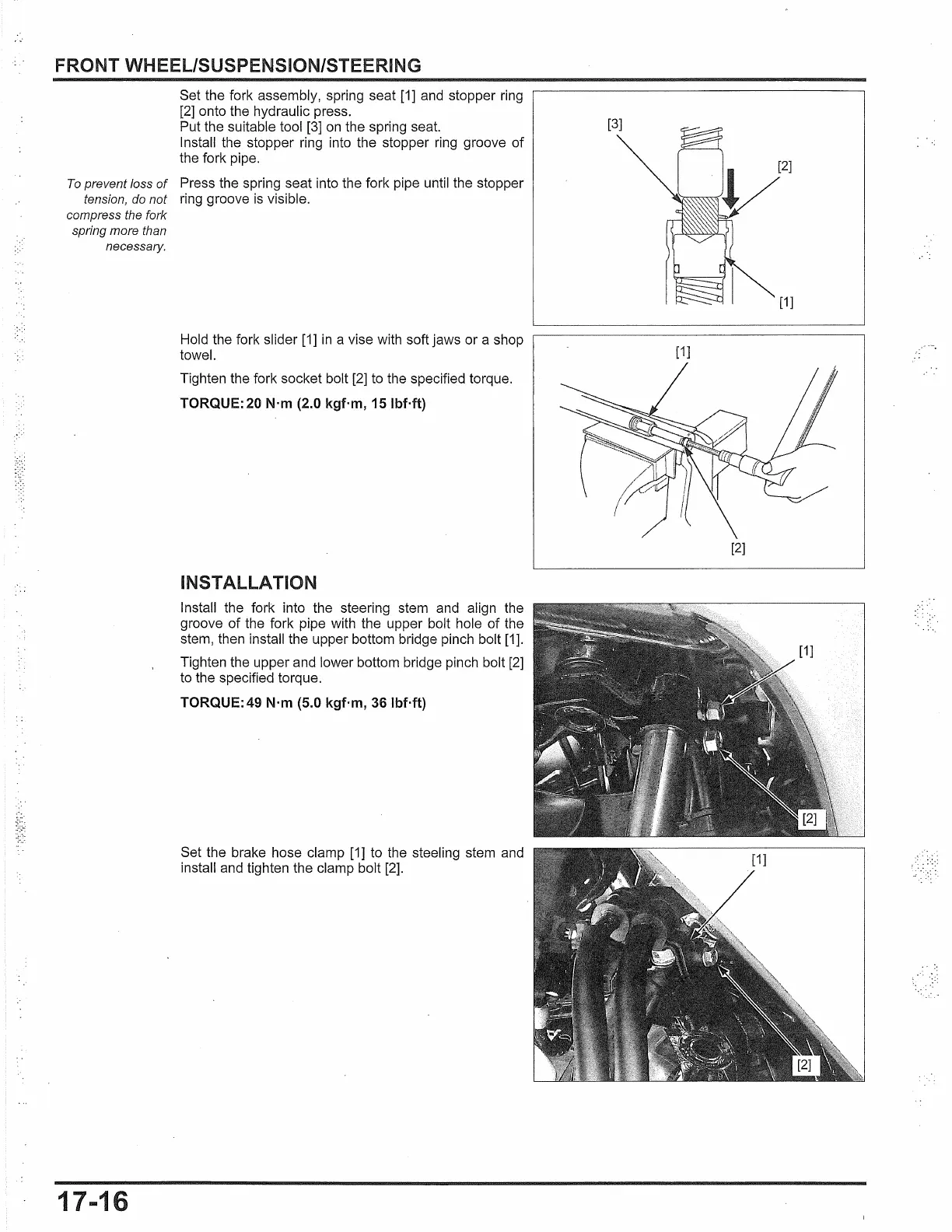

FRONT WHEEL/SUSPENSION/STEERING
Set the fork assembly, spring seat [1] and stopper ring
[2] onto the hydraulic press.
Put the suitable tool [3]
on the spring seat.
Install the stopper ring into the stopper ring groove of
the fork pipe.
To prevent loss of Press the spring seat into the fork pipe until the stopper
tension, do not ring groove is visible.
compress the fork
spring more than
necessary.
17-16
Hold the fork slider [1] in a vise with soft jaws or a shop
towel.
Tighten the fork socket bolt [2] to the specified torque.
TORQUE:20 N·m (2.0 kgf·m, 15 lbMt)
INSTALLATION
Install the fork into the steering stem and align the
groove of the fork pipe with the upper bolt hole of the
stem, then install the upper bottom bridge pinch bolt [1].
Tighten the upper and lower bottom bridge pinch bolt
[2]
to the specified torque.
TORQUE:49 N·m (5.0 kgf·m, 36 lbMt)
Set the brake hose clamp
[1] to the steeling stem and
install and tighten the clamp bolt [2].
[3]
[1]
[2]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
