Honda PCX150 2014 User Manual

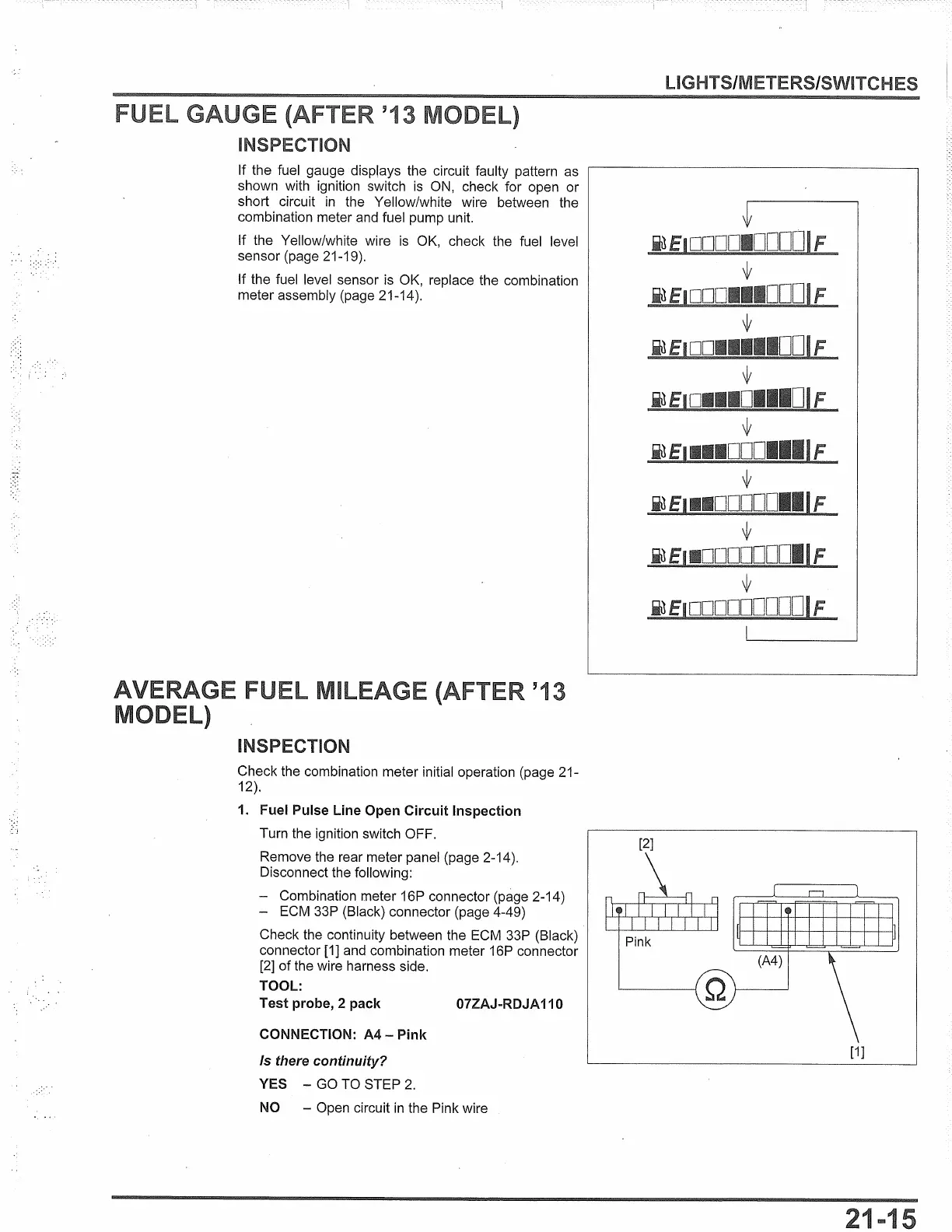

INSPECTION
If the fuel gauge displays the circuit faulty pattern
as
shown with ignition switch
is
ON,
check for open or
short circuit
in
the Yellow/white wire between the
combination meter and fuel pump unit.
If the Yellow/white wire
is
OK,
check the fuel level
sensor (page 21-19).
If the fuel level sensor
is
OK, replace the combination
meter assembly (page 21-14).
'13
INSPECTION
Check the combination meter initial operation (page 21-
12).
1. Fuel Pulse Line Open Circuit Inspection
Turn the ignition switch OFF.
Remove the rear meter panel (page 2-14).
Disconnect the following:
- Combination meter 16P connector (page 2-14)
- ECM 33P (Black) connector (page 4-49)
Check the continuity between the ECM 33P (Black)
connector
[1]
and
combination meter 16P connector
[2]
of
the wire harness side.
TOOL:
Test probe, 2 pack
CONNECTION:
A4
- Pink
Is there continuity?
YES -
GO TO STEP
2.
07ZAJ-RDJA110
NO -
Open circuit
in
the Pink wire
LIGHTS/METERS/SWITCH ES
t
i1
DDDDDD000
F
[2]
Pink
[1]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
