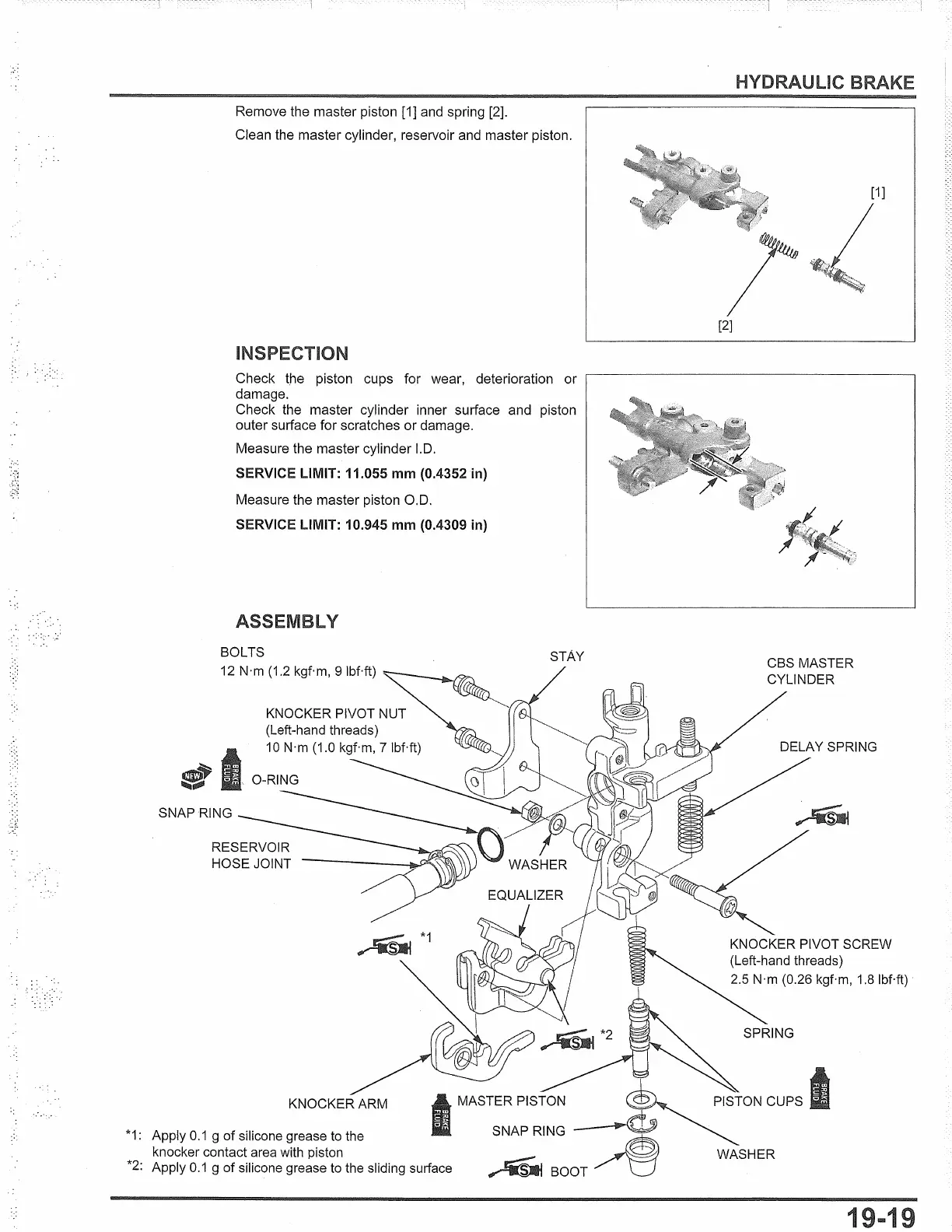

Remove the master piston [1] and spring [2].
Clean the master cylinder, reservoir and master piston.
Check the piston cups for wear, deterioration
or
damage.
Check the master cylinder inner surface and piston
outer surface for scratches
or
damage.
Measure the master cylinder I.D.
SERVICE LIMIT: 11.055 mm (0.4352 in)
Measure the master piston
0.0.
SERVICE LIMIT: 10.945 mm (0.4309 in)
HYDRAULIC
[2]
ASSEMBLY
BOLTS
STAY
CBS MASTER
CYLINDER
SNAP RING
RESERVOIR
HOSE JOINT
KNOCKER ARM
*1: Apply
0.1
g
of
silicone grease to the
knocker contact area with piston
*2:
Apply
0.1
g
of
silicone grease to the sliding surface
MASTER PISTON
~
~ON
CUPS
SNAPRING~
~
~.
_ei
WASHER
~BOOT/'U
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
