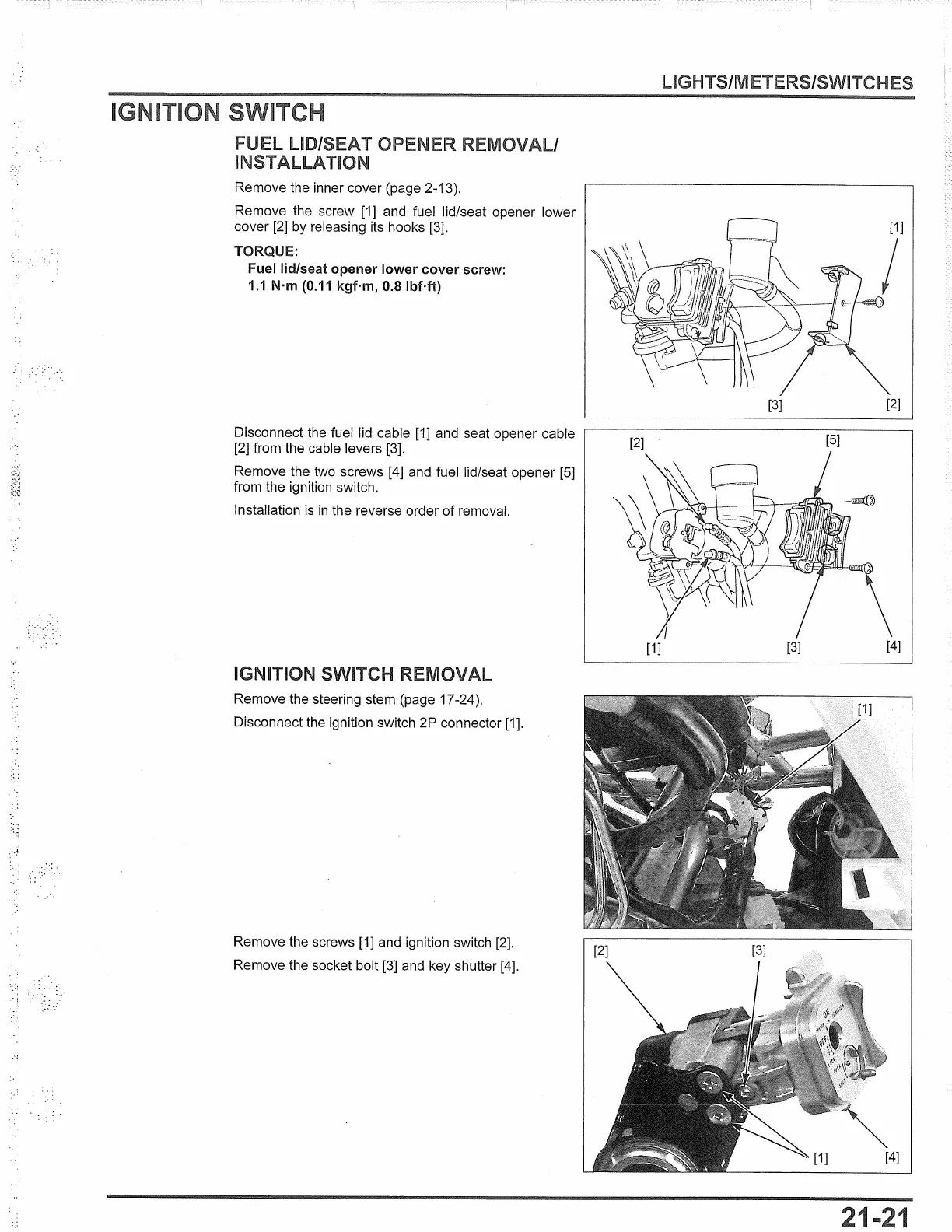

FUEL LID/SEAT
INSTALLATION
Remove the inner cover (page 2-13).
REMOVAL/
Remove the screw
[1]
and fuel lid/seat opener lower
cover
[2]
by releasing its hooks [3].
TORQUE:
Fuel lid/seat opener lower cover screw:
1.1
N·m (0.11 kgf·m, 0.8
lbHt)
Disconnect the fuel lid cable
[1]
and seat opener cable
[2] from the cable levers [3].
Remove the
two
screws [4] and fuel lid/seat opener [5]
from the ignition switch.
Installation
is
in
the reverse order
of
removal.
IGNITION SWITCH REMOVAL
Remove the steering stem (page 17-24
).
Disconnect the ignition switch 2P connector [1].
Remove the screws
[1]
and ignition switch
[2].
Remove the socket bolt [3] and key shutter [4].
LIGHTS/METERS/SWITCH
ES
[3]
[2]
[5]
[3]
[2]
[3]
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
