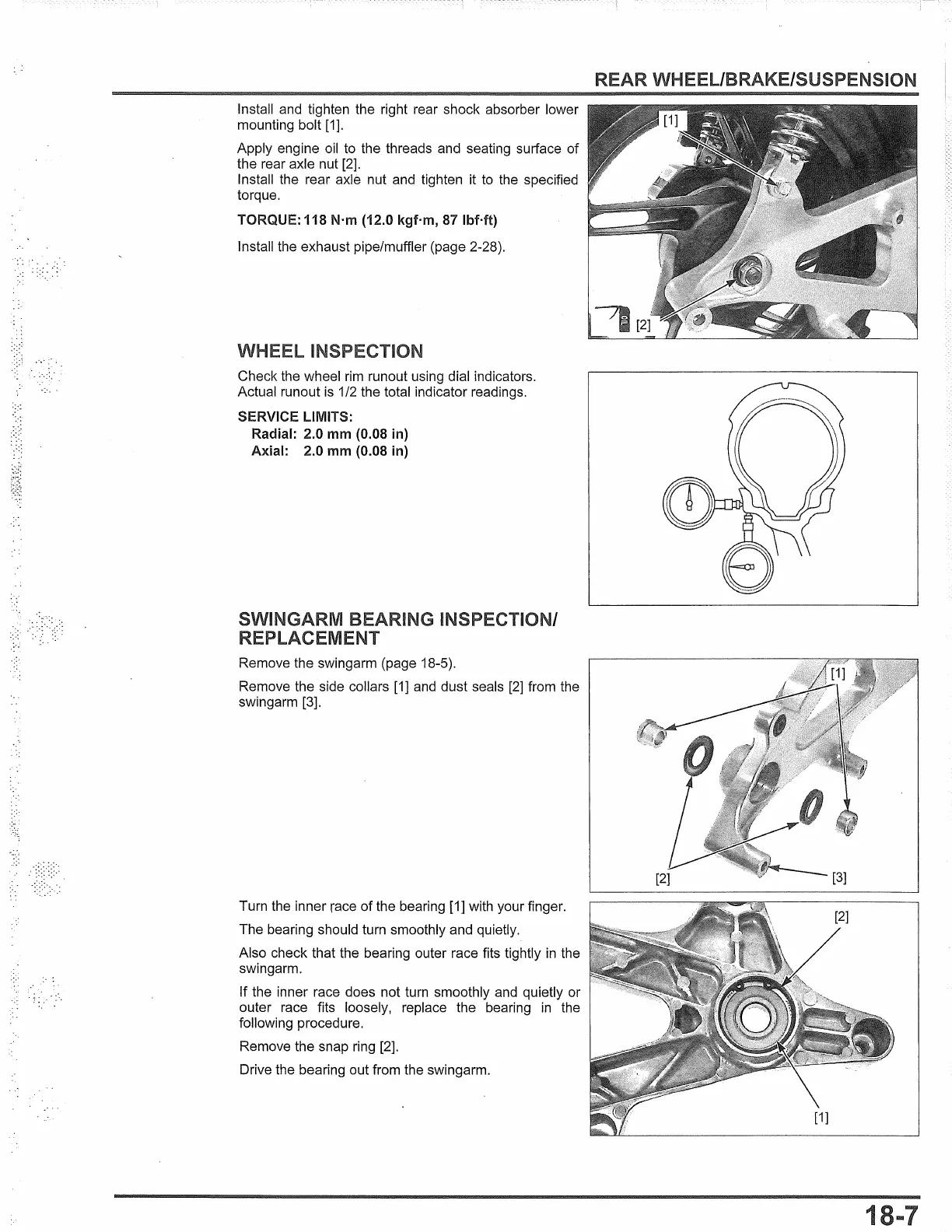

Install and tighten the right rear shock absorber lower
mounting bolt [1].
Apply engine oil to the threads and seating surface of
the rear axle nut [2].
Install the rear axle nut and tighten it to the specified
torque.
TORQUE: 118 N·m (12.0 kgf-m,
87 lbHt)
Install the exhaust pipe/muffler (page 2-28).
INSPECTION
Check the wheel rim runout using dial indicators.
Actual runout
is 1/2 the total indicator readings.
SERVICE LIMITS:
Radial: 2.0
mm (0.08 in)
Axial: 2.0
mm (0.08 in)
SWINGARM
REPLACEMENT
INSPECTION/
Remove the swingarm (page 18-5).
Remove the side collars
[1] and dust seals [2] from the
swingarm [3].
Turn the inner race of the bearing [1] with your finger.
The bearing should turn smoothly and quietly.
Also check that the bearing outer race fits tightly
in the
swingarm.
If the inner race does not turn smoothly and quietly or
outer race fits loosely, replace the bearing
in the
following procedure.
Remove the snap ring [2].
Drive the bearing out from the swingarm.
REAR WHEEL/BRAKE/SUSPENSION
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
