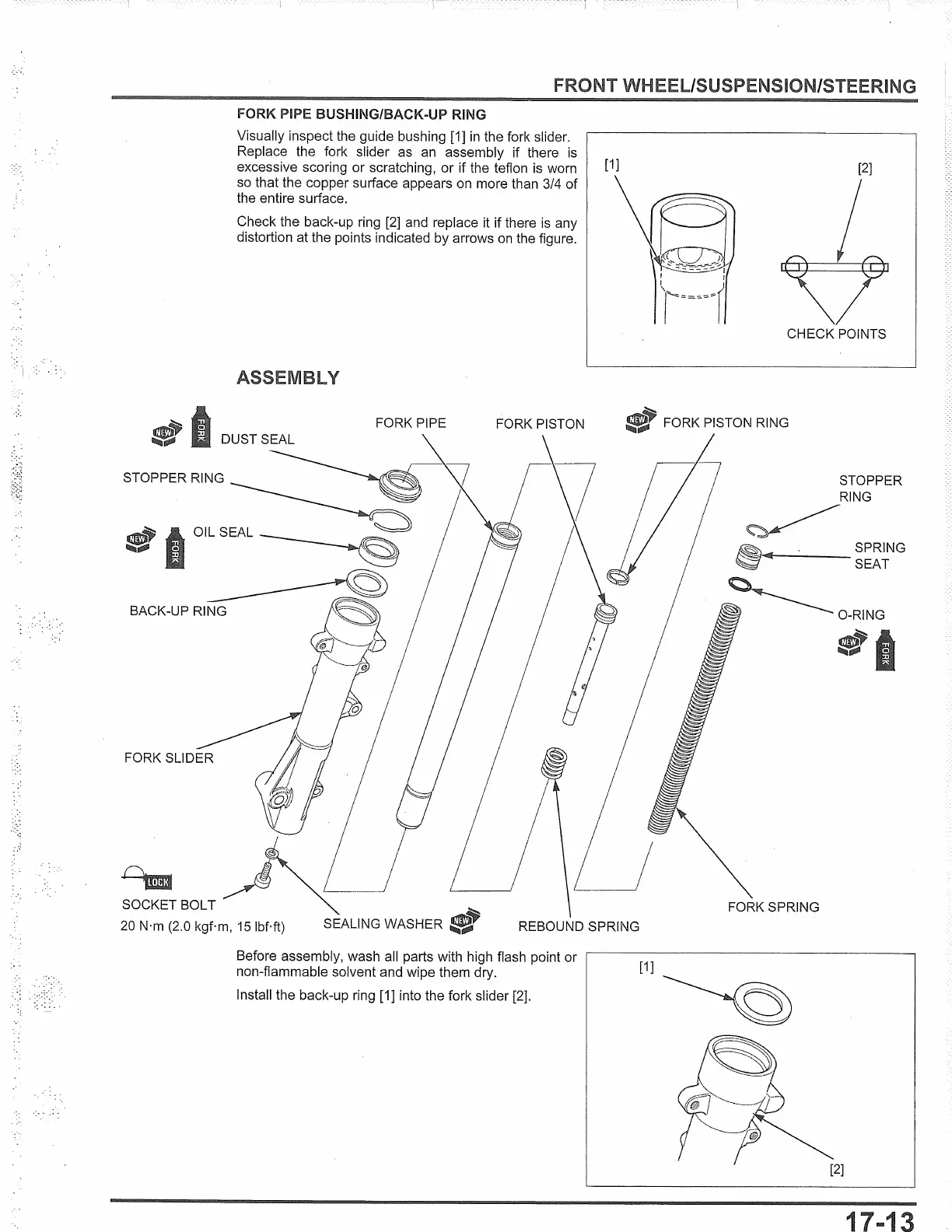

FRONT WHEEL/SUSPENSION/STEERING
FORK PIPE BUSHING/BACK-UP RING
Visually inspect the guide bushing [1]
in
the fork slider.
Replace the fork slider as
an
assembly if there is
excessive scoring or scratching,
or
if the teflon
is
worn
[1]
so
that the copper surface appears on more than 3/4
of
the entire surface.
Check the back-up ring [2] and replace it if there
is
any
distortion at the points indicated by arrows
on
the figure.
ASSEMBLY
FORK
PIPE
DUST
SEAL
STOPPER
RING~\]
OILSEAL~
~
~'"'=-'-"
BACK-UP RING
\~
20
N·m (2.0 kgf·m,
15
lbf·ft)
SEALING
WASHER
FORK
PISTON
REBOUND
SPRING
Before assembly, wash all parts with high flash point or
non-flammable solvent and wipe them dry.
Install the back-up ring [1] into the fork slider [2].
[1]
[2]
CHECK
POINTS
FORK
PISTON RING
STOPPER
RING
~
FORK
SPRING
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
