Honda PCX150 2014 User Manual

·.·:
···.·

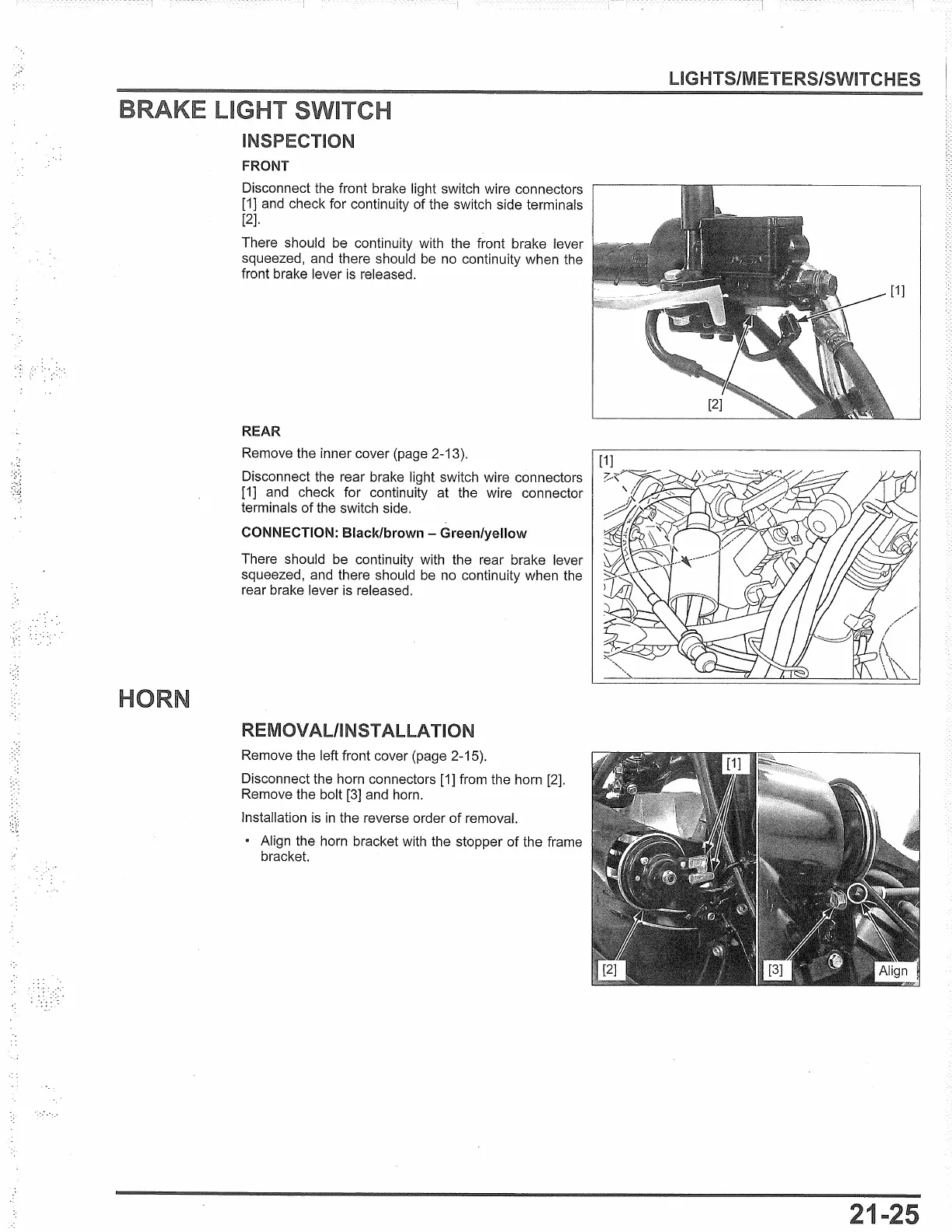

INSPECTION
FRONT
Disconnect the front brake light switch wire connectors
[1]
and check for continuity of the switch side terminals
[2].
There should
be
continuity with the front brake lever
squeezed, and there should
be
no
continuity when the
front brake lever
is
released.
REAR
Remove the inner cover (page 2-13).
Disconnect the rear brake light switch wire connectors
[1]
and
check for continuity at the wire connector
terminals of the switch side.
CONNECTION: Black/brown - Green/yellow
There should
be
continuity with the rear brake lever
squeezed, and there should
be
no
continuity when the
rear brake lever
is
released.
REMOVAL/INSTALLATION
Remove the left front cover (page 2-15).
Disconnect the horn connectors
[1]
from the horn [2].
Remove the bolt
[3]
and horn.
Installation
is
in
the reverse order of removal.
Align the horn bracket with the stopper of the frame
bracket.
LIGHTS/METERS/SWITCHES

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
