Honda PCX150 2014 User Manual

AL
TERNA
TOR/ST
ARTER
REMOVAL

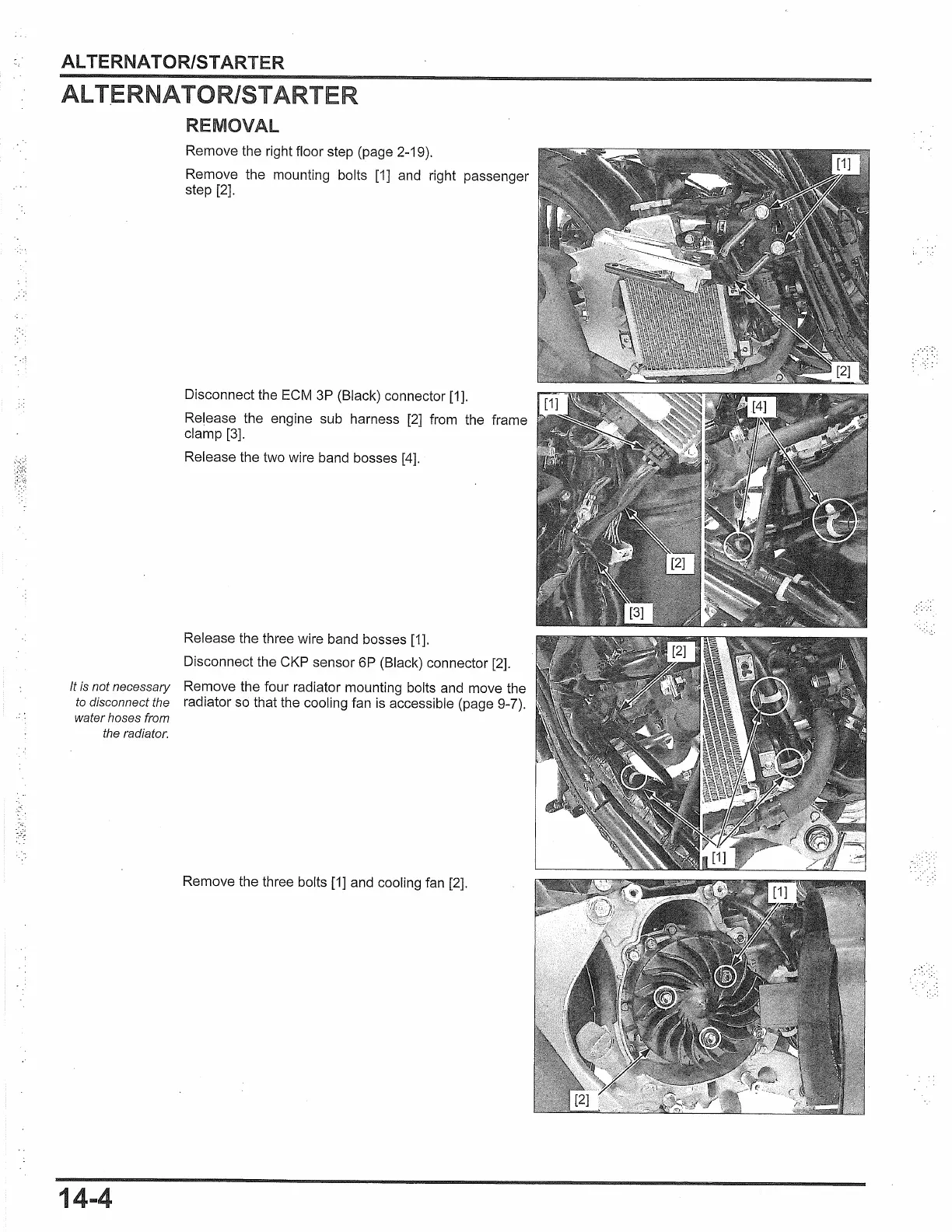

Remove the right floor step (page 2-19).
Remove the mounting bolts [1] and right passenger
step [2].
Disconnect the
ECM
3P
(Black) connector
[1
].
Release the engine sub harness
[2]
from the frame
clamp [3].
Release the two wire band bosses
[4].
Release the three wire band bosses
[1].
Disconnect the CKP sensor 6P (Black) connector [2].
It is not necessary
Remove the four radiator mounting bolts and move the
to
disconnect the
radiator so that the cooling fan
is
accessible (page 9-7).
water hoses from
the radiator.
Remove the three bolts
[1]
and cooling fan [2].
14-4

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
