FRONT WHEEL/SUSPENSION/STEERING
17-12

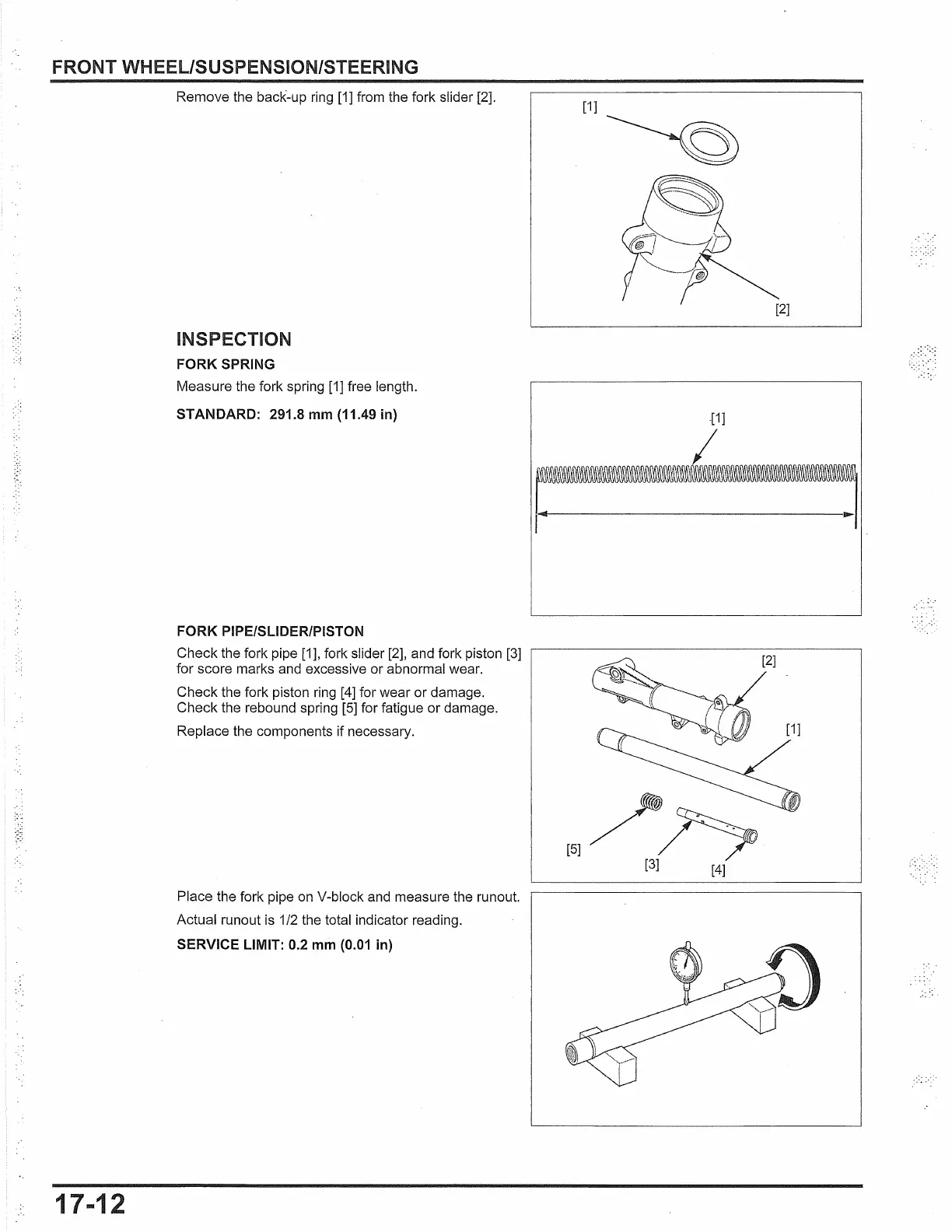

Remove the back-up ring [1] from the fork slider [2].
INSPECTION
FORK SPRING
Measure the fork spring [1] free length.
STANDARD: 291.8 mm (11.49 in}
FORK PIPE/SLIDER/PISTON
Check the fork pipe [1], fork slider [2], and fork piston [3]
for score marks and excessive or abnormal wear.
Check the fork piston ring [4] for wear or damage.
Check the rebound spring
[5] for fatigue or damage.
Replace the components if necessary.
Place the fork pipe
on V-block and measure the runout.
Actual runout
is 1/2 the total indicator reading.
SERVICE LIMIT: 0.2 mm (0.01 in}
[1]
.[1]
I
~
I ~.
[5]/77
[3] [4]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
