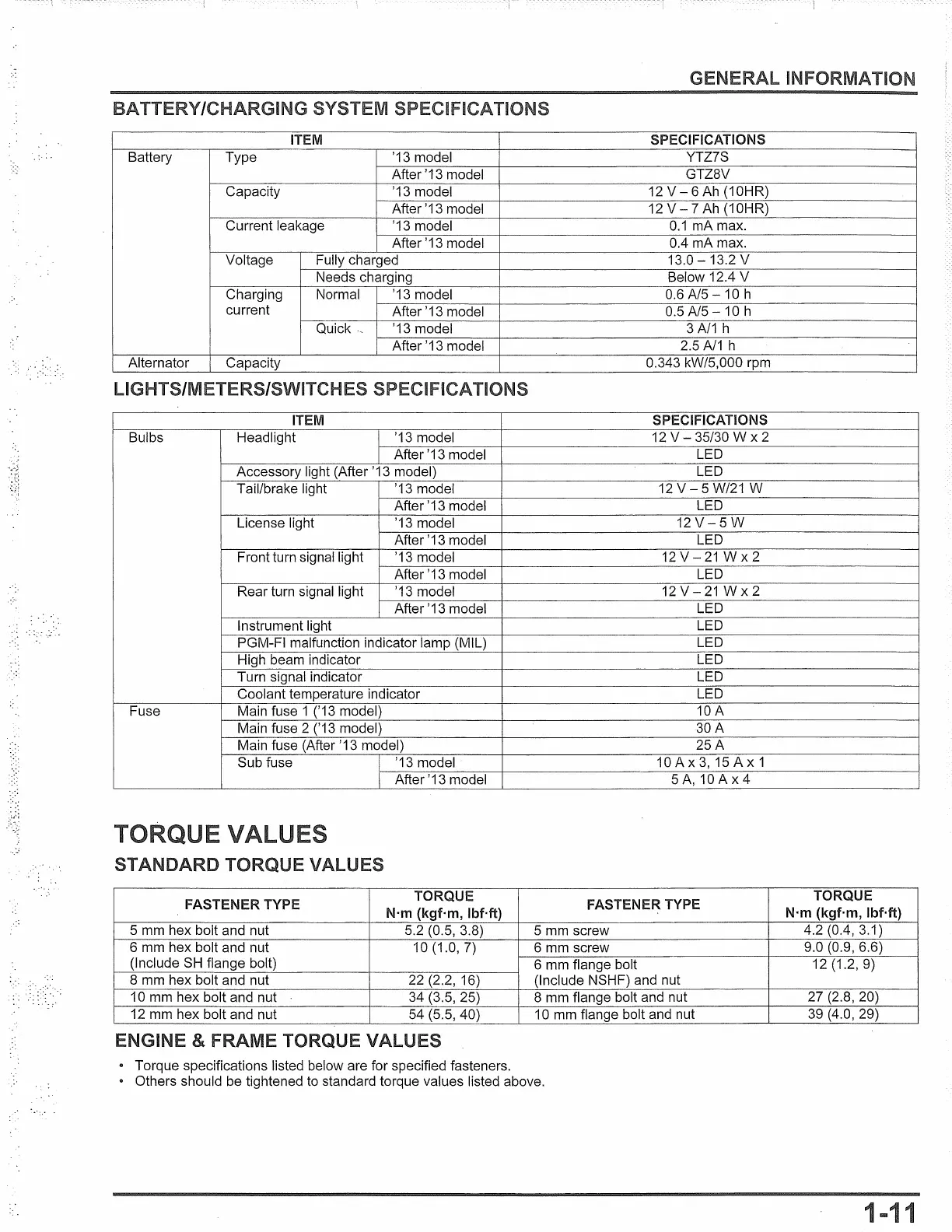

INFORMATION
SYSTEM SPECIFICATIONS
ITEM
SPECIFICATIONS
Battery Type '13 model YTZ7S
After '13 model
GTZ8V
Capacity '13 model 12
V-
6 Ah (10HR)
After '13 model
12
V-
7 Ah (10HR)
Current leakage '13 model
0.1
mA max.
After '13 model
0.4 mA max.
Voltage Fully charged
13.0-13.2
V
Needs charging
Below 12.4 V
Charging Normal '13 model 0.6
A/5-10
h
current
After '13 model
0.5
A/5-10
h
Quick ,
'13 model 3
A/1
h
After '13 model
2.5
A/1
h
Alternator
Capacity
0.343 kW/5,000 rpm
LIGHTS/METERS/SWITCHES SPECIFICATIONS
ITEM
SPECIFICATIONS
Bulbs Headlight '13 model
12 V - 35/30 W
X 2
After '13 model
LED
Accessory light (After '13 model)
LED
Tail/brake light '13 model
12
V-5
W/21 W
After'
13 model
LED
License light '13 model
12
V-5
W
After '13 model
LED
Front turn signal light '13 model
12V-21
Wx2
After '13 model
LED
Rear turn signal light
'13 model
12V-21
Wx2
After '13 model LED
Instrument light
LED
PGM-FI malfunction indicator lamp (MIL)
LED
High beam indicator LED
Turn signal indicator
LED
Coolant temperature indicator
LED
Fuse Main fuse 1
('
13
model)
10 A
Main fuse 2 ('13 model)
30A
Main fuse (After '13 model)
25A
Sub fuse '13 model
10
AX
3, 15
AX
1
After '13 model
5
A,
10
Ax
4
STANDARD TORQUE VALUES
FASTENER TYPE
TORQUE
FASTENER TYPE
TORQUE
N·m (kgf·m,
lbMt)
N·m (kgf·m,
lbMt)
5 mm hex bolt and nut
5.2 (0.5, 3.8) 5 mm screw
4.2 (0.4, 3.1)
6 mm hex bolt and nut
10 (1.0, 7) 6 mm screw
9.0 (0.9, 6.6)
(Include SH flange bolt)
6 mm flange bolt
12 (1.2,
9)
8 mm hex bolt and nut
22 (2.2, 16)
(Include NSHF) and nut
1 O mm hex bolt and nut 34 (3.5, 25) 8 mm flange bolt and nut
27 (2.8, 20)
12 mm hex bolt and nut
54 (5.5, 40) 10 mm flange bolt and nut
39 (4.0, 29)
ENGINE & FRAME TORQUE VALUES
• Torque specifications listed below are for specified fasteners.
• Others should be tightened to standard torque values listed above.
1 1
