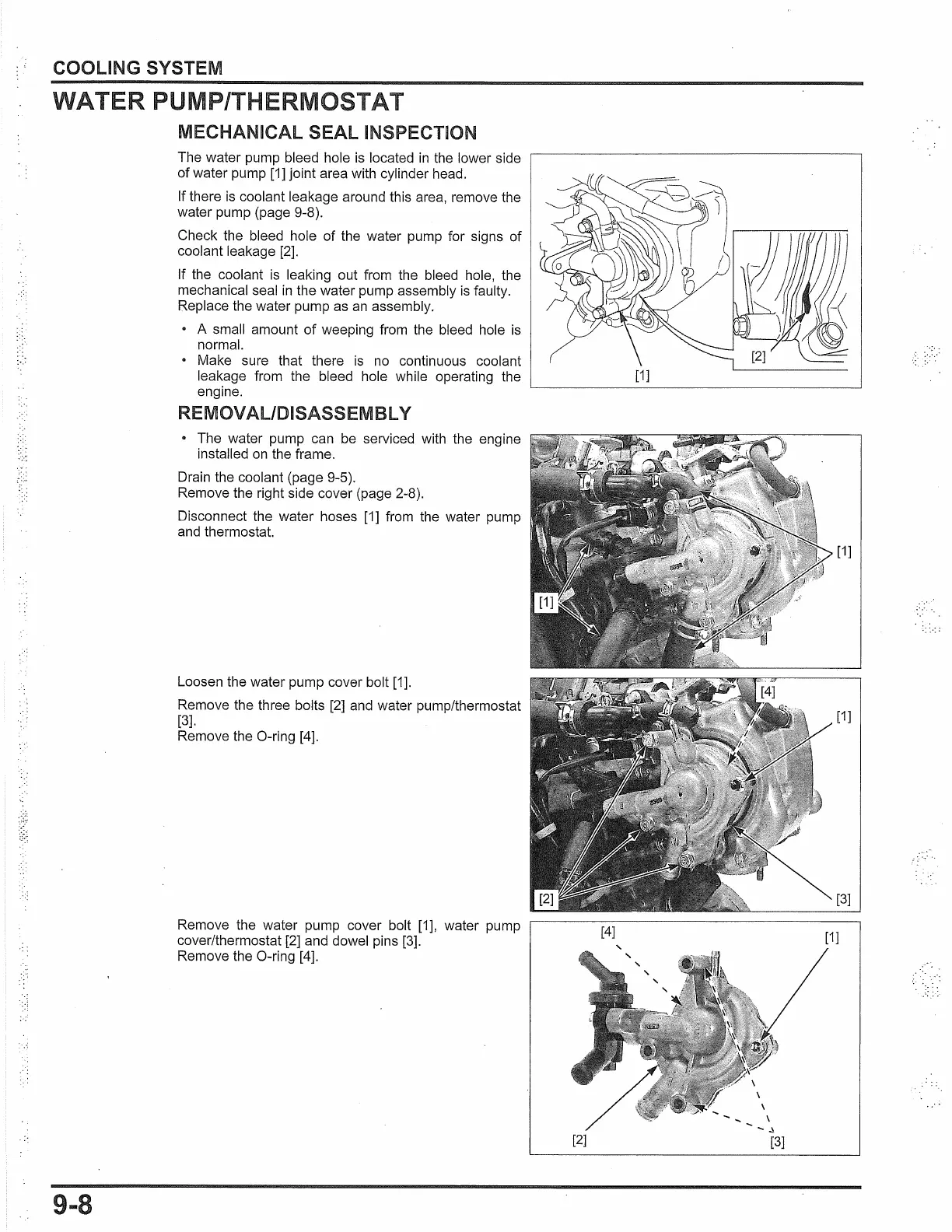

COOLING SYSTEM
WATER PUMP/THE
MECHANICAL
SEAL
INSPECTION
The water pump bleed hole
is
located
in
the lower side
of water pump
[1]
joint area with cylinder head.
If there
is
coolant leakage around this area, remove the
water pump (page 9-8).
Check the bleed hole of the water pump for signs of
coolant leakage
[2].
If the coolant
is
leaking out from the bleed hole, the
mechanical seal
in
the water pump assembly is faulty.
Replace the water pump
as
an
assembly.
• A small amount of weeping from the bleed hole
is
normal.
Make sure that there
is
no
continuous coolant
leakage from the bleed hole while operating the
engine.
~---------------~
9-8
REMOVAL/DISASSEMBLY
• The water pump can
be
serviced with the engine
installed
on
the frame.
Drain the coolant (page 9-5).
Remove the right side cover (page 2-8).
Disconnect the water hoses
[1]
from the water pump
and
thermostat.
Loosen the water pump cover bolt
[1].
Remove the three bolts
[2]
and
water pump/thermostat
[3].
Remove the 0-ring [4].
Remove the water pump cover bolt
[1],
water pump
cover/thermostat
[2]
and dowel pins
[3].
Remove the 0-ring [4].
[1]
[1]
[3]
[4]
[2]
[3]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
