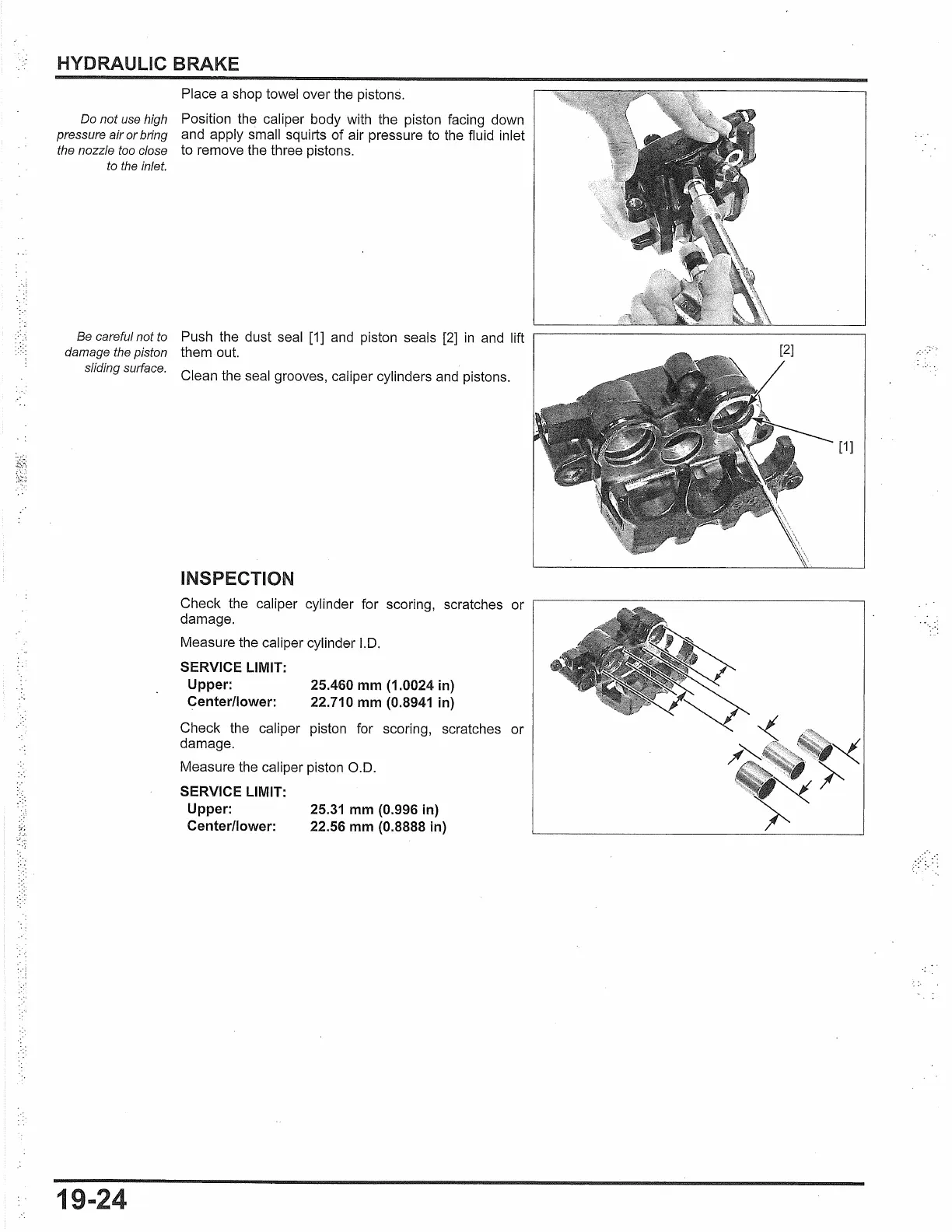

HYDRAULIC BRAKE
Place a shop towel over the pistons.
Do
not
use high
Position the caliper body with the piston facing down
pressure
air
or
bring
and apply small squirts of air pressure
to
the fluid inlet
the nozzle too close
to remove the three pistons.
to the inlet.
Be careful not to
Push the dust seal
[1]
and
piston seals
[2]
in
and lift
damage the piston
them out.
sliding surface.
Clean the seal grooves, caliper cylinders
and
pistons.
19-24
INSPECTION
Check the caliper cylinder for scoring, scratches or
damage.
Measure the caliper cylinder I.D.
SERVICE LIMIT:
Upper:
Center/lower:
25.460 mm (1.0024 in)
22.710 mm (0.8941 in)
Check the caliper piston for scoring, scratches or
damage.
Measure the caliper piston O.D.
SERVICE
LIMIT:
Upper:
Center/lower:
25.31 mm (0.996 in)
22.56 mm (0.8888 in)
[1]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
