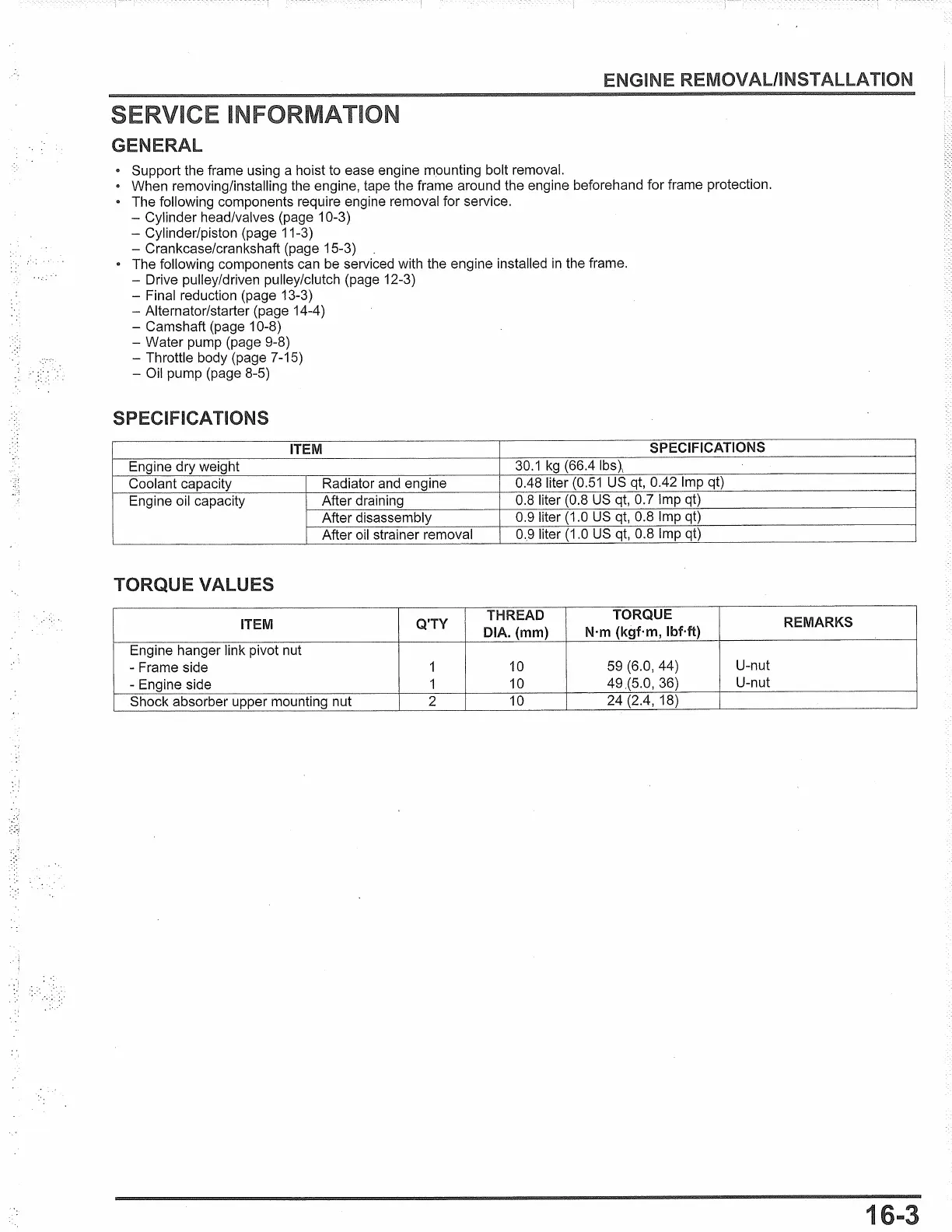

ENGINE REMOVAL/INSTALLATION
GENERAL
• Support the frame using a hoist to ease engine mounting bolt removal.
• When removing/installing the engine, tape the frame around the engine beforehand for frame protection.
• The following components require engine removal for service.
- Cylinder head/valves (page 10-3)
- Cylinder/piston (page 11-3)
- Crankcase/crankshaft (page 15-3)
• The following components can be serviced with the engine installed
in
the frame.
- Drive pulley/driven pulley/clutch (page 12-3)
- Final reduction (page 13-3)
- Alternator/starter (page 14-4)
- Camshaft (page 10-8)
-
Water
pump (page 9-8)
- Throttle body (page 7-15)
- Oil pump (page 8-5)
SPECIFICATIONS
ITEM
SPECIFICATIONS
Engine dry weight
30.1
kg
(66.4 lbs)
1
Coolant capacity
Radiator and engine
0.48 liter (0.51 US qt, 0.42 Imp qt)
Engine oil capacity
After draining 0.8 liter (0.8 US qt,
0.
7 Imp qt)
After disassembly 0.9 liter (1.0 US qt, 0.8 Imp qt)
After oil strainer removal 0
..
9 liter (1.0 US qt, 0.8 Imp qt)
TORQUE VALUES
ITEM
Q'TY
THREAD TORQUE
DIA. (mm)
N·m (kgf·m,
lbMt)
Engine hanger link pivot nut
- Frame side
1
10 59 (6.0, 44)
U-nut
- Engine side
1
10
49 ,(5.0, 36)
U-nut
Shock absorber upper mounting nut
2 10
24 (2.4, 18)
REMARKS
1
