Honda PCX150 2014 User Manual

:j
I

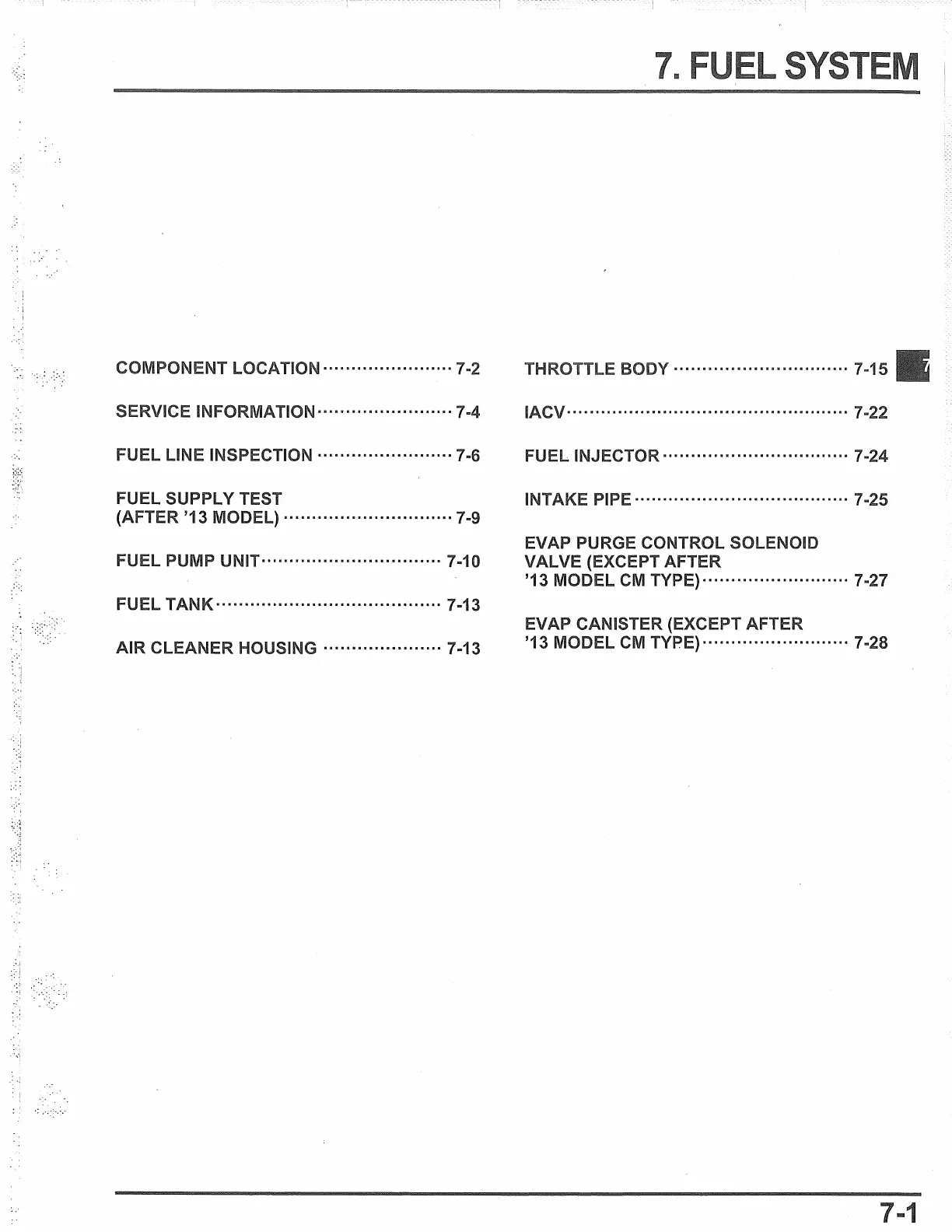

COMPONENT LOCATION
......................
.
SERVICE INFORMATION
........................
7-4
LINE INSPECTION ·
......
·
........
· .. · · · · · 7
-6
FUEL SUPPLY TEST
(AFTER '13 MODEL)
..............................
7-9
FUEL PUMP UNIT,
...............................
7-10
FUEL
TANK········································
7-13
AIR
CLEANER HOUSING
.....................
7-13
THROTTLE BODY
...............................
7-15
IACV··················································
7-22
FUEL INJECTOR
.................................
7-24
INTAKE
PIPE······································
7-25
EVAP PURGE CONTROL SOLENOID
VALVE(EXCEPT
'13 MODEL
CM
TYPE)··· .. · .. · ..
······
........ · 7-27
EVAP CANISTER (EXCEPT AFTER
'13 MODEL
CM
TYPE)
..........................
7-28

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
