GENERAL INFORMATION
SPECIFICATIONS

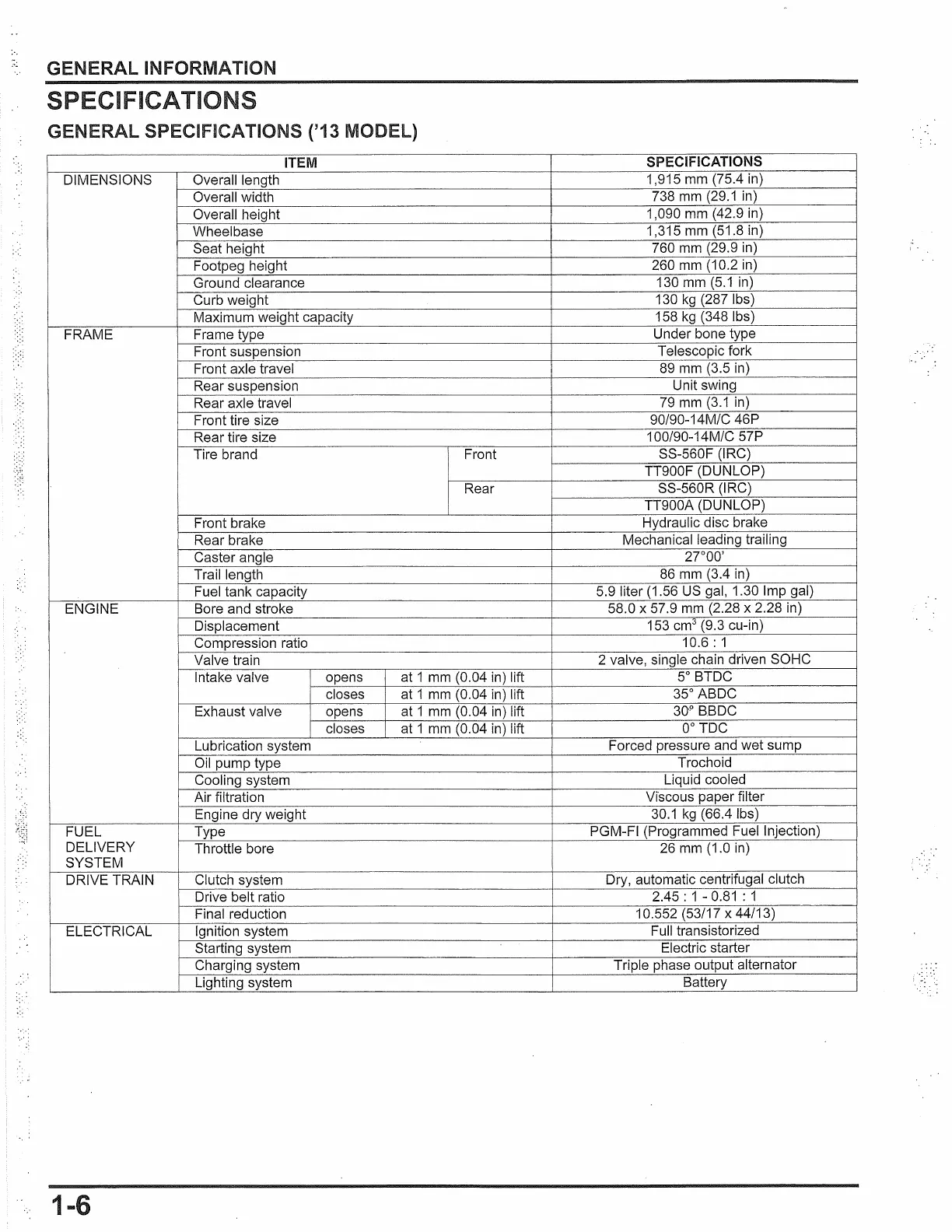

GENERAL SPECIFICATIONS {'13 MODEL)
ITEM
SPECIFICATIONS
DIMENSIONS
Overall length 1,915 mm (75.4 in)
Overall width 738 mm (29.1 in)
Overall height 1,090 mm (42.9 in)
Wheelbase 1,315 mm (51.8 in)
Seat height 760
mm
(29.9 in)
Footpeg height 260 mm (10.2 in)
Ground clearance
130 mm
(5.1
in)
Curb weight 130
kg
(287 lbs)
Maximum weight capacity
158
kg
(348 lbs)
FRAME Frame type
Under bone type
Front suspension
Telescopic fork
Front axle travel
89
mm
(3.5 in)
Rear suspension
Unit swing
Rear axle travel
79
mm
(3.1
in)
Front tire size 90/90-14M/C 46P
Rear tire size 100/90-14M/C 57P
Tire brand
Front
SS-560F (IRC)
TT900F (DUNLOP)
Rear
SS-560R (IRC)
TT900A (DUNLOP)
Front brake
Hydraulic disc brake
Rear brake
Mechanical leading trailing
Caster angle
27°00'
Trail length 86
mm
(3.4 in)
Fuel tank capacity 5.9 liter (1.56
US
gal, 1.30 Imp gal)
ENGINE
Bore and stroke 58.0 x 57.9 mm (2.28 x 2.28 in)
Displacement
153
cm
3
(9.3 cu-in)
Compression ratio
10.6:
1
Valve train
2 valve, single chain driven SOHC
Intake valve
opens
at 1 mm (0.04 in) lift
5°
BTDC
closes
at 1 mm (0.04 in) lift
35° ABDC
Exhaust valve opens
at 1
mm
(0.04 in) lift
30·
0
BBDC
closes
at 1
mm
(0.04 in) lift
0°
TDC
Lubrication system
Forced pressure and wet sump
Oil
pump type
Trochoid
Cooling system
Liquid cooled
Air filtration vrscous paper filter
Engine dry weight
30.1
kg
(66.4 lbs)
FUEL Type
PGM-FI (Programmed Fuel Injection)
DELIVERY
SYSTEM
Throttle bore
26
mm
(1.0 in)
DRIVE TRAIN Clutch system
Dry, automatic centrifugal clutch
Drive belt ratio
2.45 : 1 -
0.81
: 1
Final reduction
10.552 (53/17
X
44/13)
ELECTRICAL
Ignition system
Full transistorized
Starting system
Electric starter
Charging system
Triple phase output alternator
Lighting system
Battery
1-6
