Honda PCX150 2014 User Manual

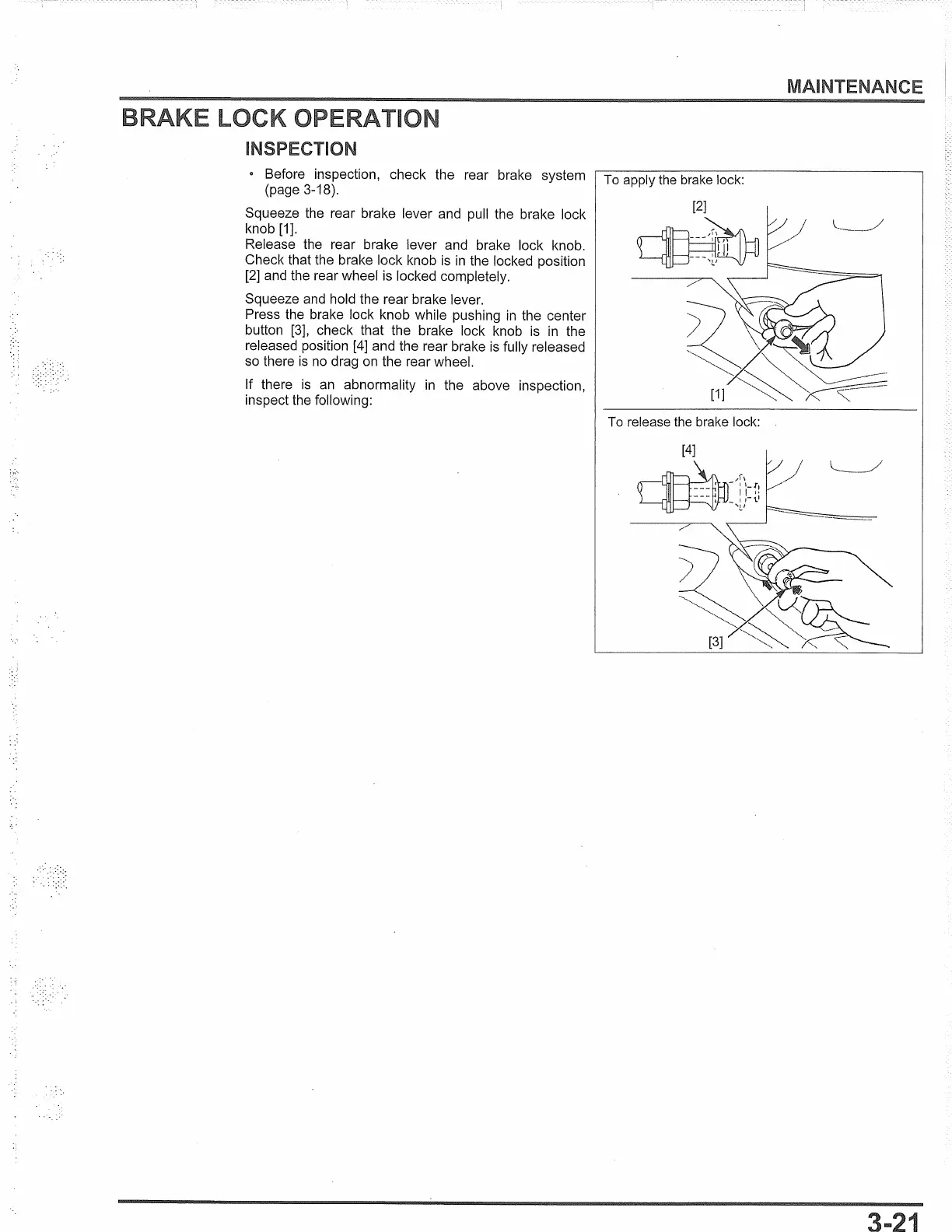

INSPECTION
• Before inspection, check the rear brake system
(page 3-18).
Squeeze the rear brake lever and pull the brake lock
knob
[1].
Release the rear brake lever and brake lock knob.
Check that the brake lock knob
is
in
the locked position
[2]
and the rear wheel
is
locked completely.
Squeeze
and
hold the rear brake lever.
Press the brake lock knob while pushing
in
the center
button
[3],
check that the brake lock knob
is
in
the
released position
[4]
and the rear brake
is
fully released
so
there
is
no
drag
on
the rear wheel.
If there
is
an
abnormality
in
the above inspection,
inspect the following:
To
apply
the
brake
lock:
[2]
To
release
the
brake lock:
MAINTENANCE
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
