Honda PCX150 2014 User Manual

LIGHTS/METERS/SWITCHES
HAND
21-24
SWITC
ES

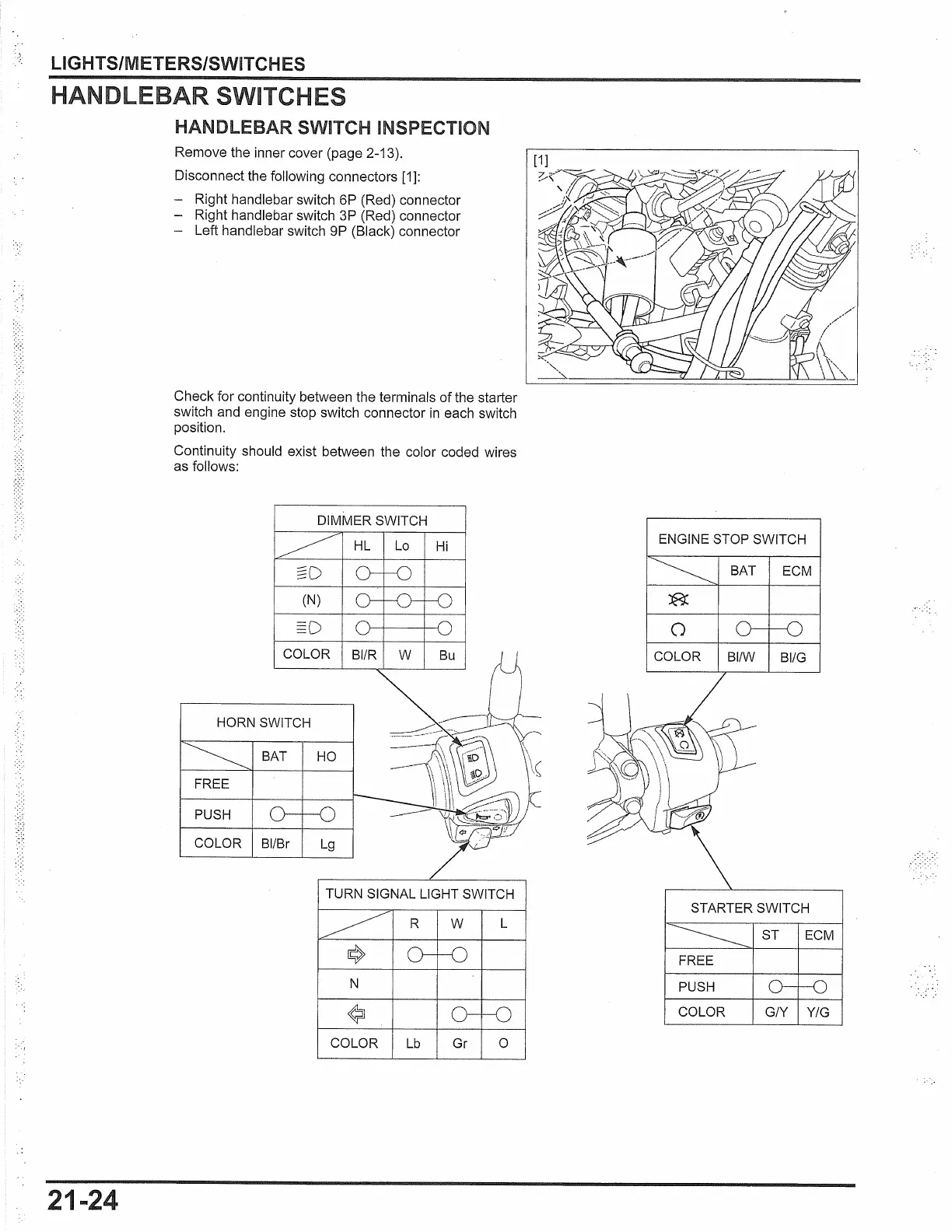

HANDLEBAR SWITCH INSPECTION
Remove the inner cover (page 2-13).
Disconnect the following connectors
[1]:
- Right handlebar switch 6P (Red) connector
- Right handlebar switch
3P (Red) connector
- Left handlebar switch 9P (Black) connector
Check for continuity between the terminals
of
the starter
switch and engine stop switch connector
in
each switch
position.
Continuity should exist between the color coded wires
as follows:
DIMMER SWITCH
COLOR BI/R W
Bu
HORN SWITCH
BAT HO
FREE
PUSH
COLOR Bl/Br
Lg
TURN SIGNAL LIGHT SWITCH
L
N
COLOR
Lb
Gr
0
ENGINE STOP SWITCH
BAT ECM
0
COLOR BI/W BI/G
STARTER SWITCH
ST
ECM
FREE
.-
PUSH
COLOR G/Y Y/G

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
