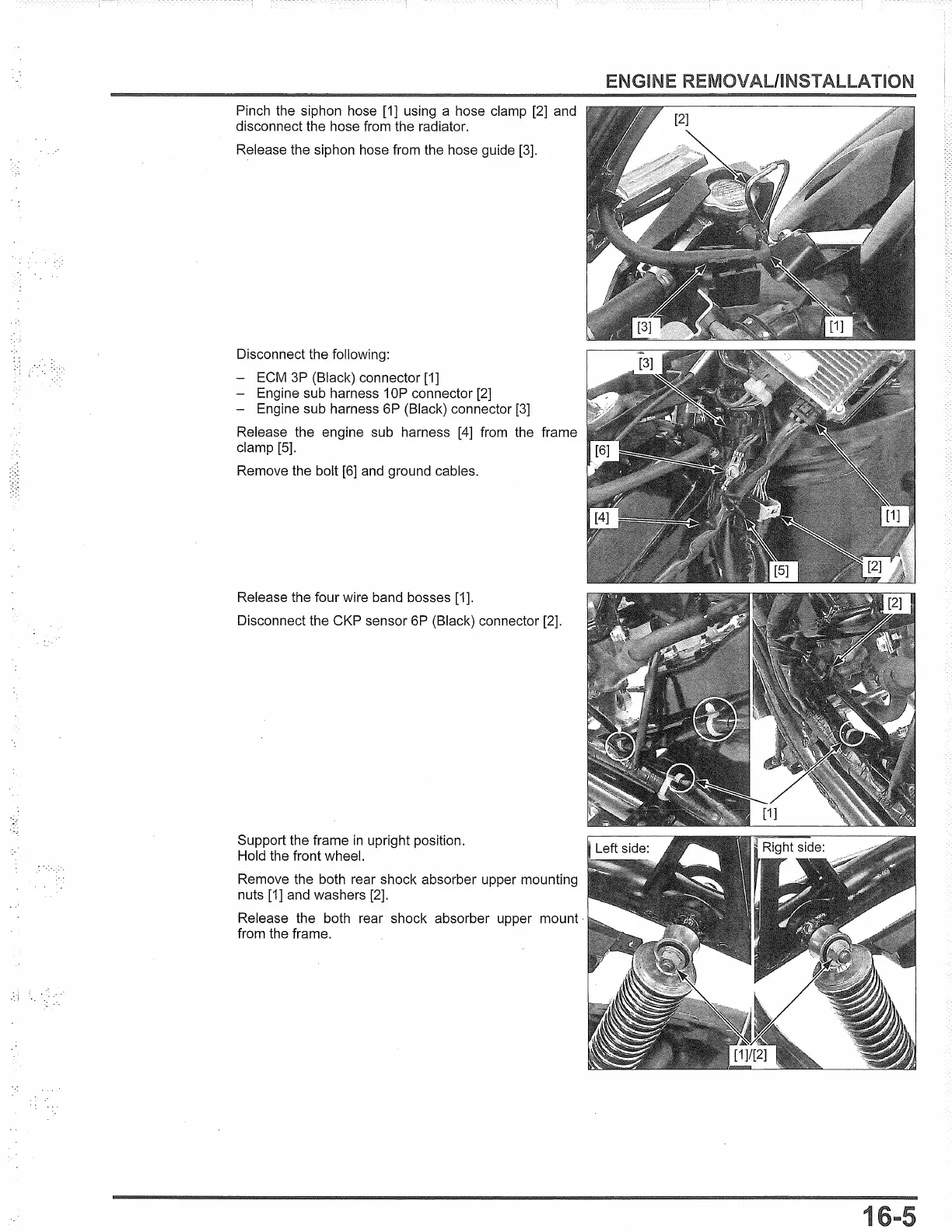

Pinch the siphon hose [1] using a hose clamp [2] and
disconnect the hose from the radiator.
Release the siphon hose from the hose guide [3].
Disconnect the following:
- ECM
3P (Black) connector [1]
- Engine sub harness 1
OP connector [2]
- Engine sub harness 6P (Black) connector [3]
Release the engine sub harness [4] from the frame
clamp [5].
Remove the bolt
[6] and ground cables.
Release the four wire band bosses [1].
Disconnect the CKP sensor
6P (Black) connector [2].
Support the frame
in upright position.
Hold the front wheel.
Remove the both rear shock absorber upper mounting
nuts
[1] and washers [2].
Release the both rear shock absorber upper mount·
from the frame.
ENGINE REMOVAL/INSTALLATION
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
