Honda PCX150 2014 User Manual

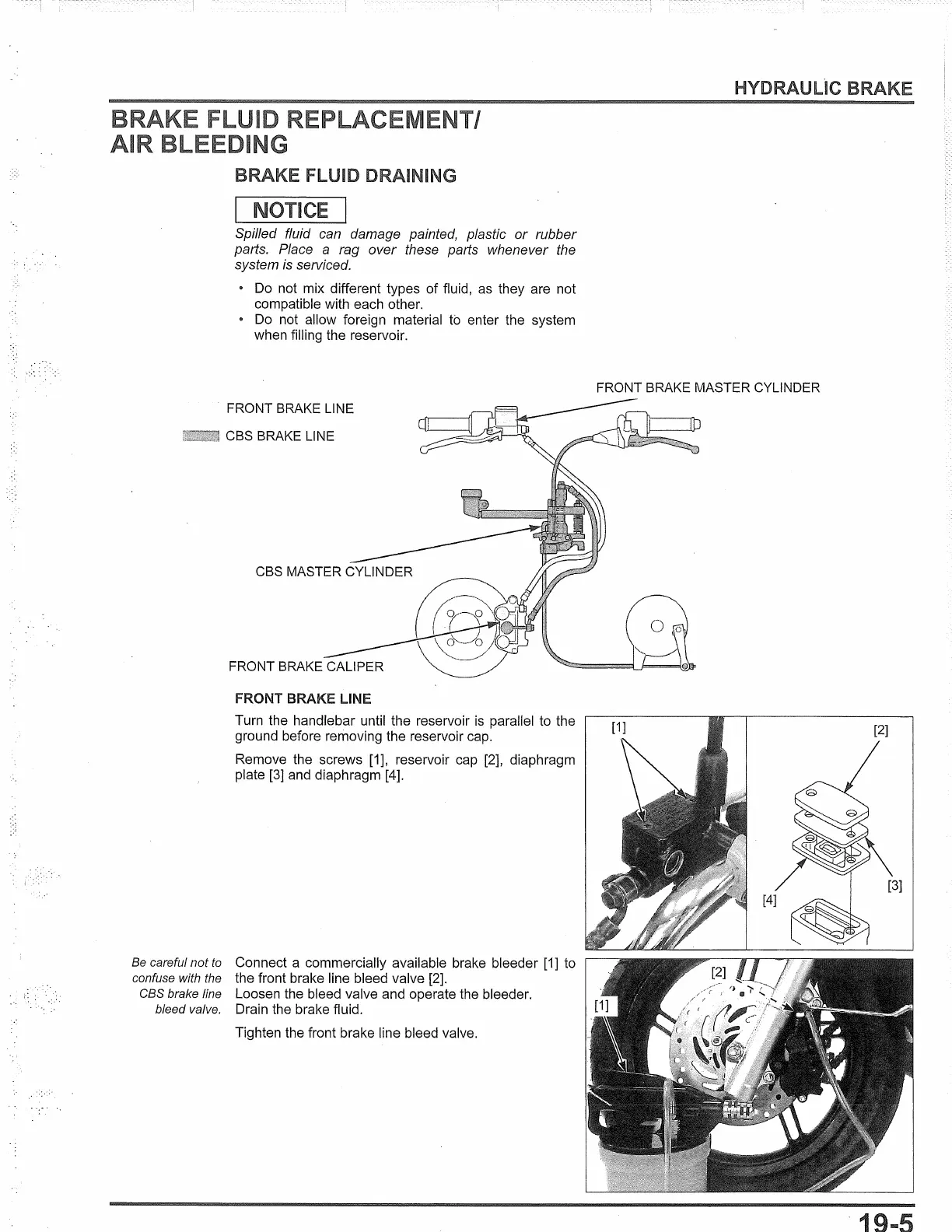

FLUID DRAINING
NOTICE
I
Spilled fluid can damage painted, plastic
or
rubber
parts. Place
a
rag over these parts whenever
the
system
is
serviced.
•
Do
not mix different types of fluid,
as
they are not
compatible with each other.
•
Do
not allow foreign material to enter the system
when filling the reservoir.
FRONT
BRAKE LINE
CBS BRAKE LINE
FRONT BRAKE LINE
Turn the handlebar until the reservoir
is
parallel to the
ground before removing the reservoir
cap.
Remove the screws [1], reservoir
cap
[2], diaphragm
plate
[3]
and
diaphragm [4].
Be careful
not
to
Connect a commercially available brake bleeder
[1]
to
confuse with the
the front brake line bleed valve
[2].
CBS brake line
Loosen the bleed valve and operate the bleeder.
bleed valve.
Drain the brake fluid.
Tighten the front brake line bleed valve.
HYDRAULIC
FRONT BRAKE
MASTER
CYLINDER
[2]
[4]~

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
