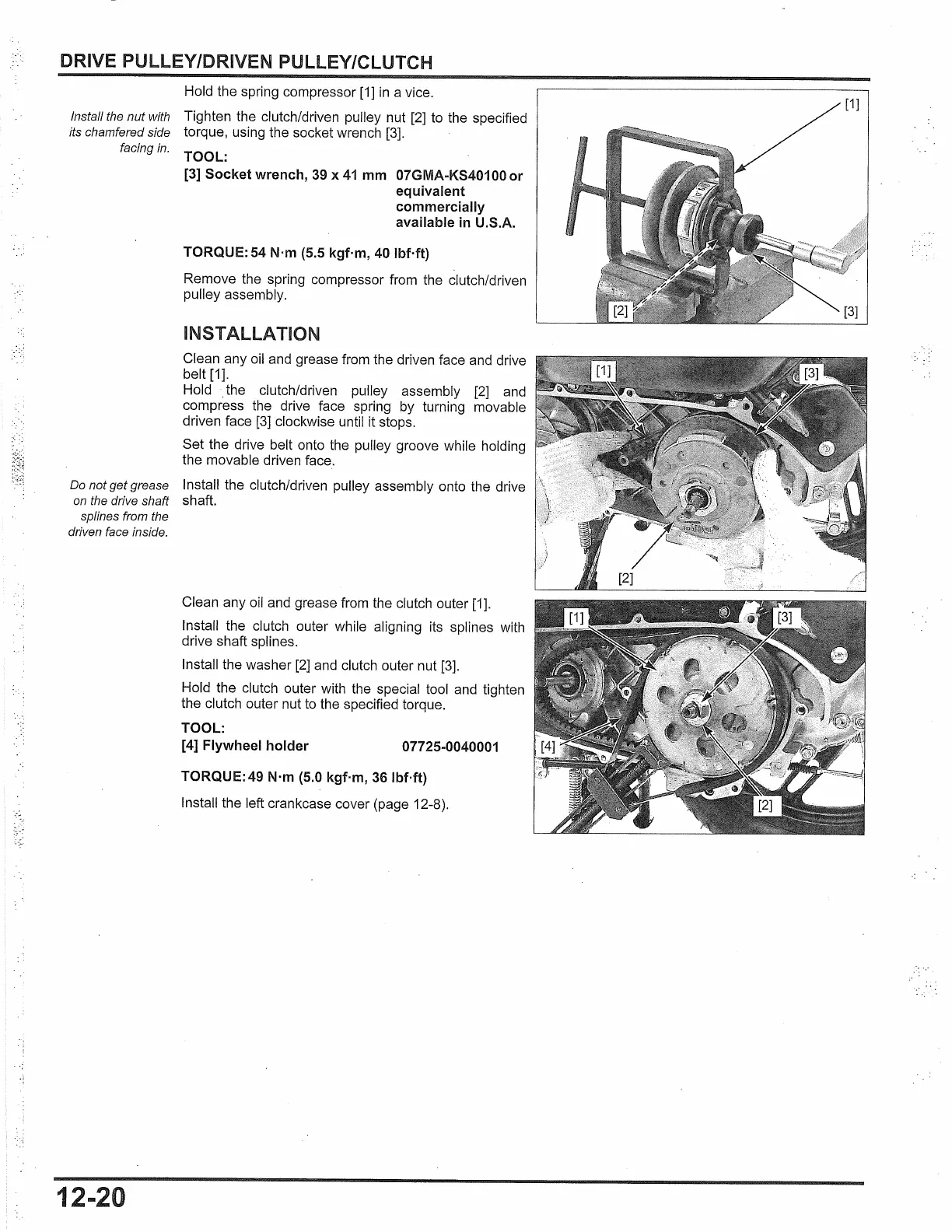

DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
Hold the spring compressor
[1]
in
a vice.
Install the
nut
with
Tighten the clutch/driven pulley nut
[2]
to
the specified
its chamfered side
torque, using the socket wrench
[3].
facing
in.
TOOL:
[3] Socket wrench, 39 x
41
mm
07GMA-KS40100or
equivalent
commercially
available
in
U.S.A.
TORQUE: 54 N·m (5.5 kgf·m, 40 lbMt)
Remove the spring compressor from the clutch/driven
pulley assembly.
INSTALLATION
Clean any
oil
and grease from the driven face and drive
belt [1].
Hold . the clutch/driven pulley assembly
[2]
and
compress the drive face spring by turning movable
driven face
[3]
clockwise until it stops.
Set the drive belt onto the pulley groove while holding
the movable driven face.
Do
not
get
grease
Install the clutch/driven pulley assembly onto the drive
on
the drive shaft
shaft.
splines from the
driven face inside.
12-20
Clean any oil and grease from the clutch outer
[1].
Install the clutch outer while aligning its splines with
drive shaft splines.
Install the washer
[2]
and
clutch outer nut [3].
Hold the clutch outer with the special tool and tighten
the clutch outer nut
to
the specified torque.
TOOL:
[4]
Flywheel holder 07725-0040001
TORQUE:49 N·m (5.0 kgf·m, 36 lbMt)
Install the left crankcase cover (page 12-8).
