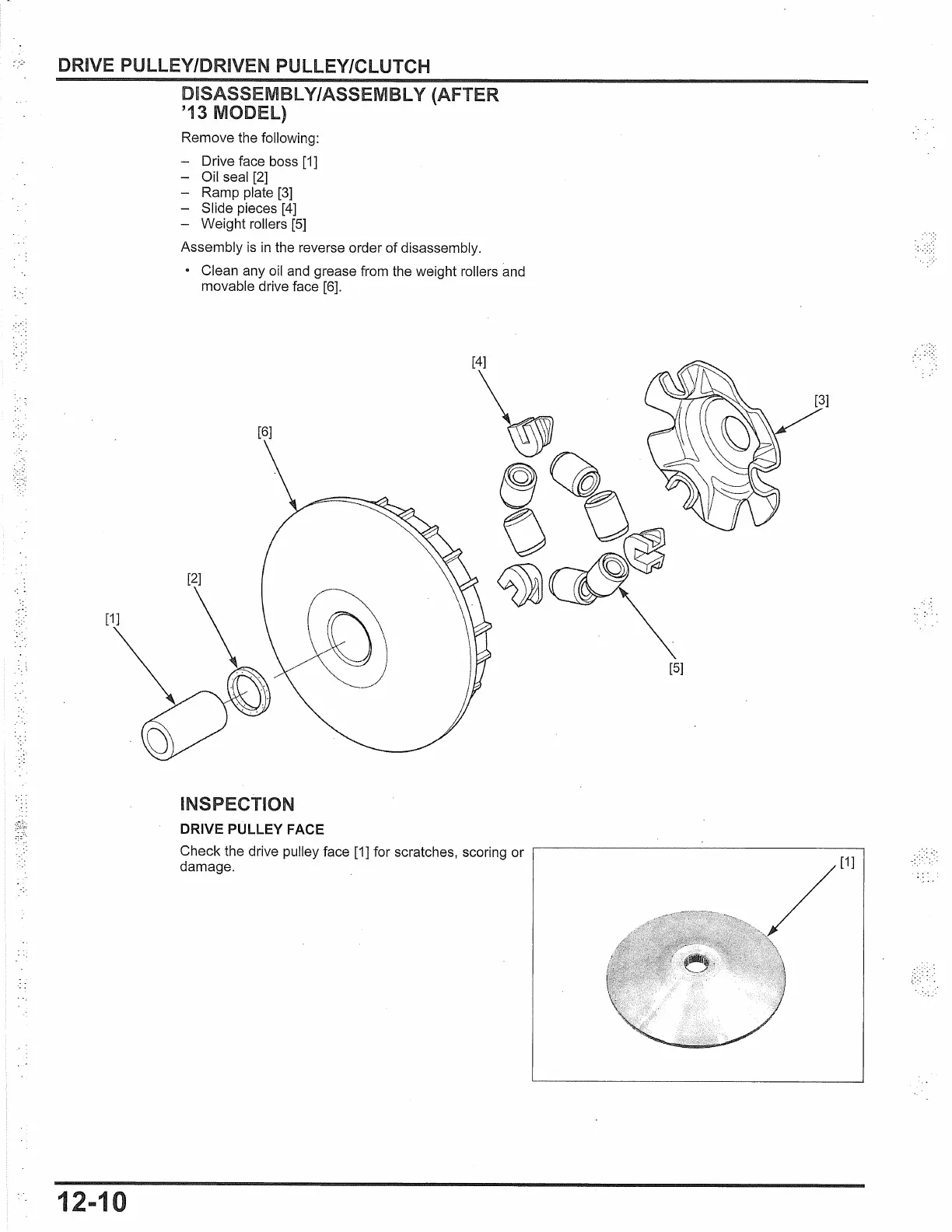

DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
[1]
\
12-10
DISASSEMBLY/ASSEMBLY (AFTER
'13 MODEL)
Remove the following:
- Drive face boss
[1]
- Oil seal [2]
- Ramp plate
[3]
- Slide pieces
[4]
- Weight rollers
[5]
Assembly
is
in
the reverse order of disassembly.
• Clean any oil and grease from the weight rollers and
movable drive face [6].
[6]
[2]
©
~-)
INSPECTION
DRIVE PULLEY FACE
Check the drive pulley face
[1]
for scratches, scoring or
damage.
[5]
[1]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
