Honda PCX150 2014 User Manual

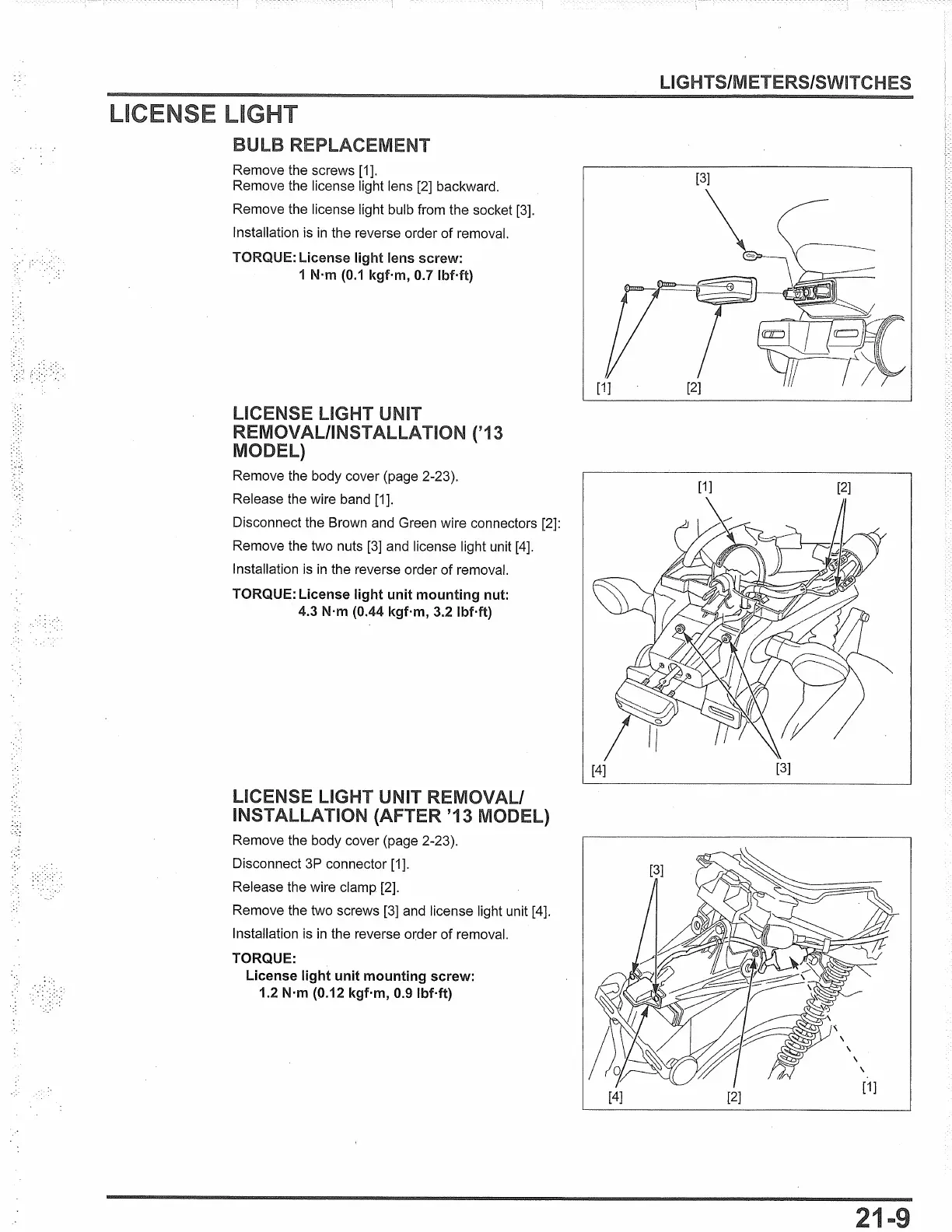

Remove the screws [1].
Remove the license light lens [2] backward.
Remove the license light bulb from the socket [3].
Installation
is
in
the reverse order of removal.
TORQUE:
License light lens screw:
1 N·m
(0.1
kgf-m, 0.7
lbMt)
LICENSE UNIT
REMOVAL/INSTALLATION ('13
MODEL)
Remove the body cover (page 2-23).
Release the wire band
[1
].
Disconnect the Brown and Green wire connectors [2]:
Remove the two nuts [3] and license light unit [4].
Installation
is
in
the reverse order
of
removal.
TORQUE: License light unit mounting nut:
4.3 N·m (0.44 kgf·m, 3.2
lbMt)
LICENSE LIGHT UNIT REMOVAL/
INSTALLATION (AFTER '13 MODEL)
Remove the body cover (page 2-23).
Disconnect
3P
connector [1].
Release the wire clamp [2].
Remove the two screws [3] and license light unit [4].
Installation
is
in
the reverse order of removal.
TORQUE:
License light unit mounting screw:
1.2 N·m (0.12 kgf·m, 0.9
lbMt)
LIGHTS/METERS/SWITCHES
[1]
[2]
[1]
[2]
[4]
[4]
[2]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
