Honda PCX150 2014 User Manual

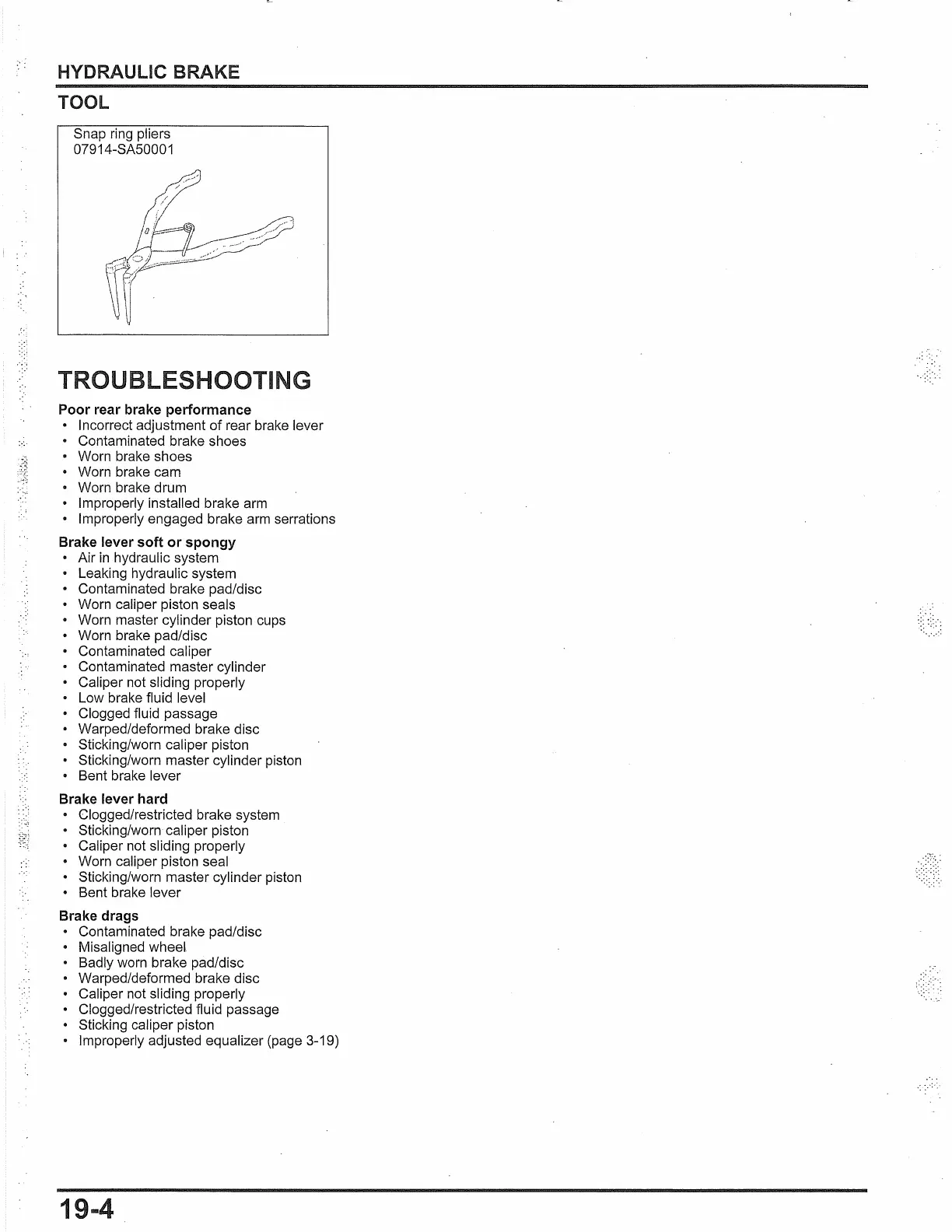

HYDRAULIC BRAKE
TOOL
Snap ring pliers
07914-SASOOO 1
TROUBLESHOOTING
Poor rear brake performance
Incorrect adjustment
of rear brake lever
Contaminated brake shoes
Worn brake shoes
Worn brake cam
Worn brake drum
Improperly installed brake arm
Improperly engaged brake arm serrations
Brake lever soft
or spongy
Air
in hydraulic system
Leaking hydraulic system
Contaminated brake pad/disc
Worn caliper piston seals
Worn master cylinder piston cups
Worn brake pad/disc
Contaminated caliper
Contaminated master cylinder
Caliper not sliding properly
Low brake fluid level
Clogged fluid passage
Warped/deformed brake disc
Sticking/worn caliper piston
Sticking/worn master cylinder piston
Bent brake lever
Brake lever hard
Clogged/restricted brake system
• Sticking/worn caliper piston
Caliper not sliding properly
• Worn caliper piston seal
• Sticking/worn master cylinder piston
• Bent brake lever
Brake drags
Contaminated brake pad/disc
Misaligned wheel
Badly worn brake pad/disc
Warped/deformed brake disc
Caliper not sliding properly
Clogged/restricted fluid passage
Sticking caliper piston
Improperly adjusted equalizer (page
3-19)
19-4

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
