BATTERY/CHARGING SYSTEM
20-10

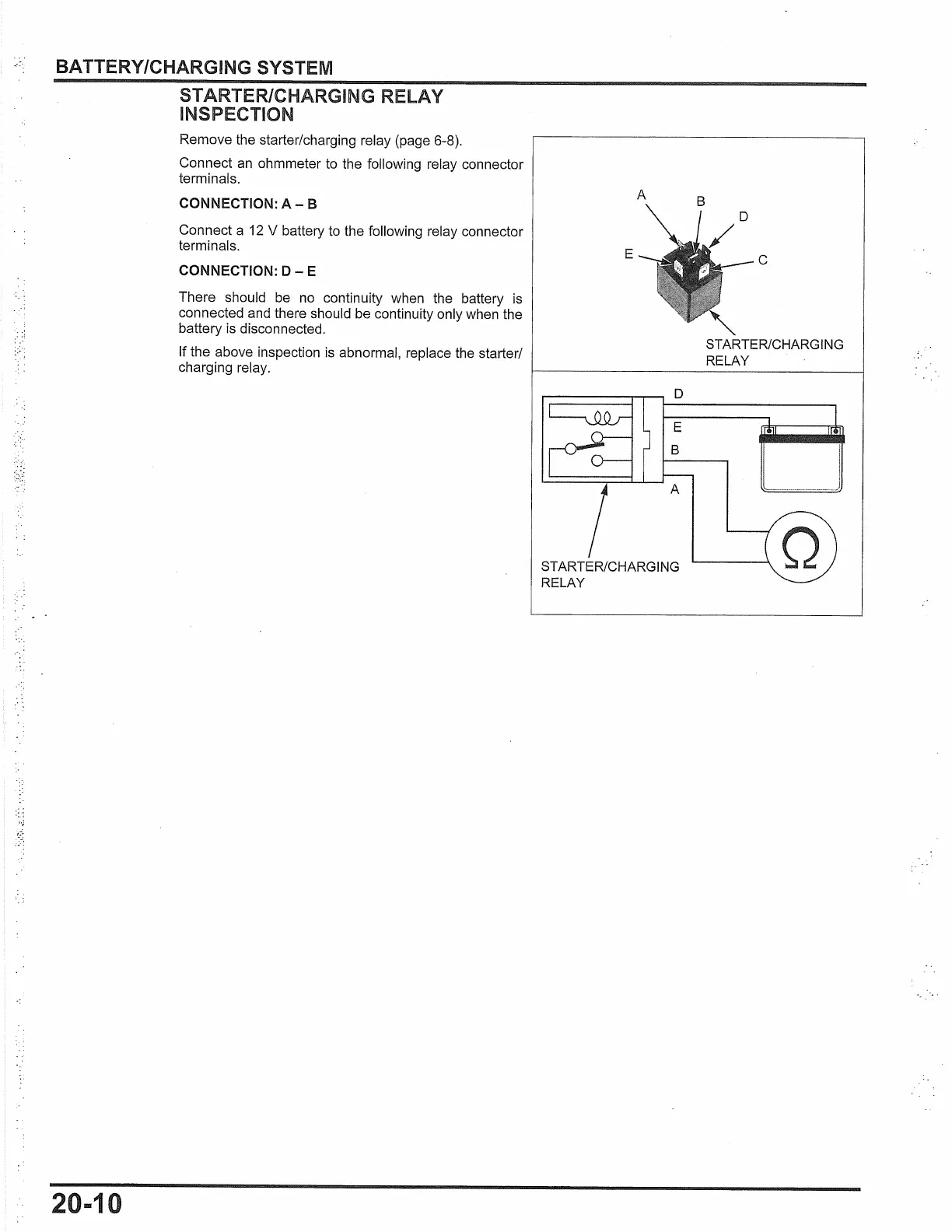

STARTER/CHARGING RELAY
INSPECTION
Remove the starter/charging relay (page 6-8).
Connect
an
ohmmeter to the following relay connector
terminals.
CONNECTION:A-B
Connect a 12 V battery to the following relay connector
terminals.
CONNECTION: D - E
There should be no continuity when the battery is
connected and there should be continuity only when the
battery is disconnected.
If the above inspection is abnormal, replace the starter/
charging relay.
E
D
E
B
A
STARTER/CHARGING
RELAY
C
STARTER/CHARGING
RELAY

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
