Honda PCX150 2014 User Manual

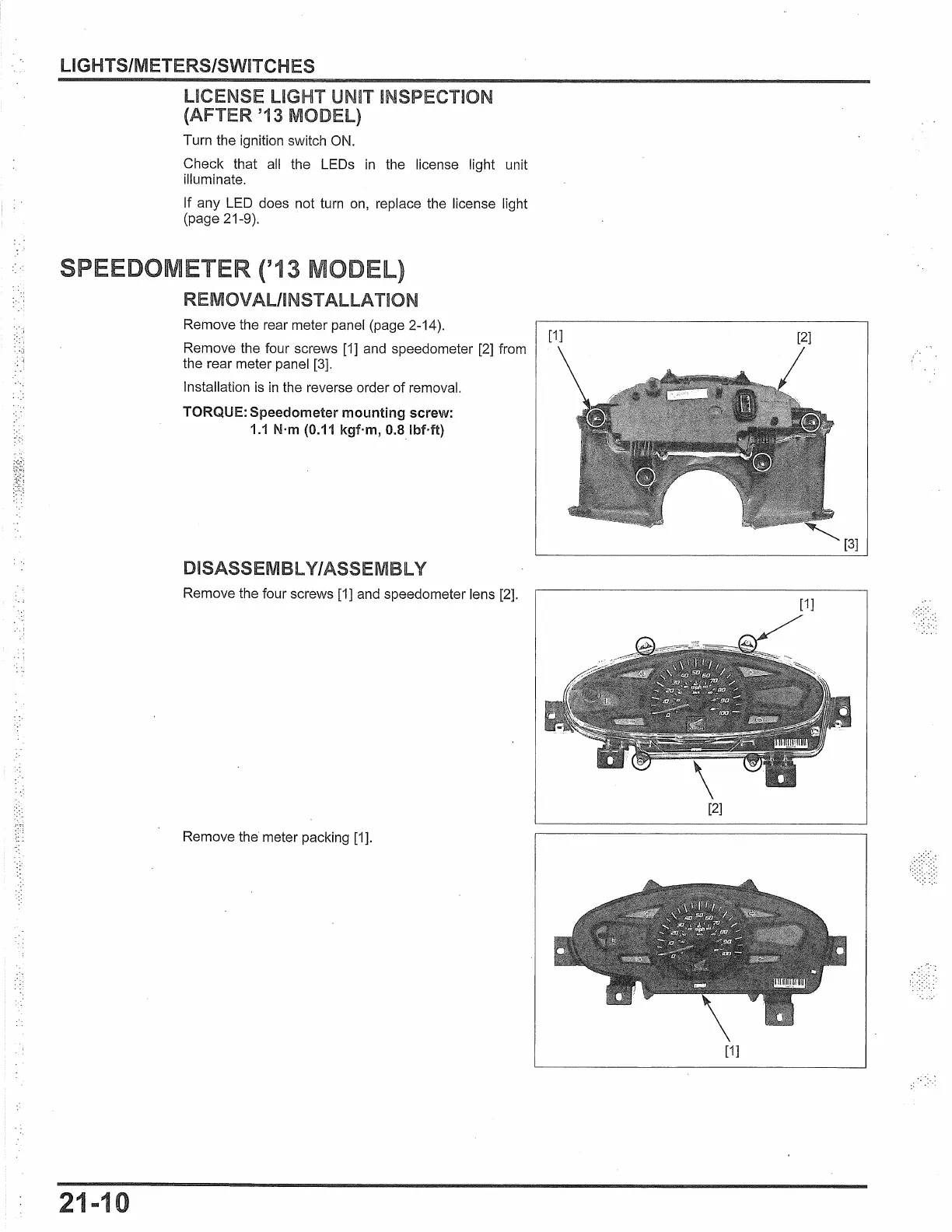

LIGHTS/METERS/SWITCHES
21
LICENSE UGHT UNIT INSPECTION
(AFTER '13 MODEL)
Turn the ignition switch ON.
Check that
all
the LEDs
in
the license light unit
illuminate.
If any LED does not turn
on,
replace the license light
(page 21-9).
('13
REMOVAl/lNSTAlLATION
Remove the rear meter panel (page 2-14).
Remove the four screws [1] and speedometer
[2]
from
the rear meter panel [3].
Installation
is
in
the reverse order of removal.
TORQUE: Speedometer mounting screw:
1.1
N·m (0.11 kgf·m, 0.8
lbHt)
DISASSEMBLY/ASSEMBLY
Remove the four screws
[1]
and speedometer lens [2].
Remove the meter packing [1].
[1]
[2]
[3]
[1]
[2]
[1]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
