Honda PCX150 2014 User Manual

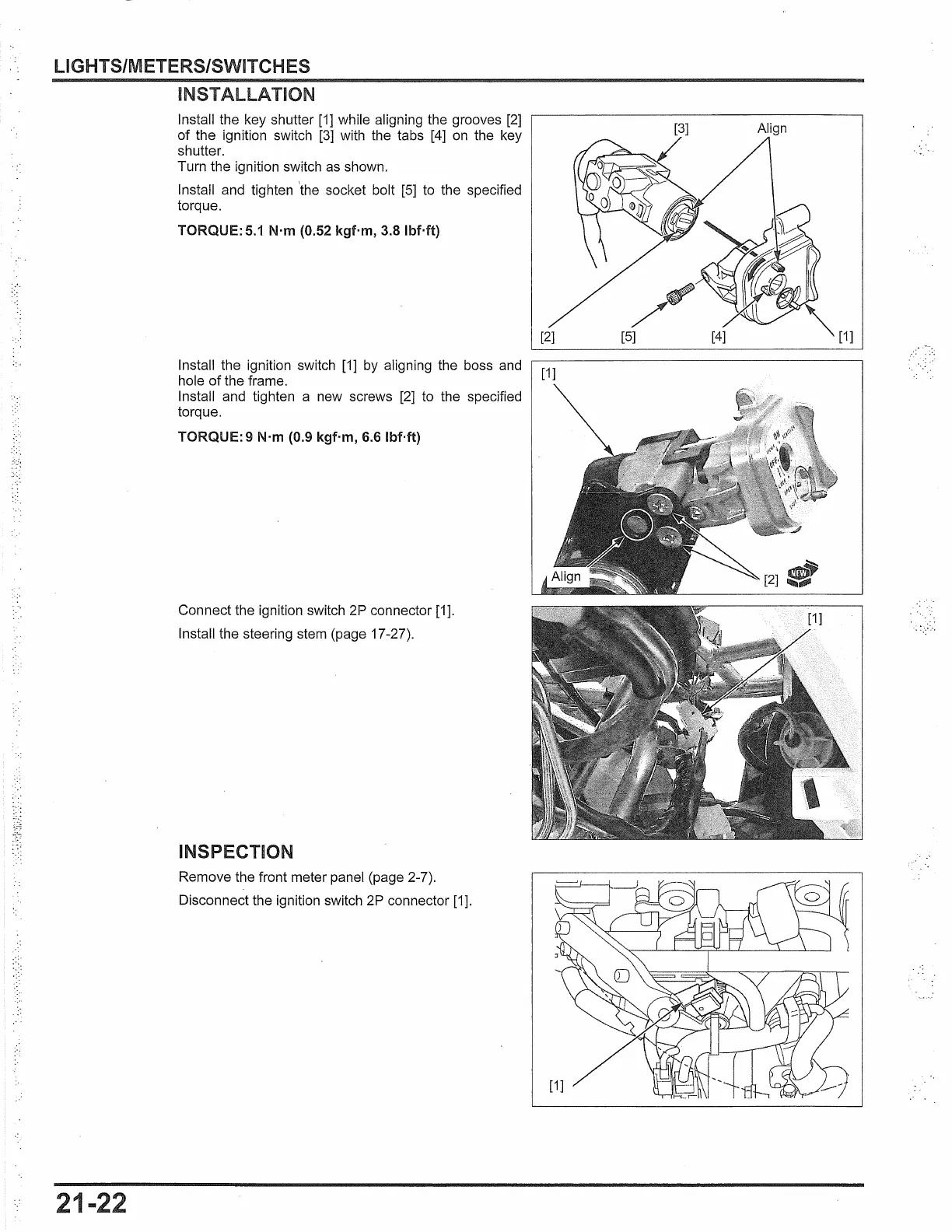

LIGHTS/METERS/SWITCHES
21-22
INSTALLATION
Install the key shutter [1] while aligning the grooves [2]
of the ignition switch [3] with the tabs [4] on the key
shutter.
Turn the ignition switch
as shown.
Install and tighten
'the socket bolt [5] to the specified
torque.
TORQUE: 5.1 N·m (0.52 kgf·m, 3.8 lbMt)
Install the ignition switch [1] by aligning the boss and
hole of the frame.
Install and tighten a new screws
[2] to the specified
torque.
TORQUE: 9 N·m (0.9 kgf·m, 6.6 lbMt)
Connect the ignition switch 2P connector [1].
Install the steering stem (page 17-27).
INSPECTION
Remove the front meter panel (page 2-7).
Disconnect the ignition switch
2P connector [1].
[3]
Align
[1]
[1]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
