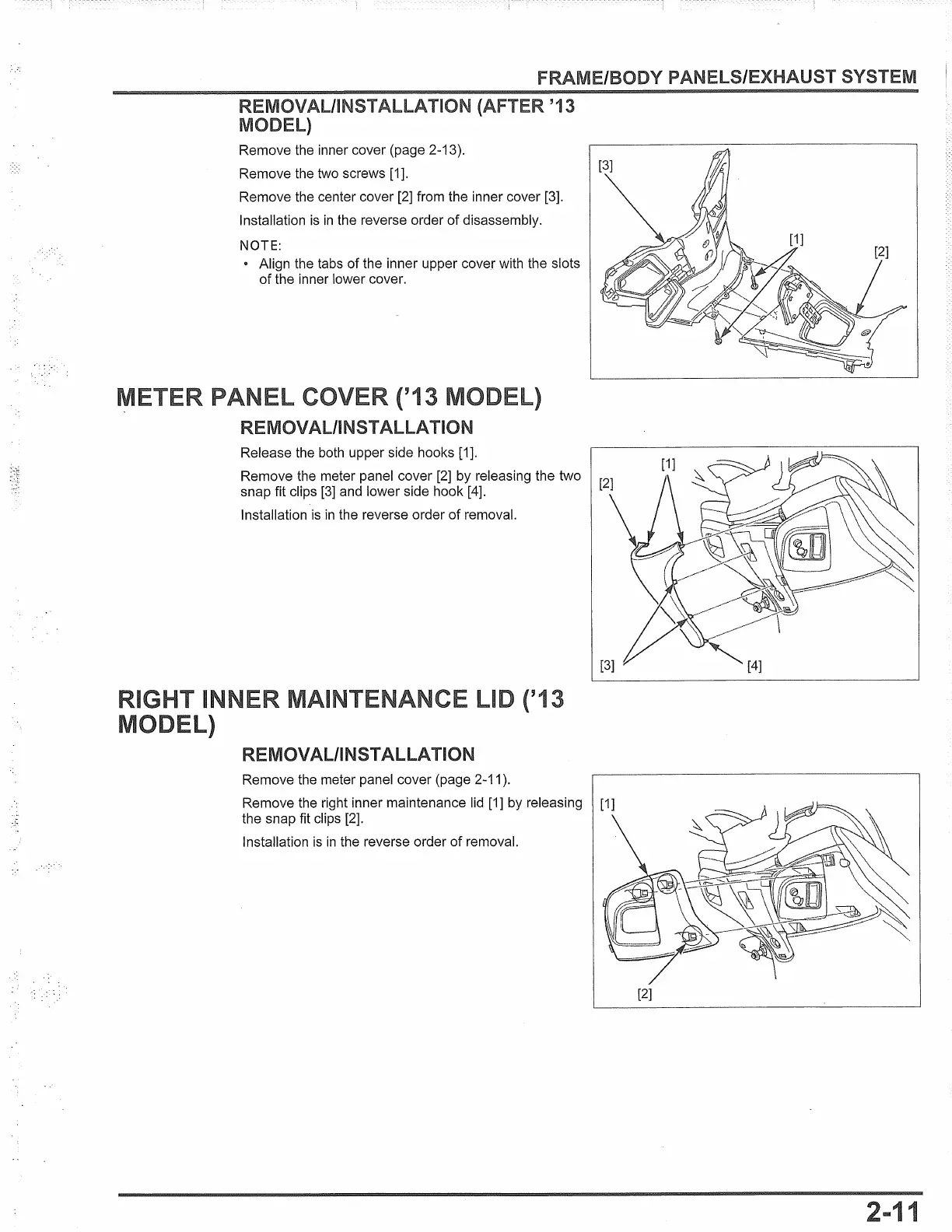

FRAME/BODY PANELS/EXHAUST
REMOVAL/INSTALLATION
Remove the inner cover (page 2-13).
Remove the two screws [1].
'13
Remove the center cover [2] from the inner cover [3].
Installation
is
in
the reverse order
of
disassembly.
NOTE:
• Align the tabs of the inner upper cover with the slots
of
the inner lower cover.
('13
REMOVAL/INSTALLATION
Release the both upper side hooks [1].
Remove the meter panel cover
[2]
by releasing the two
snap fit clips
[3]
and lower side hook [4].
Installation
is
in
the reverse order
of
removal.
('13
REMOVAL/INST
ALLA
Tl
ON
Remove the meter panel cover (page
2-11
).
Remove the right inner maintenance lid [1] by releasing
[1]
the snap
fit clips [2].
Installation
is
in
the reverse order of removal.
[2]
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
