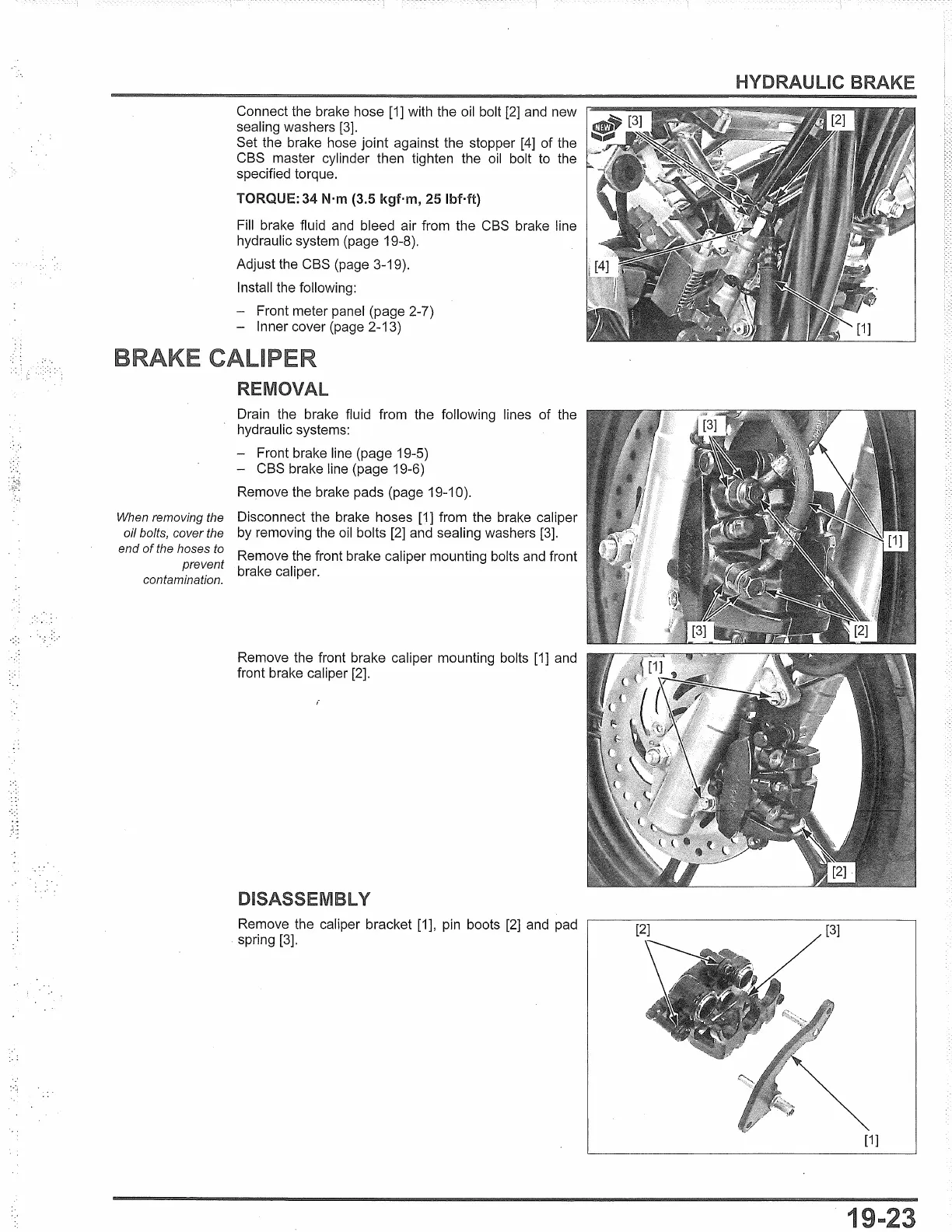

Connect the brake hose
[1]
with the oil bolt
[2]
and
new
sealing washers
[3].
Set the brake hose joint against the stopper
[4]
of the
CBS master cylinder then tighten the
oil
bolt
to
the
specified torque.
TORQUE: 34 N·m (3.5 kgf·m, 25
lbMt)
Fill brake fluid
and
bleed air from the
CBS
brake line
hydraulic system (page 19-8).
Adjust the CBS (page 3-19).
Install the following:
- Front meter panel (page 2-7)
- Inner cover (page 2-13)
REMOVAL
Drain the brake fluid from the following lines of the
hydraulic systems:
- Front brake line (page 19-5)
- CBS brake line (page 19-6)
Remove the brake pads (page 19-10).
When removing the
Disconnect the brake hoses
[1]
from the brake caliper
oil bolts, cover the
by removing the oil bolts
[2]
and sealing washers
[3].
end
of
the hoses to
Remove the front brake caliper mounting bolts
and
front
prevent
contamination.
brake caliper.
Remove the front brake caliper mounting bolts
[1]
and
front brake caliper [2].
DISASSEMBLY
Remove the caliper bracket [1], pin boots
[2]
and pad
spring [3].
[2]
[3]
[1]
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
