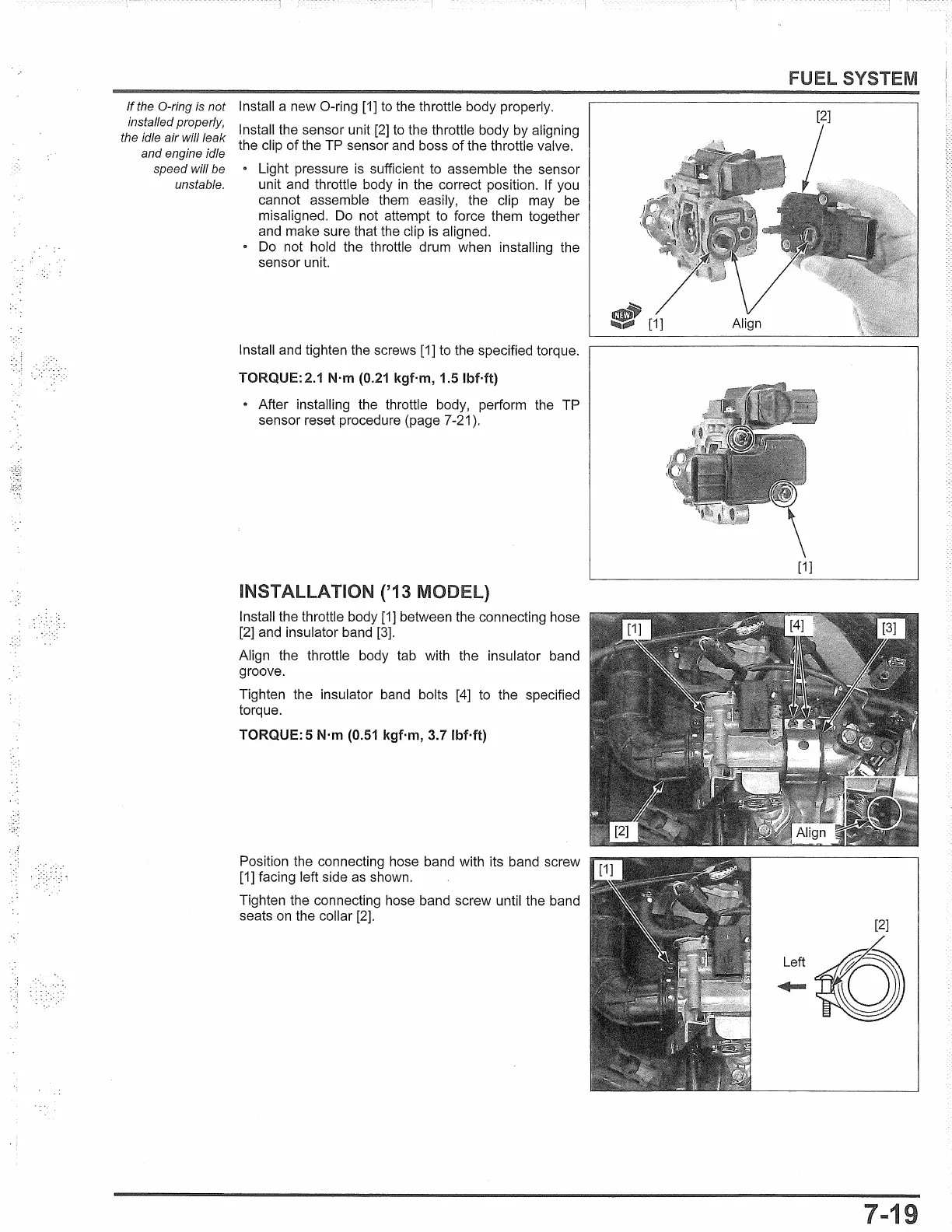

If
the 0-ring is not
Install a new
0-ring
[1] to the throttle body properly.
installed properly,
the idle
air
will leak
Install the sensor unit
[2]
to
the throttle body by aligning
and engine idle
speed will be
unstable.
the clip
of
the TP sensor and boss
of
the throttle valve.
• Light pressure
is
sufficient to assemble the sensor
unit and throttle body
in
the correct position. If you
cannot assemble them easily, the clip may be
misaligned. Do not attempt to force them together
and make sure that the clip is aligned.
• Do not hold the throttle drum when installing the
sensor unit.
Install and tighten the screws [1] to the specified torque.
TORQUE:2.1 N·m (0.21 kgf·m, 1.5
lbMt)
• After installing the throttle body, perform the TP
sensor reset procedure (page
7-21
).
INSTALLATION ('13 MODEL)
Install the throttle body [1] between the connecting hose
[2]
and insulator band
[3].
Align the throttle body tab with the insulator band
groove.
Tighten the insulator band bolts [4] to the specified
torque.
TORQUE: 5 N·m (0.51 kgf·m, 3.7 lbf·ft)
Position the connecting hose band with its band screw
[1] facing left side
as
shown.
Tighten the connecting hose band screw until the band
seats on the collar
[2].
FUEL
[2]
[1]
[2]
Left
0
