Honda PCX150 2014 User Manual

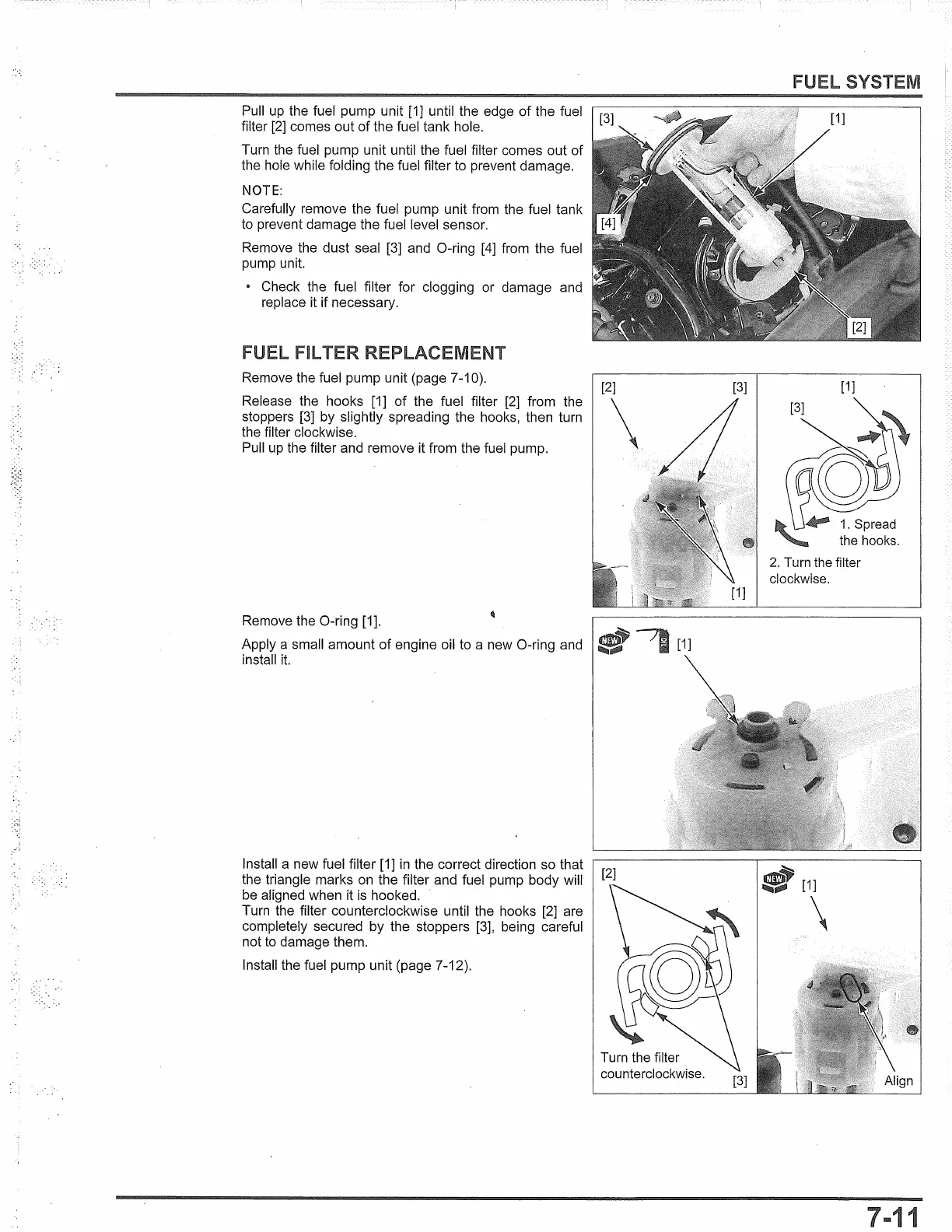

Pull
up
the fuel pump unit
[1]
until the edge
of
the fuel
filter
[2]
comes out of the fuel tank hole.
Turn the fuel pump unit until the fuel filter comes out of
the hole while folding the fuel filter
to
prevent damage.
NOTE:
Carefully remove the fuel pump unit from the fuel tank
to prevent damage the fuel level sensor.
Remove the dust seal
[3]
and 0-ring
[4]
from the fuel
pump unit.
• Check the fuel filter for clogging or damage and
replace
it
if necessary.
Remove the fuel pump unit (page 7-10).
Release the hooks [1]
of
the fuel filter
[2]
from the
stoppers
[3]
by slightly spreading the hooks, then turn
the filter clockwise.
Pull
up
the filter and remove it from the fuel pump.
Remove the 0-ring [1].
Apply a small amount
of
engine oil to a new 0-ring and
install
it.
Install a new fuel filter
[1]
in
the correct direction so that
the triangle marks
on
the filter and fuel pump body will
be
aligned when it
is
hooked.
Turn the filter counterclockwise until the hooks [2] are
completely secured by the stoppers [3], being careful
not
to
damage them.
Install the fuel pump unit (page 7-12).
[2]
[3]
\
counterclockwise.
[3]
FUEL SYSTEM
[1]
2.
Turn
the
filter
clockwise.
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
