Honda PCX150 2014 User Manual

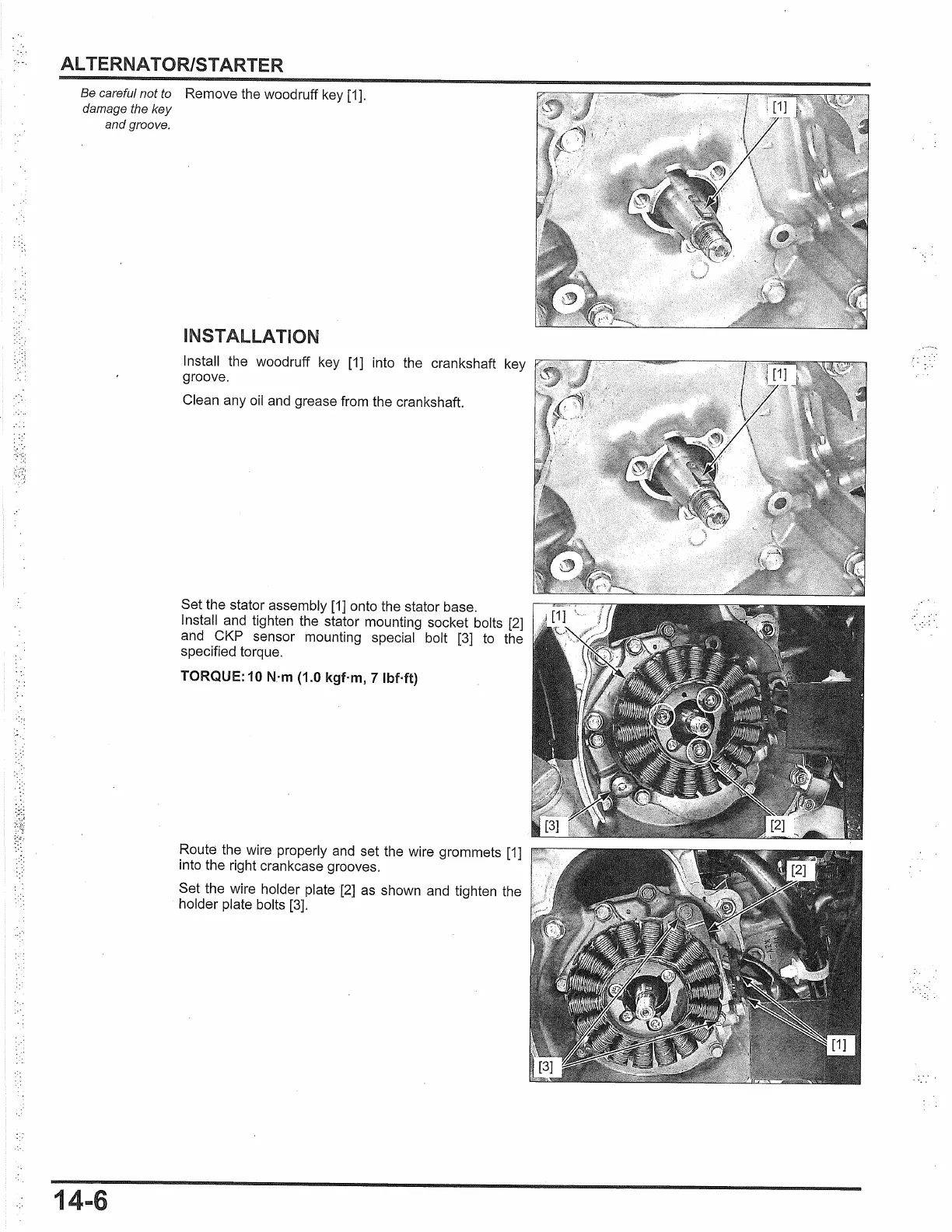

AL
TERNA TOR/STARTER
Be careful
not
to
Remove the woodruff key
[1].
damage the key
and groove.
14-6
INSTALLATION
Install the woodruff key
[1]
into the crankshaft key
groove.
Clean any oil
and
grease from the crankshaft.
Set the stator assembly
[1]
onto the stator base.
Install and tighten the stator mounting socket bolts
[2]
and CKP sensor mounting special bolt [3]
to
the
specified torque.
TORQUE: 10
N.·m
(1.0
kgf·m,
7 lbMt)
Route the wire properly
and
set the wire grommets
[1]
into the right crankcase grooves.
Set the wire holder plate
[2]
as
shown
and
tighten the
holder plate bolts
[3].

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
