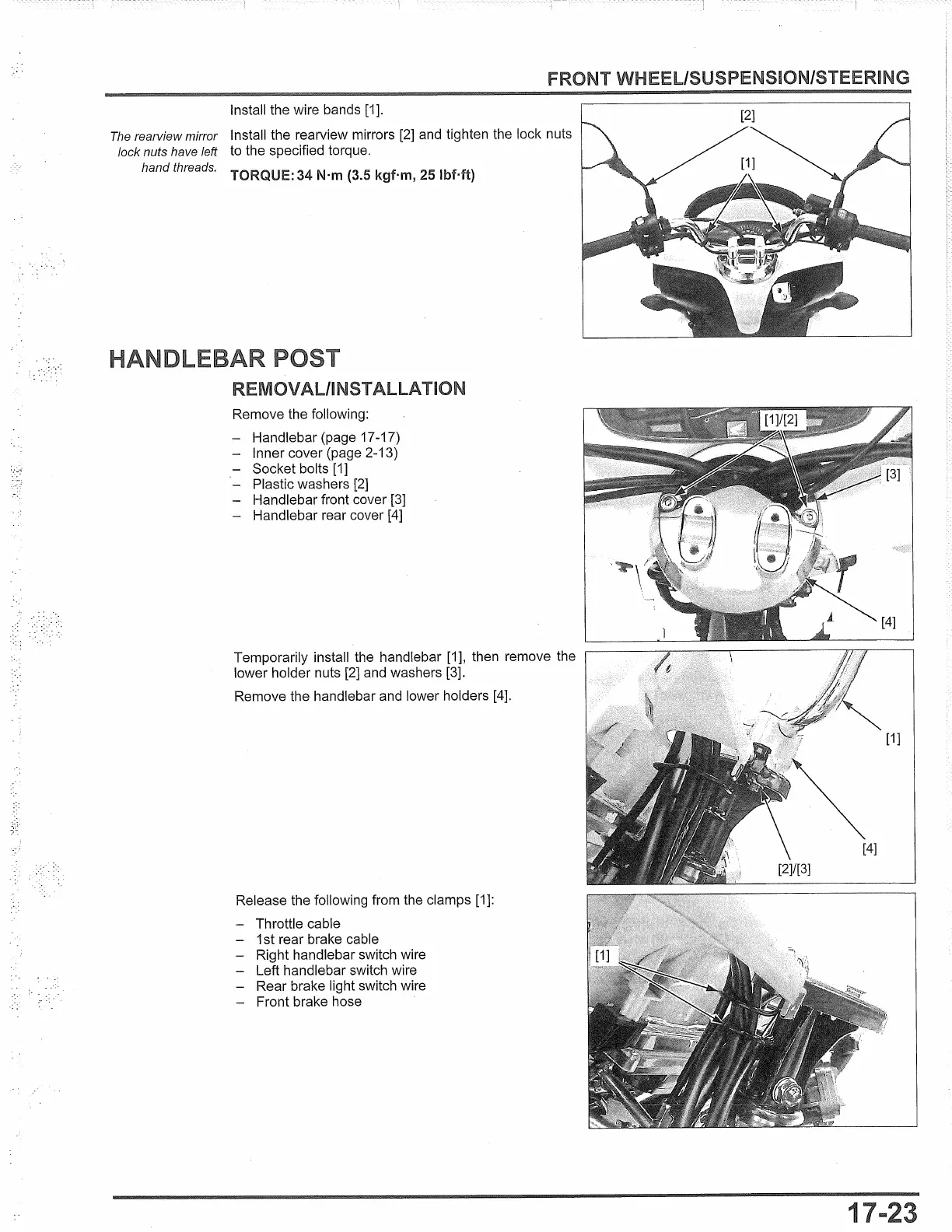

FRONT WHEEL/SUSPENSION/STEERING
Install the wire bands [1].
The
reaNiew mirror
Install the rearview mirrors
[2]
and
tighten the lock nuts
lock nuts have left
to the specified torque.
hand threads.
TORQUE: 34 N·m (3.5 kgf·m, 25
lbMt)
REMOVAL/INSTALLATION
Remove the following:
- Handlebar (page 17-17)
- Inner cover (page 2-13)
Socket bolts [1]
- Plastic washers
[2]
- Handlebar front cover
[3]
- Handlebar rear cover
[4]
Temporarily install the handlebar [1], then remove the
lower holder nuts
[2]
and washers [3].
Remove the handlebar and lower holders [4].
Release the following from the clamps [1]:
- Throttle cable
- 1st rear brake cable
- Right handlebar switch wire
- Left handlebar switch wire
- Rear brake light switch wire
Front brake hose
[1]
,;~
[4]
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
