Honda PCX150 2014 User Manual

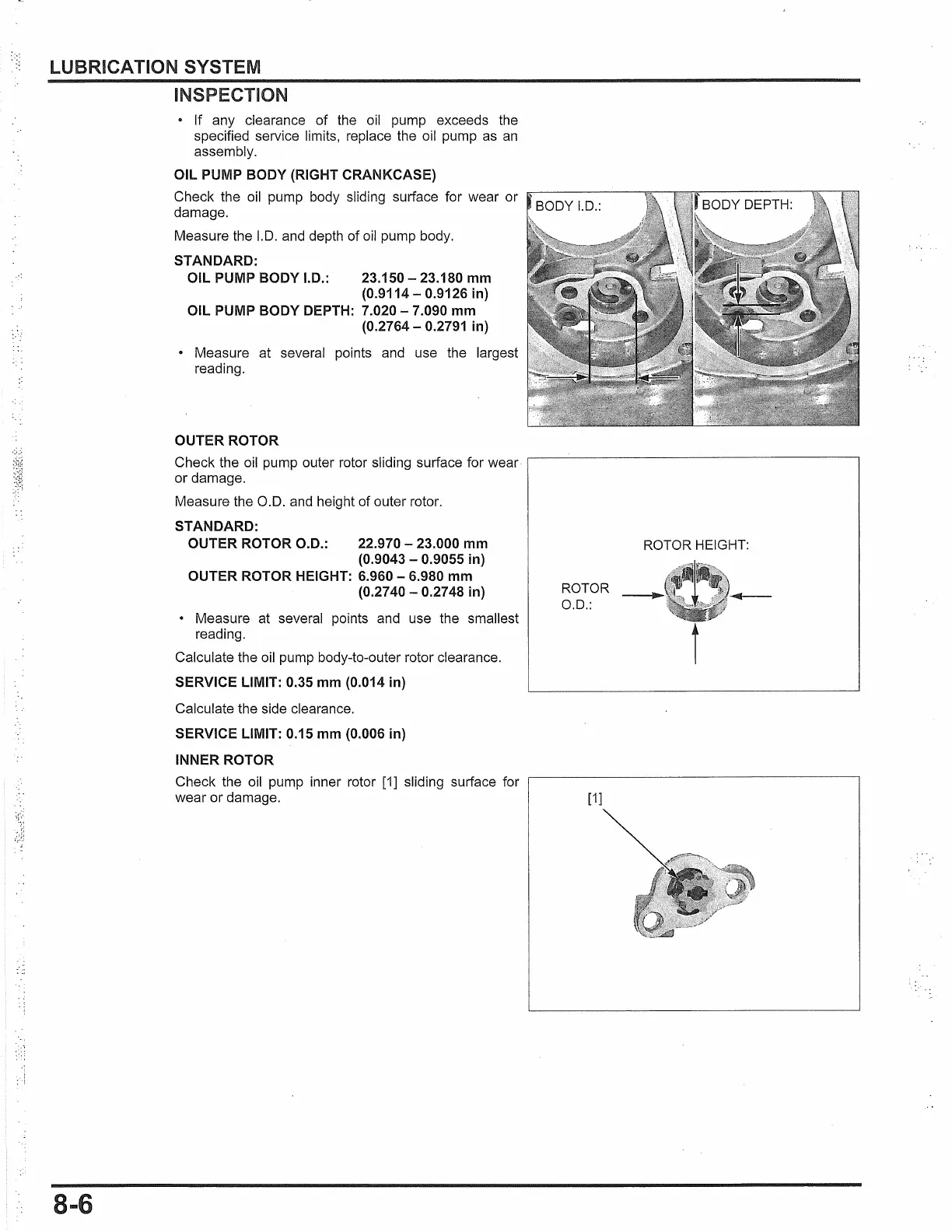

LUBRICATION SYSTEM
8-6
INSPECTION
• If any clearance of the oil pump exceeds the
specified service limits, replace the oil pump
as an
assembly.
OIL PUMP BODY (RIGHT CRANKCASE)
Check the oil pump body sliding surface for wear or
damage.
Measure the I.D. and depth of
oil pump body.
STANDARD:
OIL PUMP BODY I.D.:
23.150- 23.180 mm
(0.9114 - 0.9126 in)
OIL PUMP BODY DEPTH: 7.020 - 7.090
mm
(0.2764 - 0.2791 in)
• Measure at several points and use the largest
reading.
OUTER ROTOR
Check the oil pump outer rotor sliding surface for wear
or damage.
Measure the
0.0. and height of outer rotor.
STANDARD:
OUTER ROTOR O.D.: 22.970 - 23.000 mm
(0.9043 - 0.9055 in)
OUTER ROTOR HEIGHT: 6.960 - 6.980
mm
(0.2740 - 0.2748 in)
• Measure at several points and use the smallest
reading.
Calculate the
oil pump body-to-outer rotor clearance.
SERVICE LIMIT: 0.35 mm (0.014 in)
Calculate the side clearance.
SERVICE LIMIT: 0.15 mm (0.006 in)
INNER ROTOR
Check the oil pump inner rotor [1] sliding surface for
wear or damage.
ROTOR
O.D.:
[1]
ROTOR HEIGHT:
t

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
