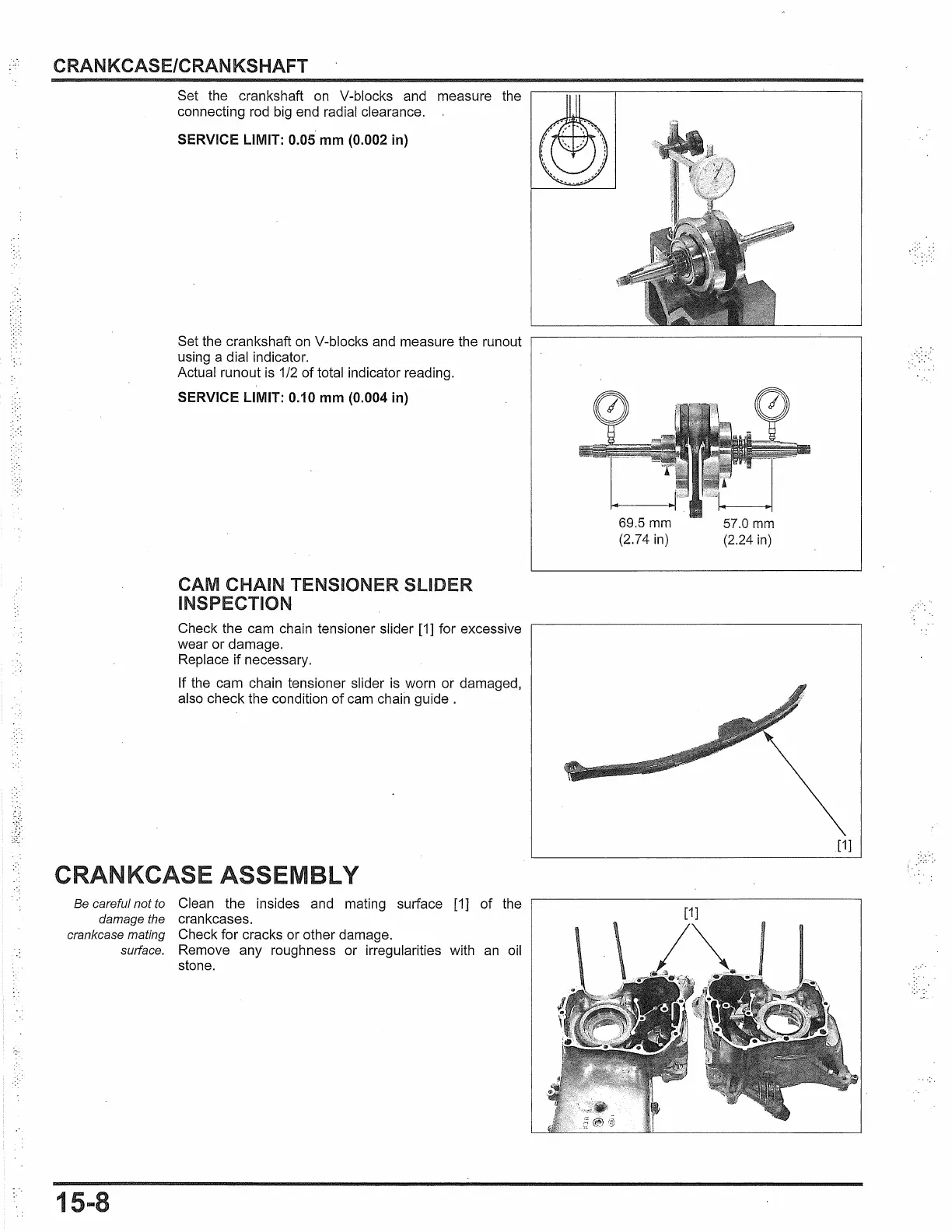

.,. CRANKCASE/CRANKSHAFT
Set the crankshaft on V-blocks and
connecting
rod big end radial clearance.
SERVICE LIMIT: 0.05 mm (0.002 in)
Set the crankshaft on V-blocks and measure the runout
using a dial indicator.
Actual runout
is 1/2 of total indicator reading.
SERVICE LIMIT: 0.10 mm (0.004 in)
CAM CHAIN TENSIONER SLIDER
INSPECTION
Check the cam chain tensioner slider [1] for excessive
wear or damage.
Replace if necessary.
If the cam chain tensioner slider
is worn or damaged,
also check the condition of
cam chain guide .
CRANKCASE ASSEMBLY
Be careful not to Clean the insides and mating surface [1] of the
damage the crankcases.
crankcase mating Check for cracks or other damage.
15-8
surface. Remove any roughness or irregularities with an oil
stone.
69.5
mm
(2.74 in)
57.0 mm
(2.24 in)
[1]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
