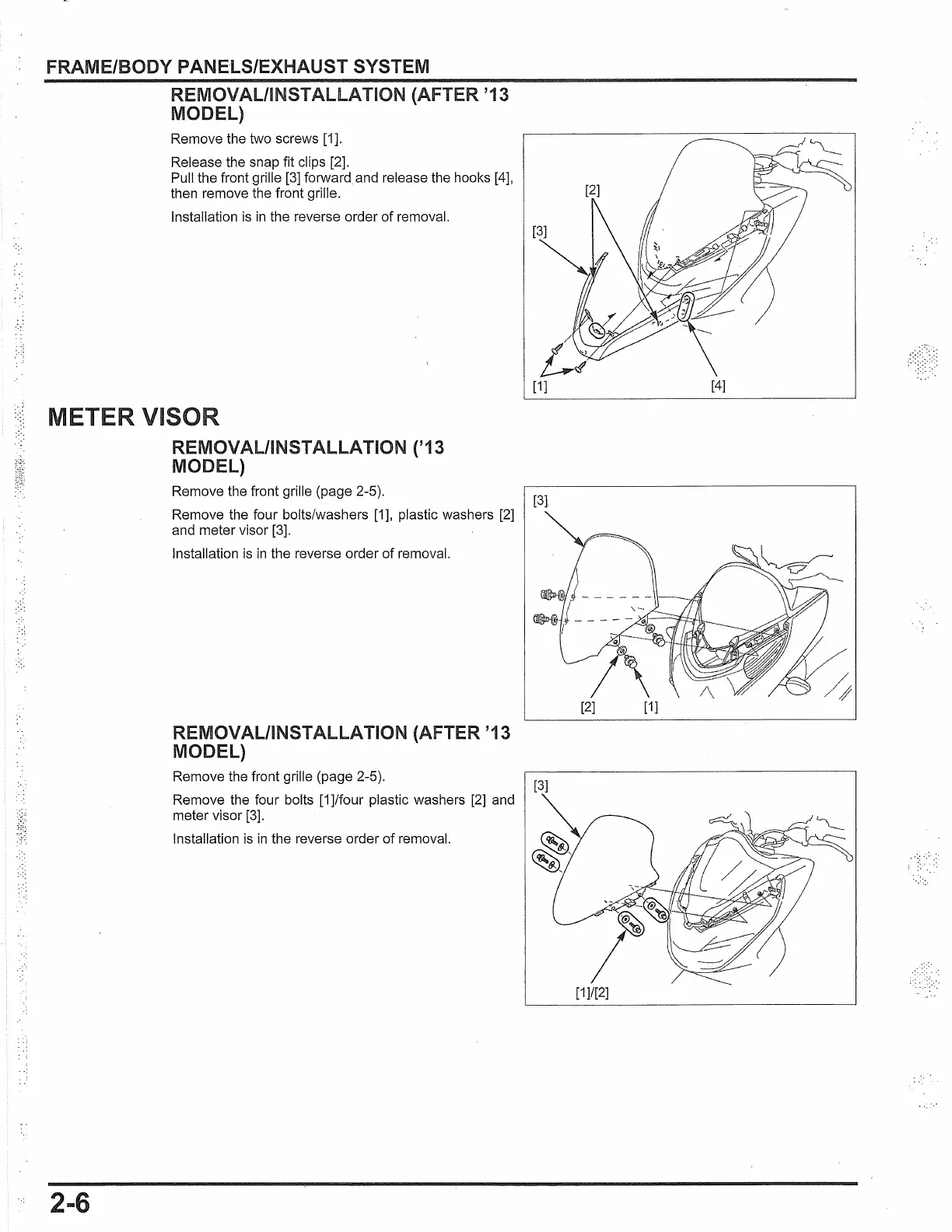

FRAME/BODY PANELS/EXHAUST SYSTEM
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the two screws [1].
Release the snap fit clips [2].
Pull the front grille [3] forward and release the hooks [4],
then remove the front grille.
Installation
is
in
the reverse order
of
removal.
METER VISOR
REMOVAL/INSTALLATION ('13
MODEL)
2-6
Remove the front grille (page 2-5).
Remove the four bolts/washers [1], plastic washers [2]
and meter visor [3].
Installation
is
in
the reverse order
of
removal.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the front grille (page 2-5).
Remove the four bolts [1]/four plastic washers
[2]
and
meter visor [3].
Installation
is
in
the reverse order
of
removal.
[3]
[2]
[1]
