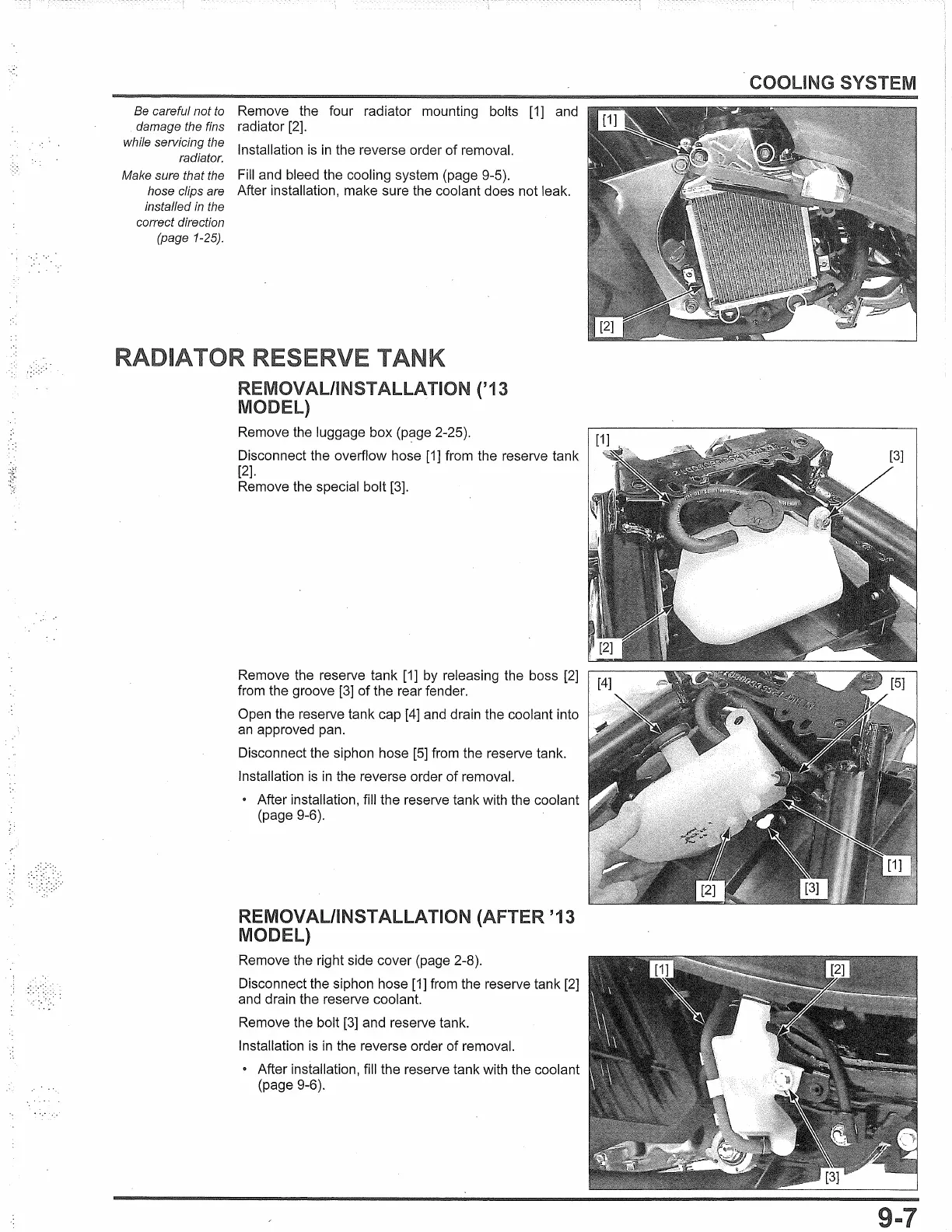

Be careful not to Remove the four radiator mounting bolts [1] and
damage the fins radiator [2].
while servicing the Installation is in the reverse order of removal.
radiator.
Make sure that the
Fill and bleed the cooling system (page 9-5).
hose clips are After installation, make sure the coolant does not leak.
installed in the
correct direction
(page 1-25).
REMOVAL/INSTALLATION ('13
MODEL)
Remove the luggage box (page 2-25).
Disconnect the overflow hose
[1] from the reserve tank
[2].
Remove the special bolt [3].
Remove the reserve tank [1] by releasing the boss
[2]
from the groove [3] of the rear fender.
Open the reserve tank cap [4] and drain the coolant into
an approved pan.
Disconnect the siphon hose
[5] from the reserve tank.
Installation is
in the reverse order of removal.
• After installation, fill the reserve tank with the coolant
(page 9-6).
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the right side cover (page 2-8).
Disconnect the siphon hose
[1] from the reserve tank [2]
and drain the reserve coolant.
Remove the bolt
[3] and reserve tank.
Installation
is in the reverse order of removal.
• After installation, fill the reserve tank with the coolant
(page 9-6).

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
