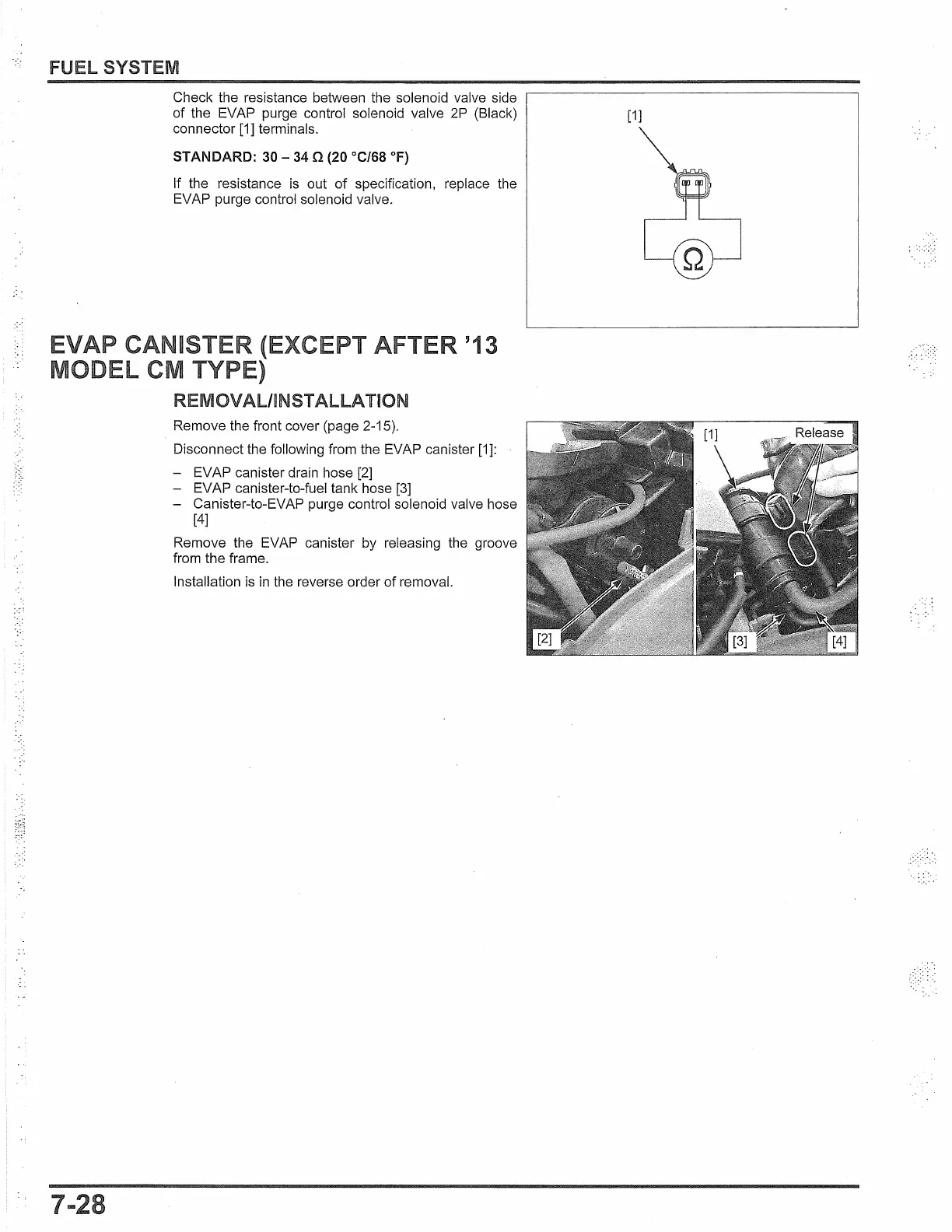

FUEL SYSTEM
Check the resistance between the solenoid valve side
of the EVAP purge control solenoid valve 2P (Black)
connector [1] terminals.
STANDARD: 30 - 34 Q (20 °C/68 °F)
If the resistance is out of specification, replace the
EVAP purge control solenoid valve.
REMOVAL/INSTALLATION
Remove the front cover (page 2-15).
R '13
Disconnect the following from the EVAP canister [1 ]:
- EVAP canister drain hose [2]
- EVAP canister-to-fuel tank hose [3]
- Canister-to-EVAP purge control solenoid valve hose
[4]
Remove the EVAP canister by releasing the groove
from the frame.
Installation is
in the reverse order of removal.
[1]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
