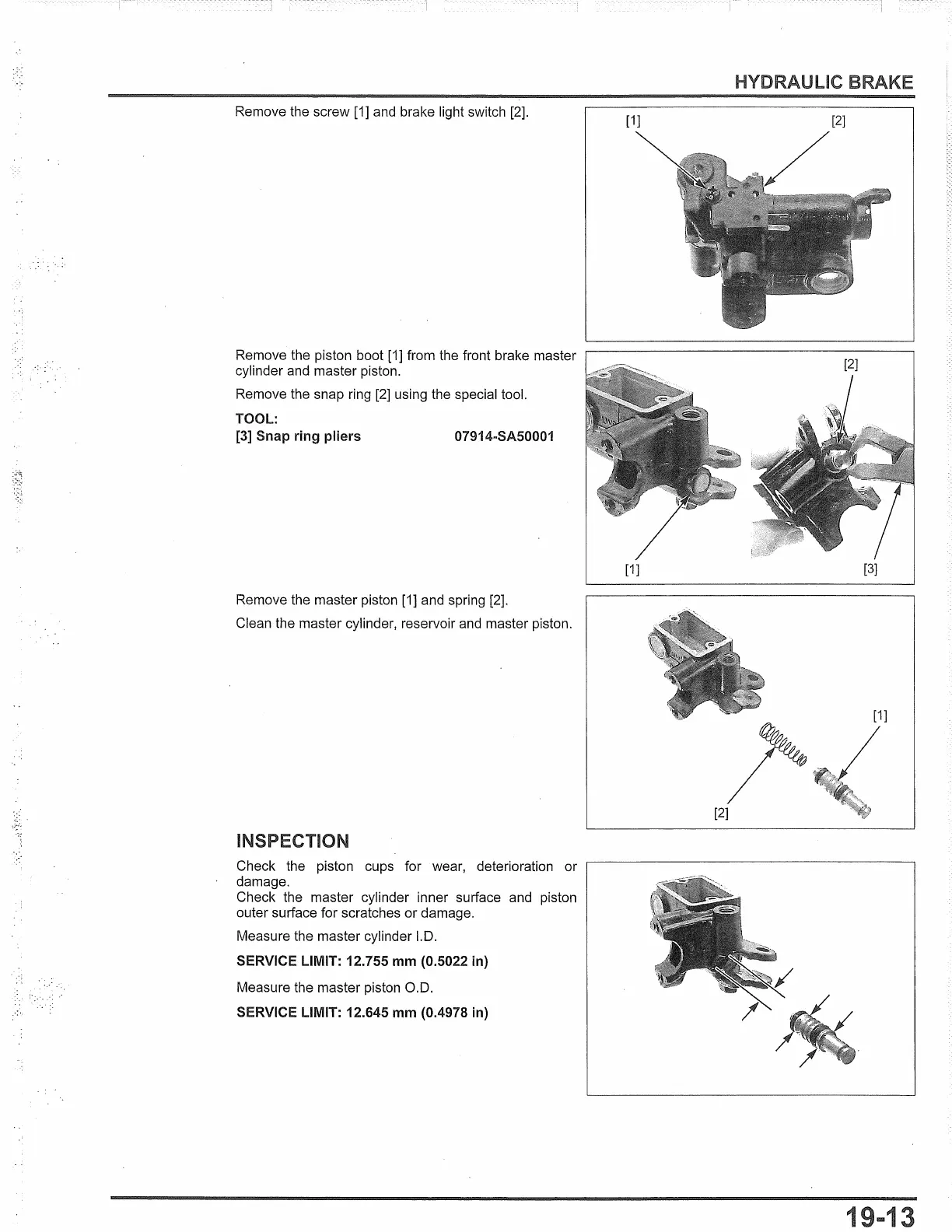

Remove the screw [1] and brake light switch [2].
Remove the piston boot [1] from the front brake master
cylinder and master piston.
Remove the snap ring
[2] using the special tool.
TOOL:
[3] Snap ring pliers
07914-SA50001
Remove the master piston [1] and spring [2].
Clean the master cylinder, reservoir and master piston.
INSPECTION
Check the piston cups for wear, deterioration or
damage.
Check the master cylinder inner surface and piston
outer surface for scratches or damage.
Measure the master cylinder I.D.
SERVICE LIMIT: 12.755 mm (0.5022 in)
Measure the master piston O.D.
SERVICE LIMIT: 12.645 mm (0.4978 in)
HYDRAULIC
[1]
[1]
[3]
[1]
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
