Honda PCX150 2014 User Manual

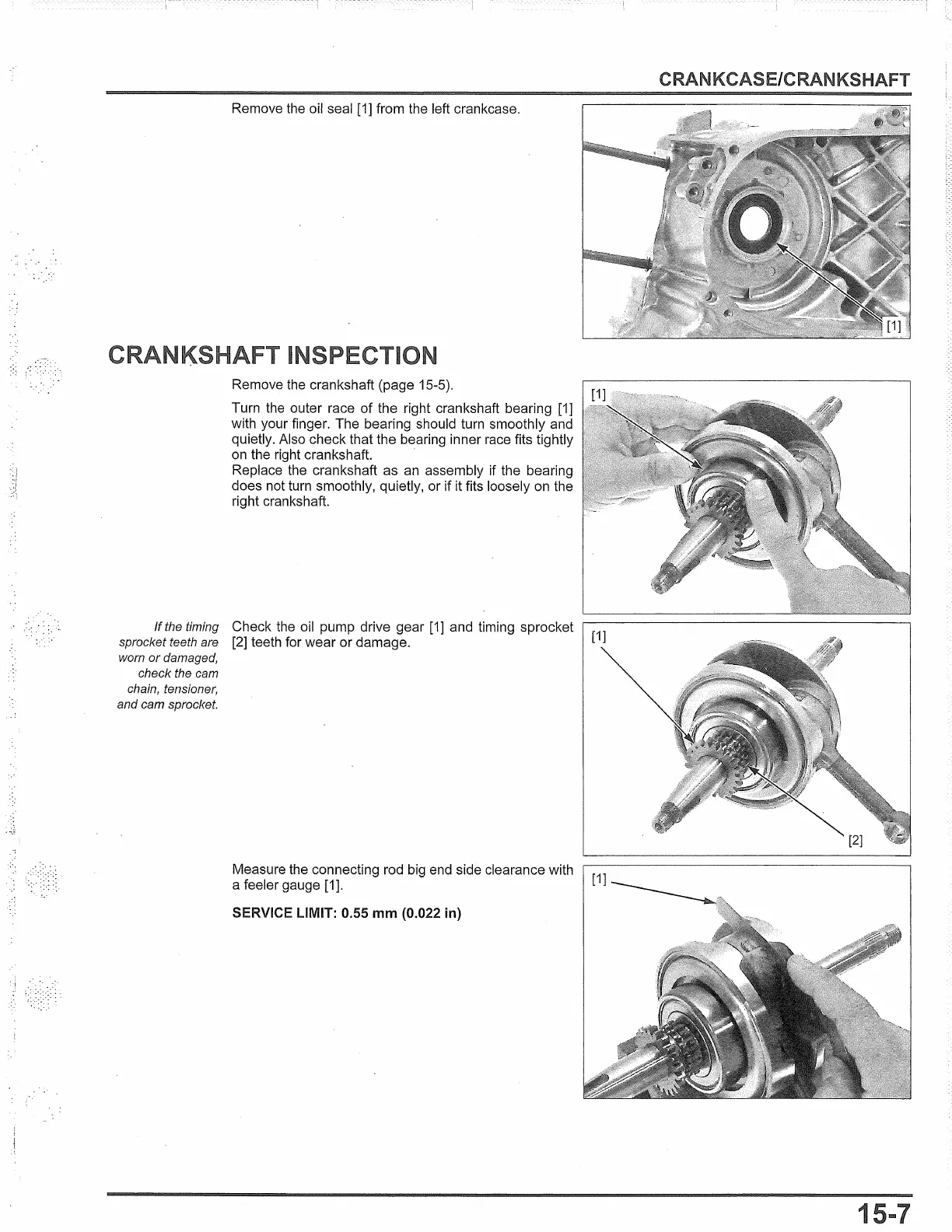

Remove the oil seal
[1]
from the left crankcase.
Remove the crankshaft (page 15-5).
Turn the outer race of the right crankshaft bearing
[1]
with your finger. The bearing should turn smoothly and
quietly. Also check that the bearing inner race fits tightly
on
the right crankshaft. ·
Replace the crankshaft as
an
assembly if the bearing
does not turn smoothly, quietly, or if it fits loosely
on
the
right crankshaft.
If
the timing
Check the oil pump drive gear
[1]
and timing sprocket
sprocket teeth are
[2]
teeth for wear or damage.
worn
or
damaged,
check the cam
chain, tensioner,
and cam sprocket.
Measure the connecting rod big end side clearance with
a feeler gauge [1].
SERVICE LIMIT: 0.55 mm (0.022 in)
CRANKCASE/CRANKSHAFT
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
