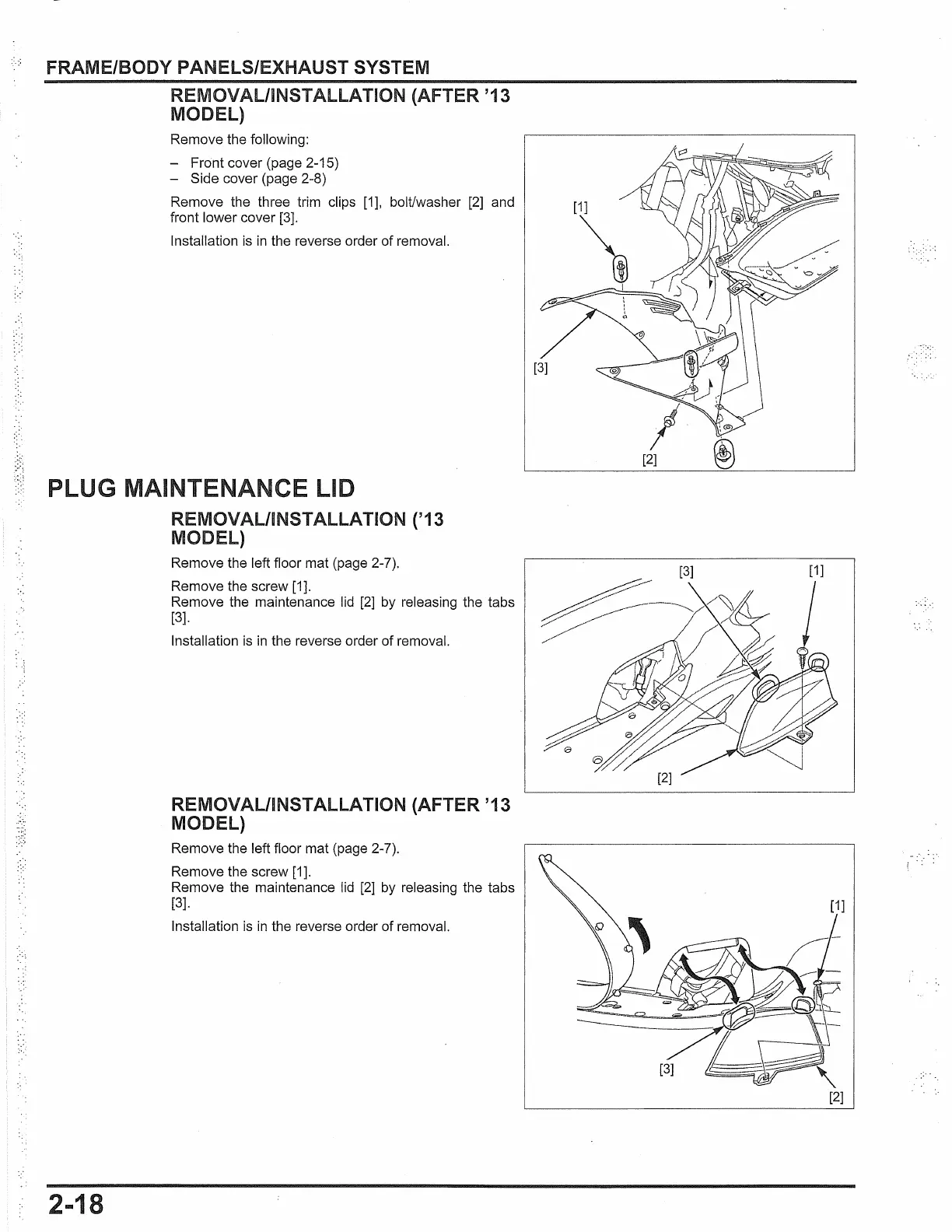

FRAME/BODY PANELS/EXHAUST SYSTEM
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the following:
- Front cover (page 2-15)
- Side cover (page 2-8)
Remove the three trim clips [1], bolt/washer
[2] and
front lower cover [3].
Installation
is in the reverse order of removal.
PLUG MAINTENANCE LID
REMOVAL/INSTALLATION ('13
MODEL)
2-18
Remove the left floor mat (page 2-7).
Remove the screw [1].
Remove the maintenance
lid [2] by releasing the tabs
[3].
Installation is in the reverse order of removal.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the left floor mat (page 2-7).
Remove the screw [1].
Remove the maintenance
lid [2] by releasing the tabs
[3].
Installation is in the reverse order of removal.
[2]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
