Honda PCX150 2014 User Manual

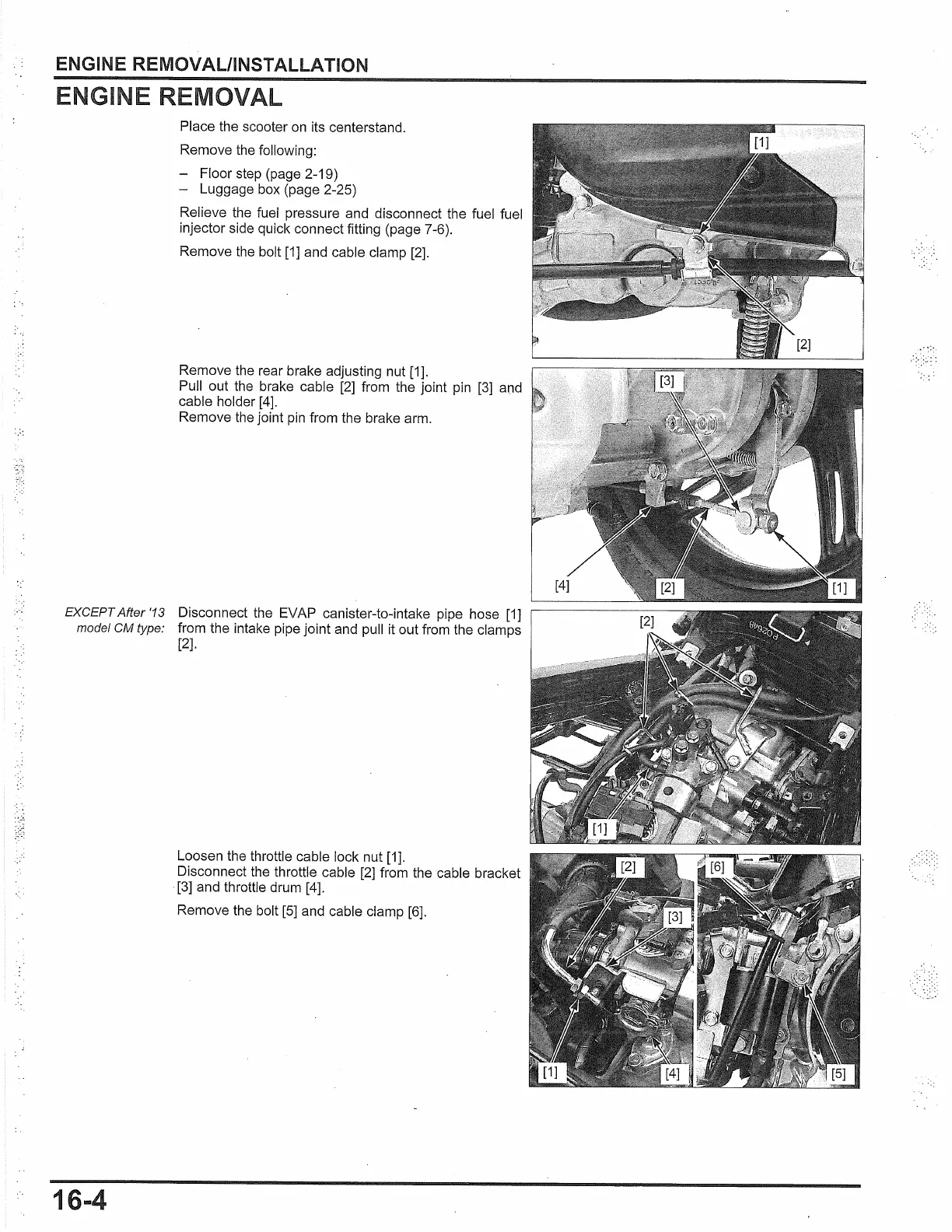

ENGINE REMOVAL/INSTALLATION
ENGINE REMOVAL
Place the scooter
on
its centerstand.
Remove the following:
- Floor step (page 2-19)
- Luggage box (page 2-25)
Relieve the fuel pressure and disconnect the fuel fuel
injector side quick connect fitting (page 7-6).
Remove the bolt [1] and cable clamp
[2].
Remove the rear brake adjusting nut [1].
Pull out the brake cable
[2]
from the joint
pin
[3]
and
cable holder
[4].
Remove the joint pin from the brake arm.
EXCEPT
After
'13
Disconnect the EVAP canister-to-intake pipe hose
[1]
model
CM
type:
from the intake pipe joint and pull it out from the clamps
[2].
Loosen the throttle cable lock nut [1].
Disconnect the throttle cable [2] from the cable bracket
· [3] and throttle drum [4].
Remove the bolt
[5]
and cable clamp [6].
16-4

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
