FUEL SYSTEM
FU
L LINE I SPECTION
7-6

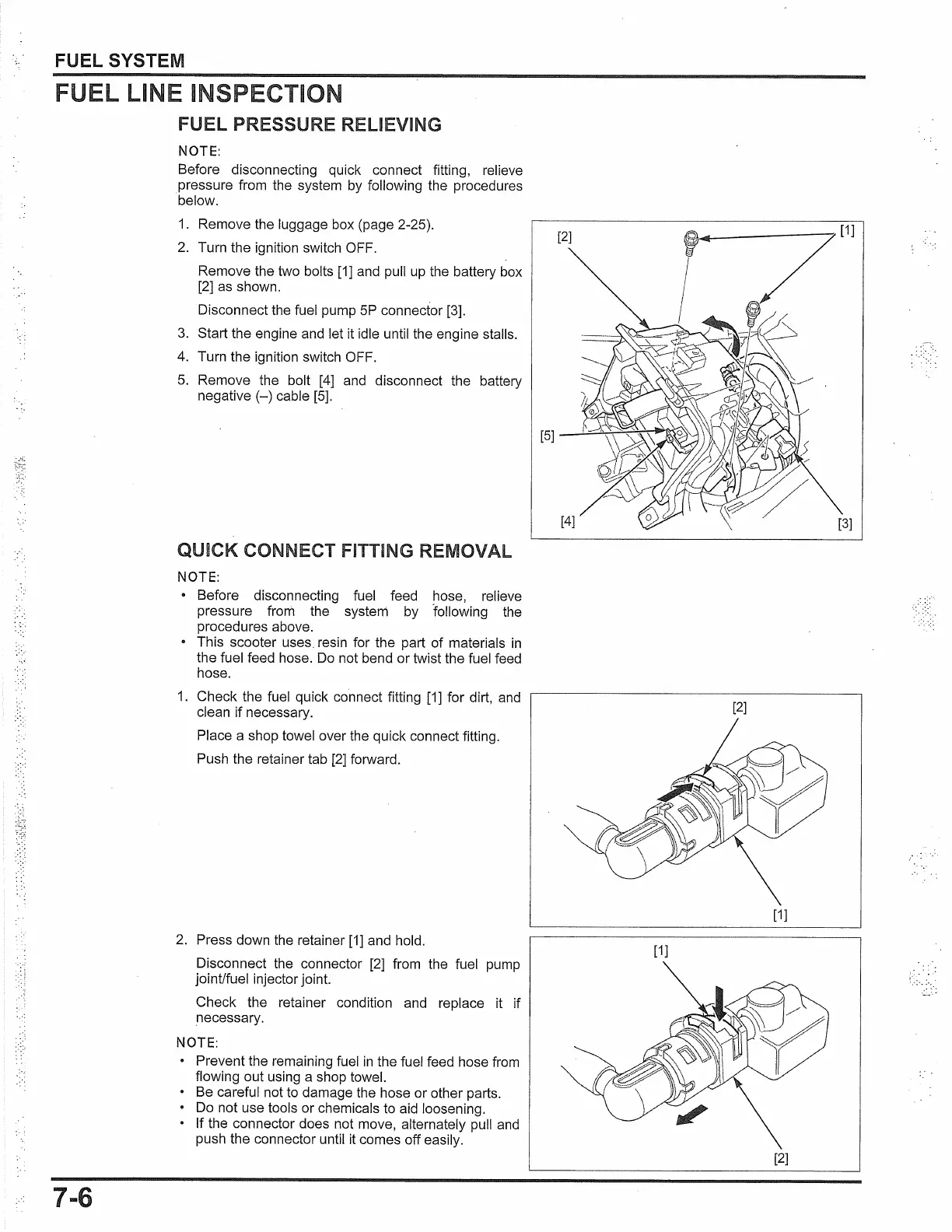

FUEL PRESSURE RELIEVING
NOTE:
Before disconnecting quick connect fitting, relieve
pressure from the system
by
following the procedures
below.
1.
Remove the luggage box (page 2-25).
2.
Turn the ignition switch OFF.
Remove the two bolts
[1]
and pull
up
the battery box
[2]
as
shown.
Disconnect the fuel pump
5P
connector [3].
3.
Start the engine and let it idle until the engine stalls.
4. Turn the ignition switch OFF.
5.
Remove the bolt
[4]
and disconnect the battery
negative(-)
cable
[5].
QUICK CONNECT FITTING REMOVAL
NOTE:
• Before disconnecting fuel feed hose, relieve
pressure from the system by following the
procedures above.
• This scooter uses. resin for the part of materials
in
the fuel feed hose.
Do
not bend or twist the fuel feed
hose.
1.
Check the fuel quick connect fitting
[1]
for dirt,
and
clean if necessary.
Place a shop towel over the quick connect fitting.
Push the retainer tab
[2]
forward.
2.
Press down the retainer
[1]
and hold.
Disconnect the connector
[2]
from the fuel pump
joint/fuel injector joint.
Check the retainer condition
and
replace it if
_necessary.
NOTE:
Prevent the remaining fuel
in
the fuel feed hose from
flowing out using a shop towel.
• Be careful not
to
damage the hose or other parts.
•
Do
not use tools or chemicals
to
aid
loosening.
• If the connector does not move, alternately pull
and
push the connector until it comes off easily.
[2]
[1]
[1]
[2]
To Next Page
