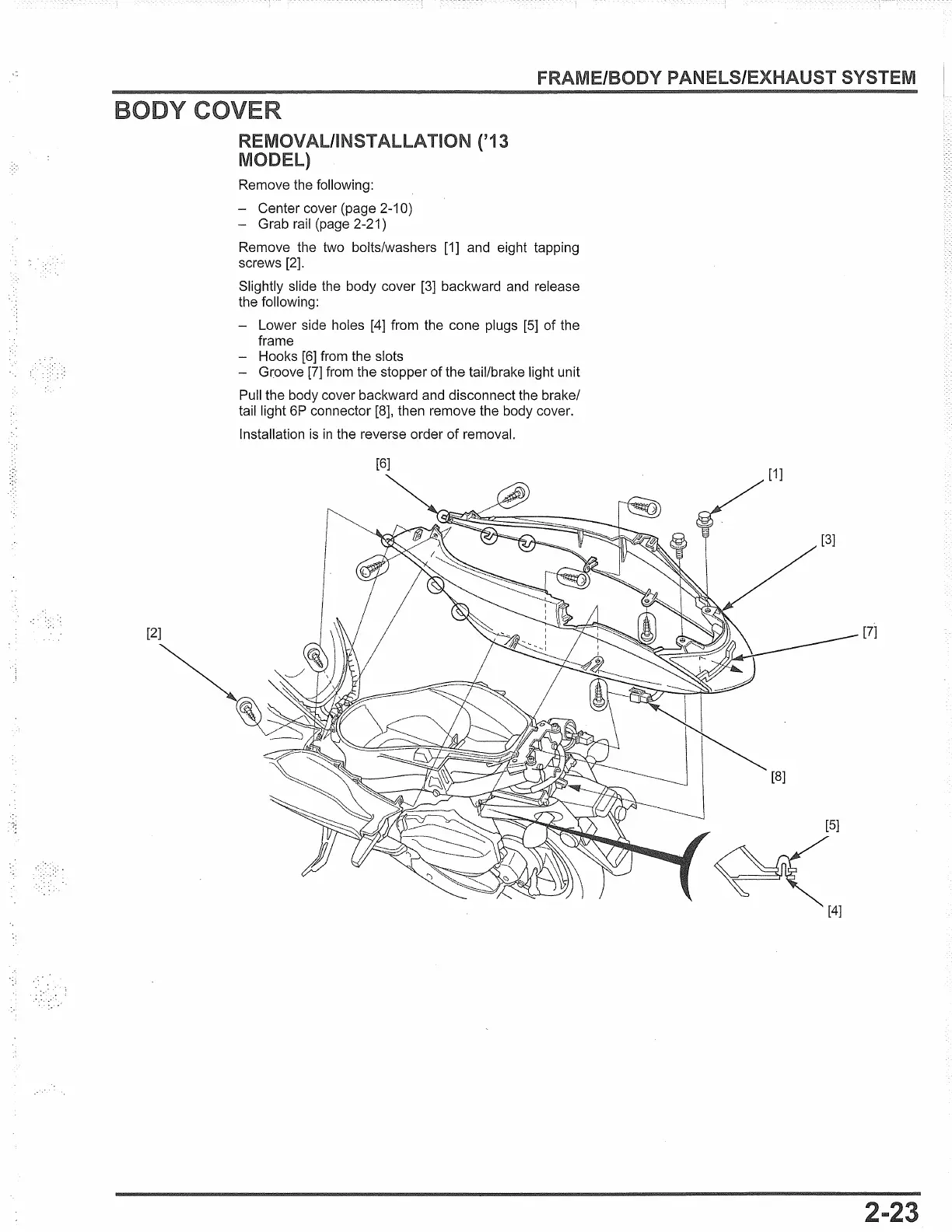

REMOVAL/INSTALLATION ('13

MODEL)

Remove the following:

- Center cover (page 2-10)

- Grab rail (page 2-21)

Remove the two bolts/washers

[1]

and eight tapping

screws [2].

Slightly slide the body cover

[3]

backward

and

release

the following:

- Lower side holes

[4]

from the cone plugs

[5]

of the

frame

- Hooks

[6]

from the slots

- Groove

[7]

from the stopper of the tail/brake light unit

Pull the body cover backward and disconnect the brake/

tail light

connector [8], then remove the body cover.

Installation

the reverse order

removal.

PANELS/EXHAUST SYSTEM

[7]

Questions and Answers:

Need help?

Do you have a question about the Honda PCX150 2014 and is the answer not in the manual?

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
