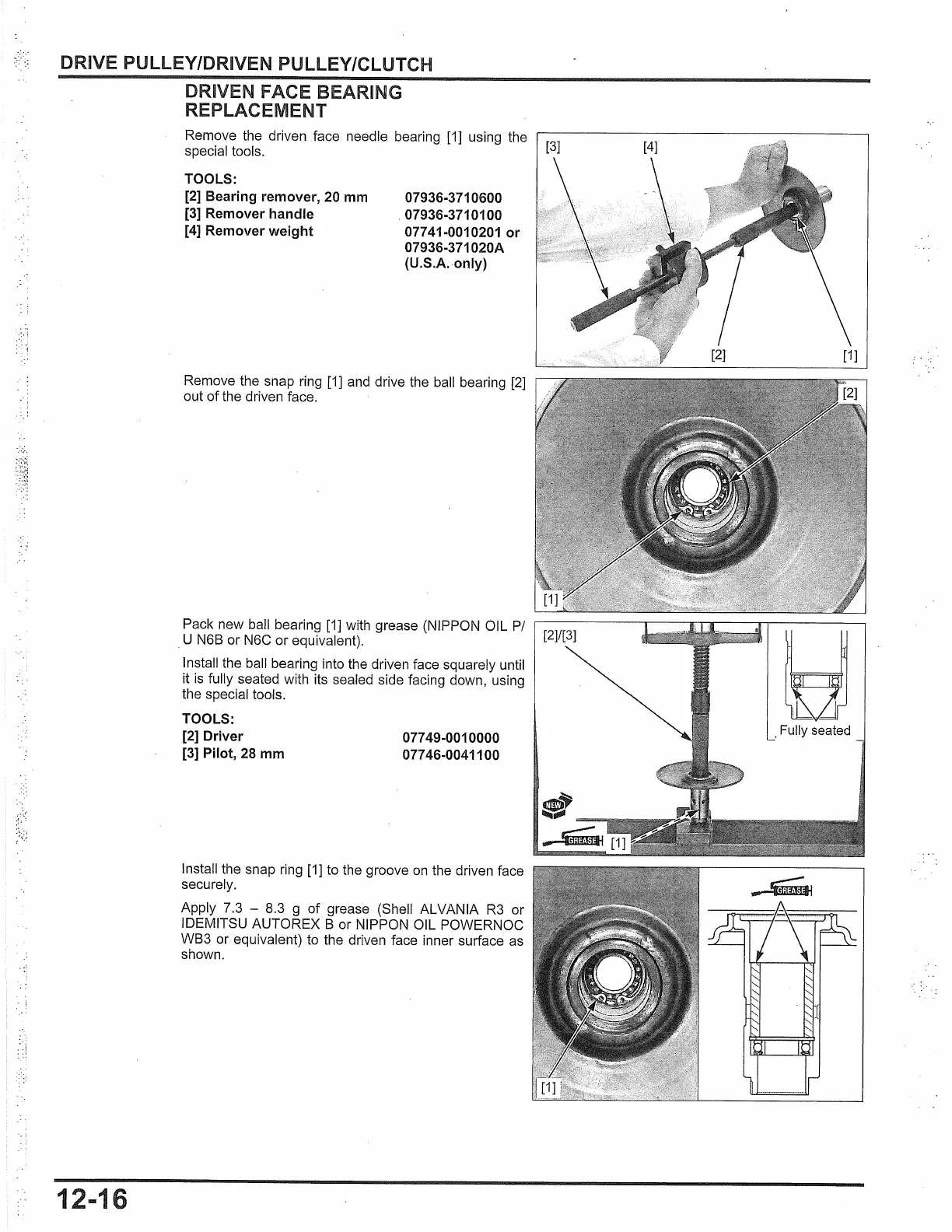

Honda PCX150 2014 User Manual

DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
12-16
DRIVEN FACE BEARING
REPLACEMENT
Remove the driven face needle bearing
[1]
using the
special tools.
TOOLS:
[2] Bearing remover, 20 mm
[3]
Remover handle
[4]
Remover weight
07936-3710600
07936-3710100
07741-0010201
or
07936-371020A
(U.S.A. only)
Remove the snap ring
[1]
and drive the ball bearing
[2]
out of the driven face.
Pack new ball bearing [1] with grease (NIPPON OIL
P/
. U N6B or N6C or equivalent).
Install the ball bearing into the driven face squarely until
it
is
fully seated with its sealed side facing down, using
the special tools.
TOOLS:
[2]
Driver
[3] Pilot, 28 mm
07749-0010000
077 46-0041100
Install the snap ring
[1]
to the groove
on
the driven face
securely.
Apply 7.3 - 8.3 g of grease (Shell ALVANIA
R3
or
IDEMITSU AUTOREX B or NIPPON OIL POWERNOC
WB3 or equivalent) to the driven face inner surface
as
shown.
. Fully
seated
