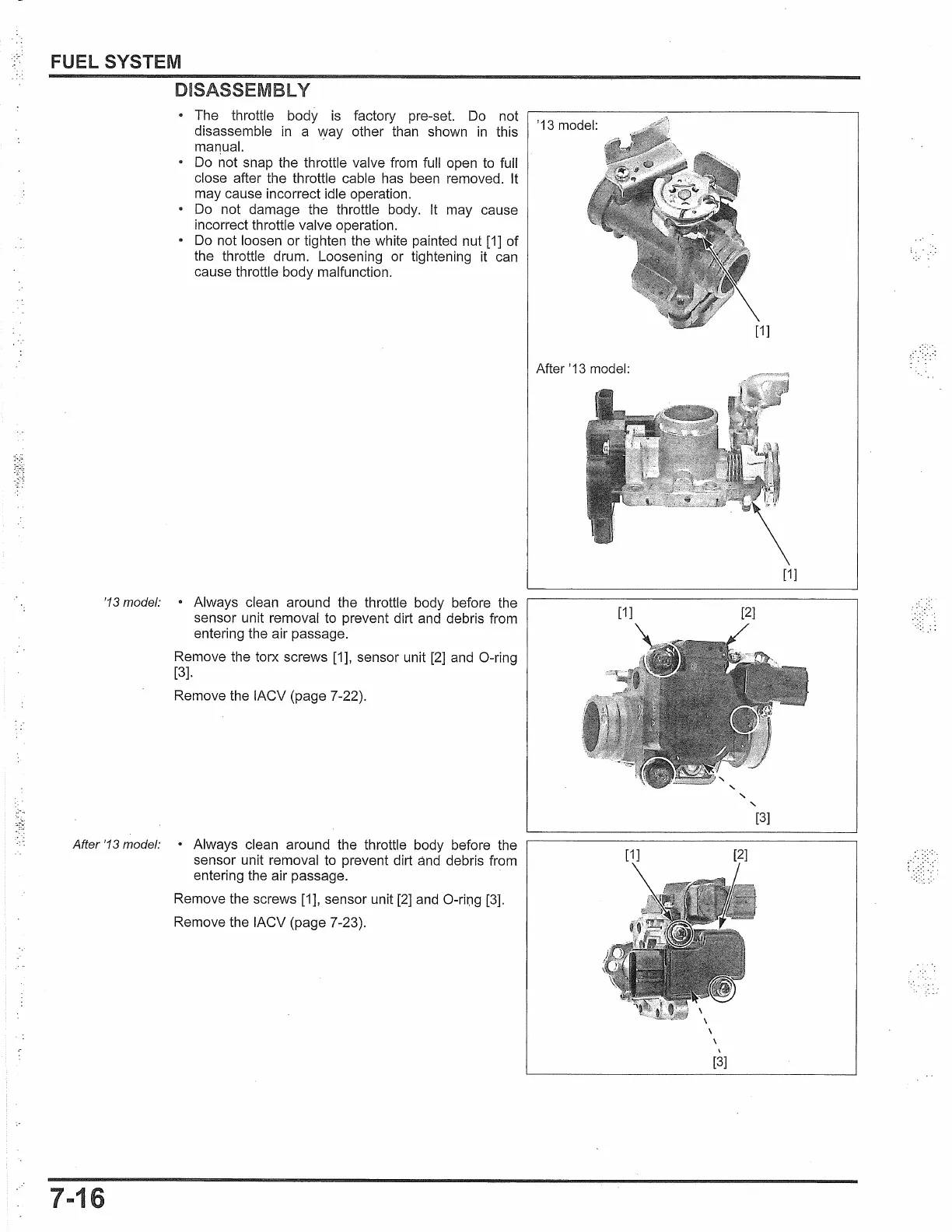

FUEL SYSTEM
DISASSEMBLY
The throttle body
is
factory pre-set.
Do
not
disassemble
in
a way other than shown
in
this
mariual. ·
•
Do
not snap the throttle valve from full open
to
full
close after the throttle cable has been removed. It
may cause incorrect idle operation.
•
Do
not damage the throttle body. It may cause
incorrect throttle valve operation.
•
Do
not loosen or tighten the white painted nut
[1]
of
the throttle drum. Loosening or tightening it can
cause throttle body malfunction.
'13 model:
Always clean around the throttle body before the
sensor unit removal to prevent dirt and debris from
entering the air passage.
Remove the torx screws [1], sensor unit
[2]
and 0-ring
[3].
Remove the IACV (page 7-22).
After '13 model: •
Always clean around the throttle body before the
7-1
sensor unit removal to prevent dirt
and
debris from
entering the air passage.
Remove the screws [1], sensor unit
[2]
and 0-rir:ig [3].
Remove the IACV (page 7-23).
'13 model:
After '13 model:
[1]
[1]
\
[3]
[2]
'
'
[2]
[1]
[3]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
