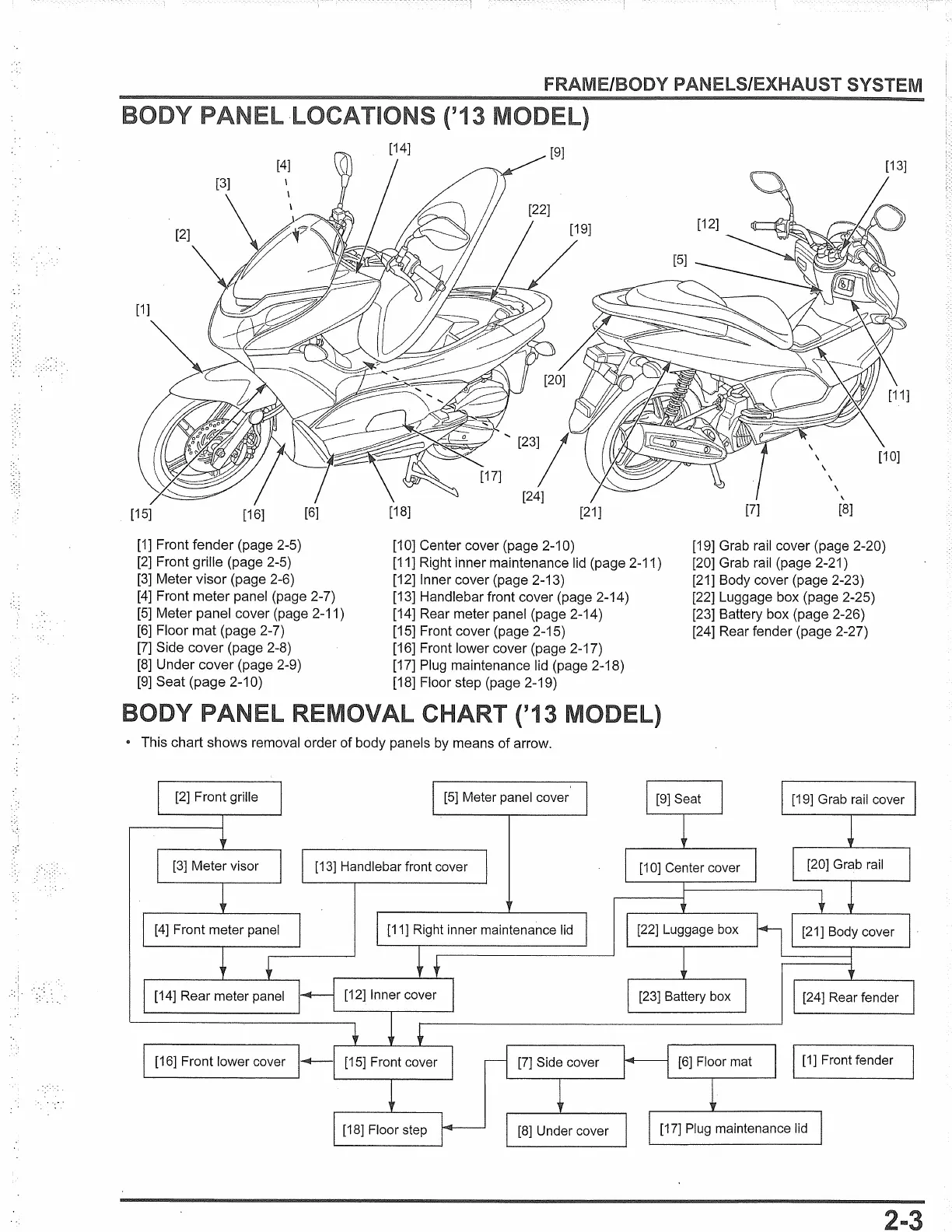

PANEL~EXHAUSTSYSTEM
[1
O]
Center cover (page 2-10)
[1]
Front
fender
(page 2-5)
[2] Front grille (page 2-5)
[3] Meter visor (page 2-6)
[11] Right inner maintenance lid (page 2-11)
[12] Inner cover (page 2-13)
[19] Grab rail cover (page 2-20)
[20] Grab rail (page 2-21)
[21] Body cover (page 2-23)
[22] Luggage box (page 2-25)
[23] Battery box (page 2-26)
[24] Rear fender (page 2-27)
[4] Front
meter
panel (page 2-7)
[5]
Meter panel cover (page 2-11)
[6] Floor
mat
(page 2-7)
[7]
Side cover (page 2-8)
[8]
Under cover (page 2-9)
[9]
Seat (page 2-10)
[13] Handlebar front cover (page 2-14)
[14] Rear meter panel (page 2-14)
[15] Front cover (page 2-15)
[16] Front lower cover (page 2-17)
[17] Plug maintenance lid (page 2-18)
[18] Floor step (page 2-19)
('13
• This chart shows removal order of body panels by means
of
arrow.
[2] Front grille
[5]
Meter panel cover
[3] Meter visor
[13] Handlebar front cover
[4]
Front meter panel
[11] Right inner maintenance
lid
[14] Rear meter panel
[12] Inner cover
[16] Front lower cover
~
[15] Front cover
[7]
Side cover
[18]
Floor step
[8] Under cover
[9]
Seat [19] Grab
rail
cover
[1
O]
Center cover
[20] Grab
rail
[22] Luggage
box
[21] Body cover
[23] Battery box
[24] Rear fender
[6]
Floor mat
[1] Front fender
[17]
Plug
maintenance
lid
To Next Page
