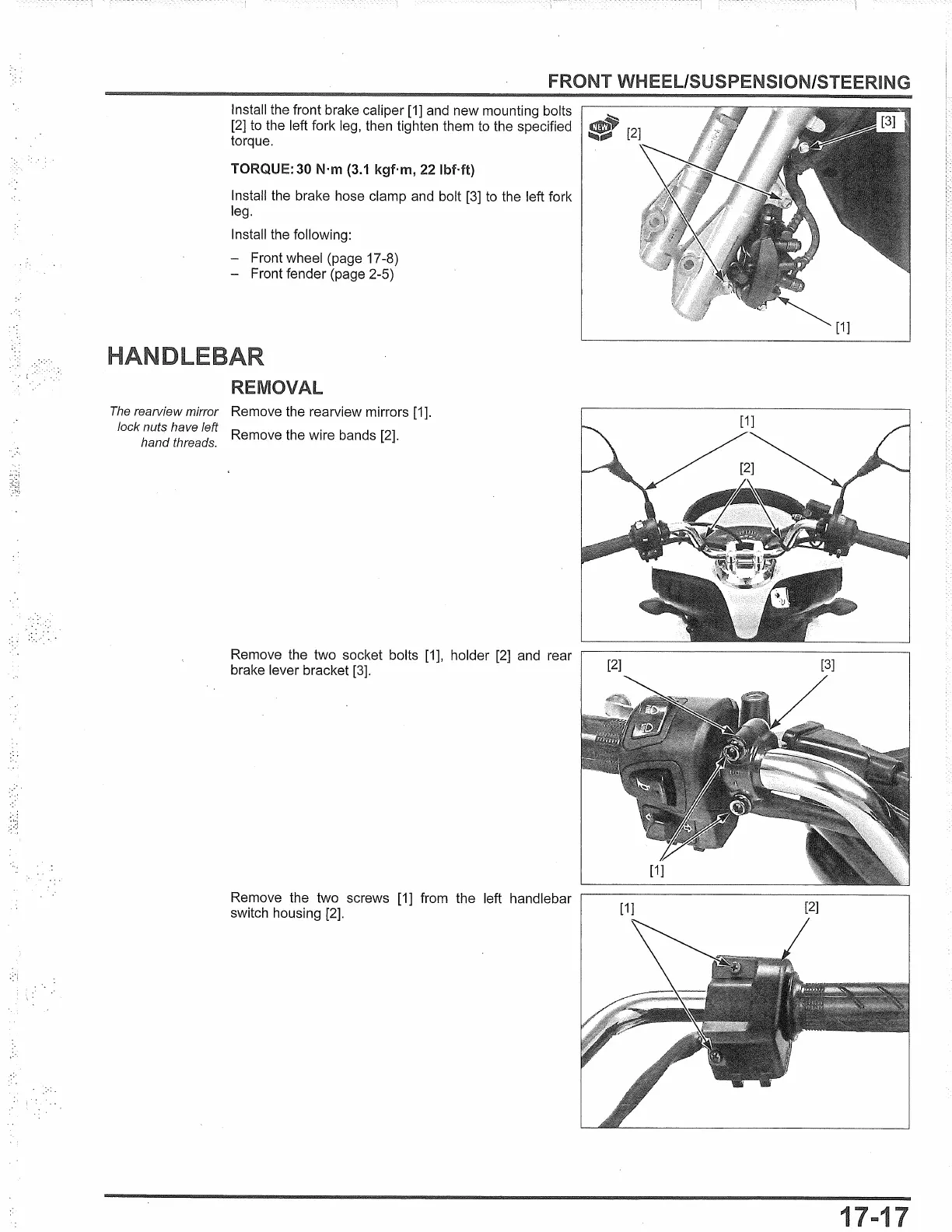

FRONT WHEEL/SUSPENSION/STEERING
Install the front brake caliper
[1]
and new mounting bolts
[2]
to
the left fork leg, then tighten them
to
the specified
torque.
TORQUE:30 N·m
(3.1
kgf·m, 22 lbMt)
Install the brake hose clamp and bolt
[3]
to
the left fork
leg.
Install the following:
- Front wheel (page 17-8)
- Front fender (page 2-5)
REMOVAL
The
rearview mirror
Remove the rearview mirrors [1].
lock nuts have left
hand
threads.
Remove the wire bands [2].
Remove the two socket bolts [1], holder
[2]
and rear
brake lever bracket [3].
Remove the two screws [1] from the left handlebar
switch housing [2].
[2]
[3]
[1]
[2]
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
