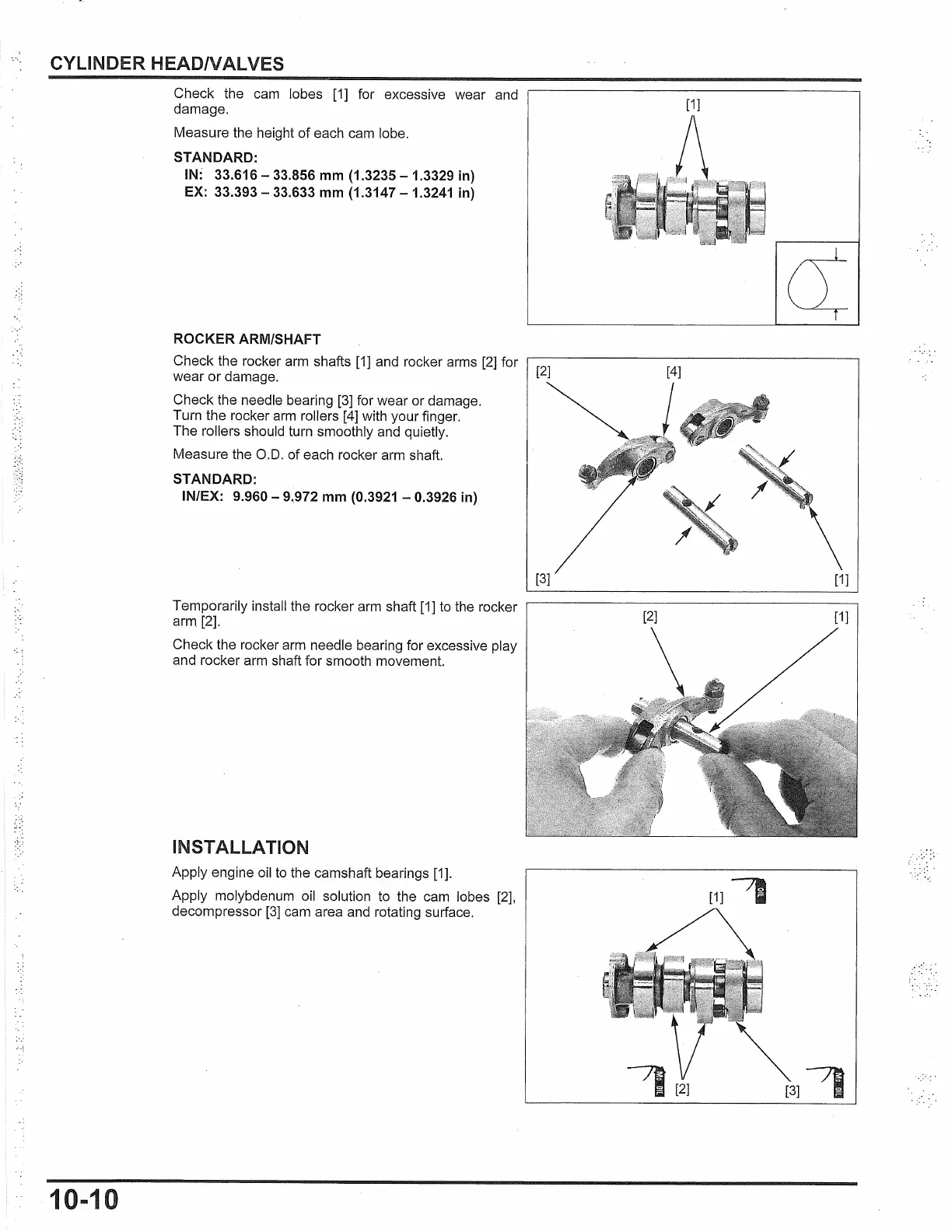

CYLINDER
HEAD/VALVES
10-10
Check the cam lobes [1] for excessive wear and
damage.
Measure the height
of
each cam lobe.
STANDARD:
IN: 33.616 - 33.856 mm (1.3235 - 1.3329 in)
EX: 33.393 - 33.633 mm (1.3147 - 1.3241 in)
ROCKER ARM/SHAFT
Check the rocker arm shafts [1] and rocker arms [2] for
wear
or
damage.
Check the needle bearing [3] for wear or damage.
Turn the rocker arm rollers [4] with your finger.
The rollers should turn smoothly and quietly.
Measure the
0.0.
of each rocker arm shaft.
STANDARD:
IN/EX: 9.960 - 9.972 mm (0.3921 - 0.3926 in)
Temporarily install the rocker arm shaft [1] to the rocker
arm [2].
Check the rocker arm needle bearing for excessive play
and rocker arm shaft for smooth movement.
INST
ALLA
Tl ON
Apply engine oil
to
the camshaft bearings [1].
Apply molybdenum oil solution to the cam lobes [2],
decompressor
[3]
cam area and rotating surface.
[1]
[2]
[4]
[3]
[1]
[2]
[1]
[1]
-"71
-,
[2]
[3]-,
